ELECTRICAL CONNECTIONS
56 SOFAR 1100...3300TL-G3
Pin
Colour
Function
1
White and orange
DRM1/5
2
Orange
DRM2/6
3
White and green
DRM3/7
4
Blue
DRM4/8
5
White and blue
RefGen
6
Green
DRM0
7
White and brown
Pin 7 & pin 8 (internally
short-circuited)
8
Brown
Note: Supported DRM commands: DRM0, DRM5, DRM6, DRM7,
DRM8.
Logic interface for VDE-AR-N 4105:2018-11
This function serves to control and/or limit the output power of the
inverter.

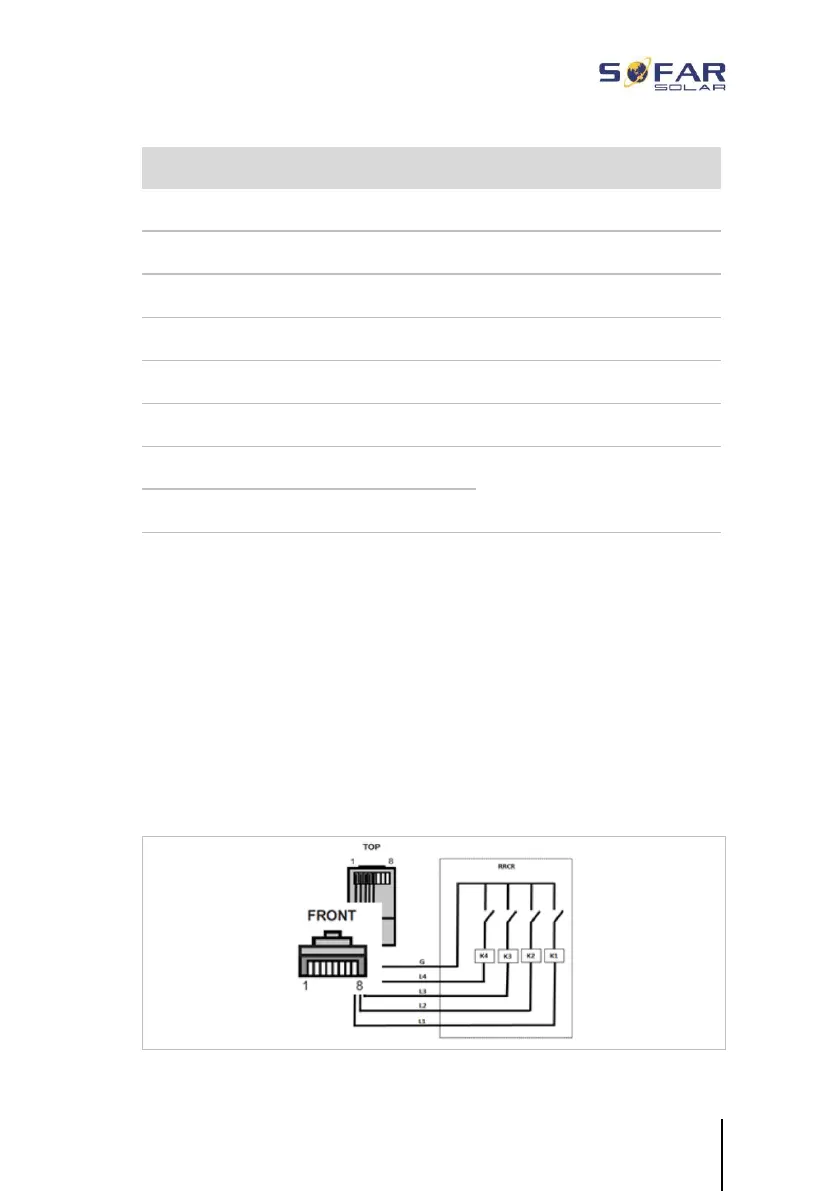

The inverter can be connected to a radio ripple control receiver in
order to dynamically limit the output power of all inverters within the
system.
