ELECTRICAL CONNECTIONS
SOFAR 1100...3300TL-G3 57
The inverter is preconfigured on the following power levels
Pin
Name
Inverter
Radio ripple control
receiver
1
L1
Relay 1 input
K1 - output relay 1
2
L2
Relay 2 input
K2 - output relay 2
3
L3
Relay 3 input
K3 - output relay 3
4
L4
Relay 4 input
K4 - output relay 4
5
G
Earth
Relay, common earth
Relay status: Closing is 1, opening is 0
L1
L2
L3
L4
Active power
Cos (φ)
1
0
0
1
0%
1
0
1
0
0
30%
1
0
0
1
0
60%
1
0
0
0
0
100%
1

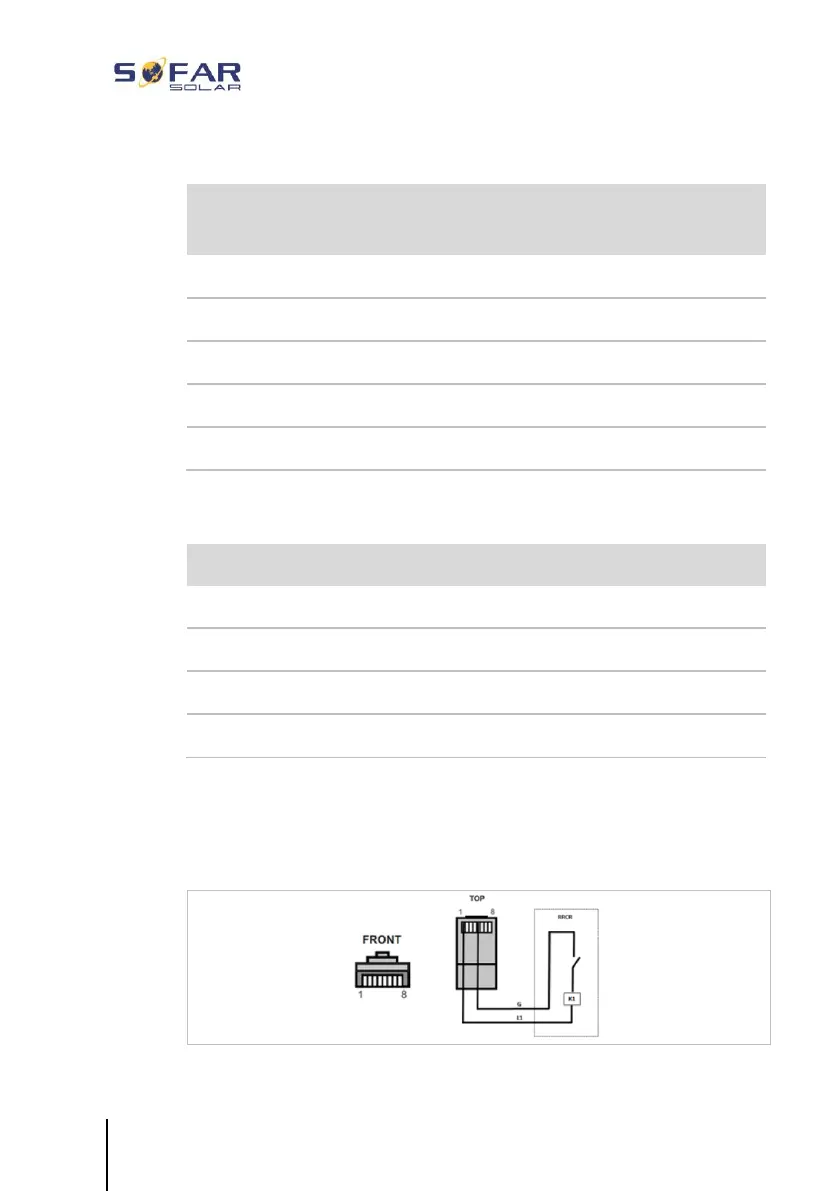

Logic interface for EN50549-1:2019
The active power output can be ended within five seconds following a
command to the input interface.
