Wiring Procedure as following:

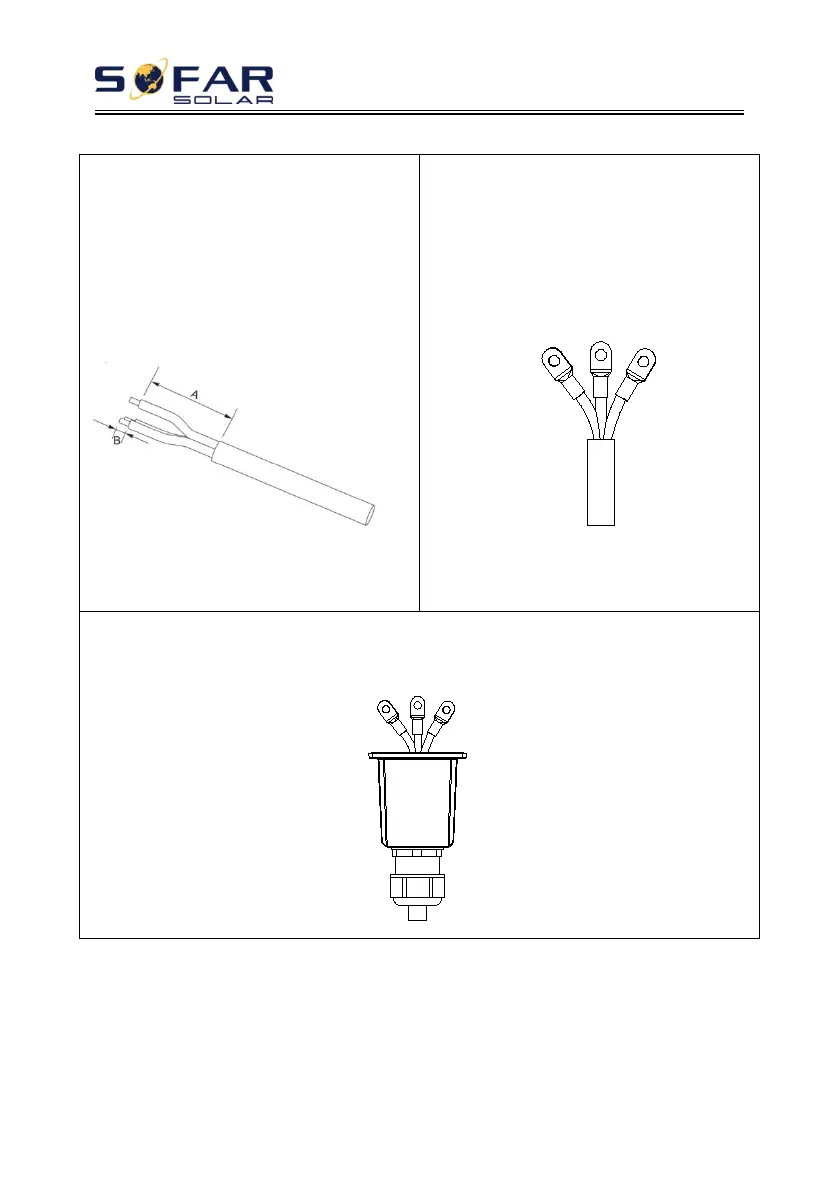

Step 1 Select appropriate cables
according to Table 4-2, Remove the
insulation layer of the AC output cable
using a wire stripper according to the
figure shown below: A:15-25mm
B:6~8mm
Step 2 Use press pliers TO press the
TO terminal and the cable. The TO
terminal is covered with insulating
bushings. The terminals should not be
exposed.
Step 3 Disassemble the AC cover as shown below and run the cable through the
PG connector and AC cover.
