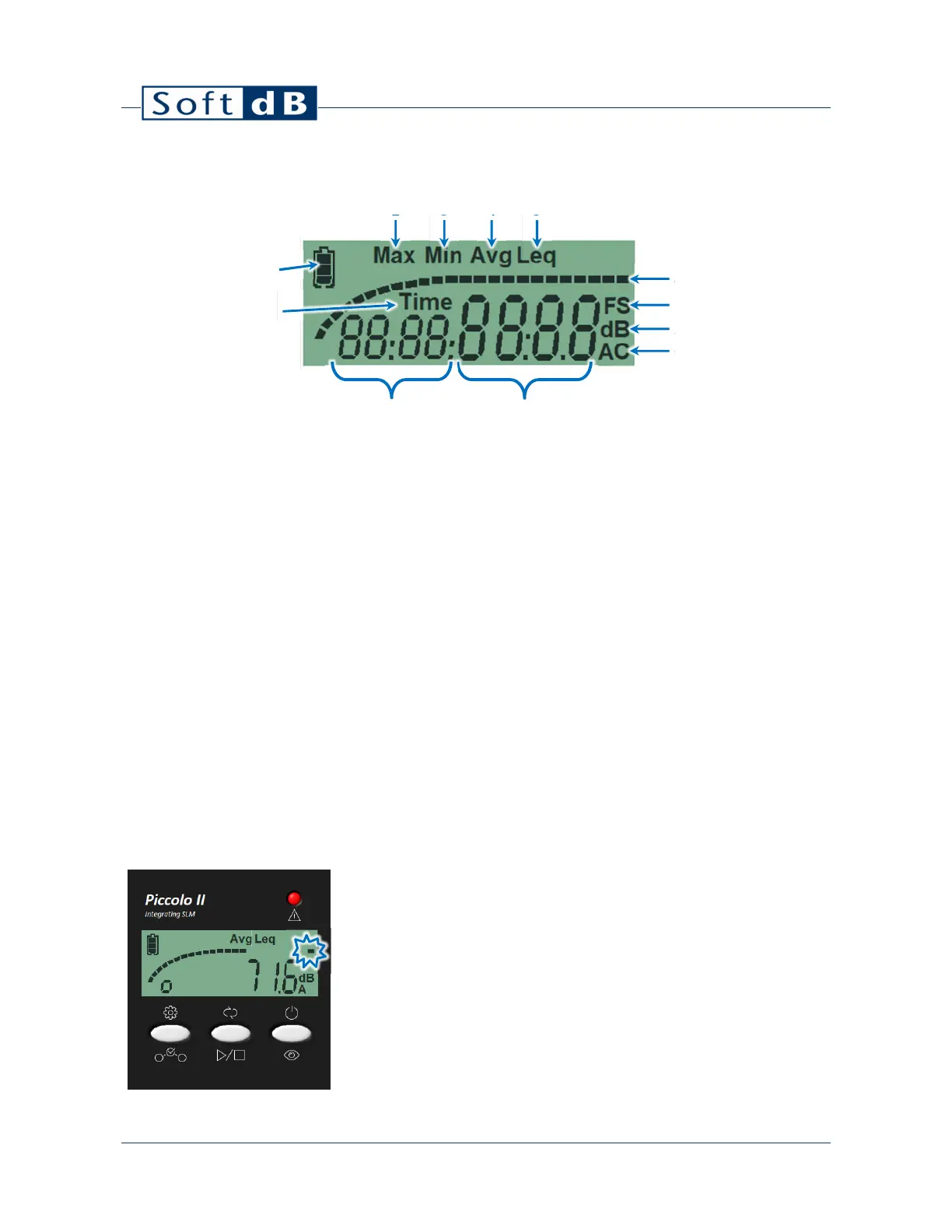

2.5 Display Screen
1) Battery Level (contour blinking when charging)
2) Maximum Sound Pressure Level (SPL) Label
3) Minimum SPL Label
4) Average in progress (blinking)
5) Equivalent Level Label (Leq)
6) Live SPL Bar Graph (Right-most segment blinking on Under-Range, Left-most segment
blinking on Over-Load)
7) SPL Time-Weight Label (Fast or Slow)
8) dB Unit Label
9) Frequency Weighting Label (A, C or Z)
10) Sound Level (Leq, Live SPL, Lmax, Lmin, SEL, Lpeak);
Record Number;
Elapsed Time (mm:ss);
Overload (- or 1);
Battery %.
11) Additional Label: SPL, SEL, PEA (Lpeak), rEC (Record number), bAtt (Battery);
Under-Range (- or 1);
12) Time Label: visible when displaying Elapsed Time.
2.6 Overload Indication
The overload LED will blink for 1s when an overload occurs. If the overload occurs
during a measurement, the right-most segment of the SPL Bar Graph will blink. This
segment will keep blinking until another measurement is performed.
The overload threshold is set 1 dB below the upper limit of the dynamic range.
