Paramount MX User Guide
130 | Page

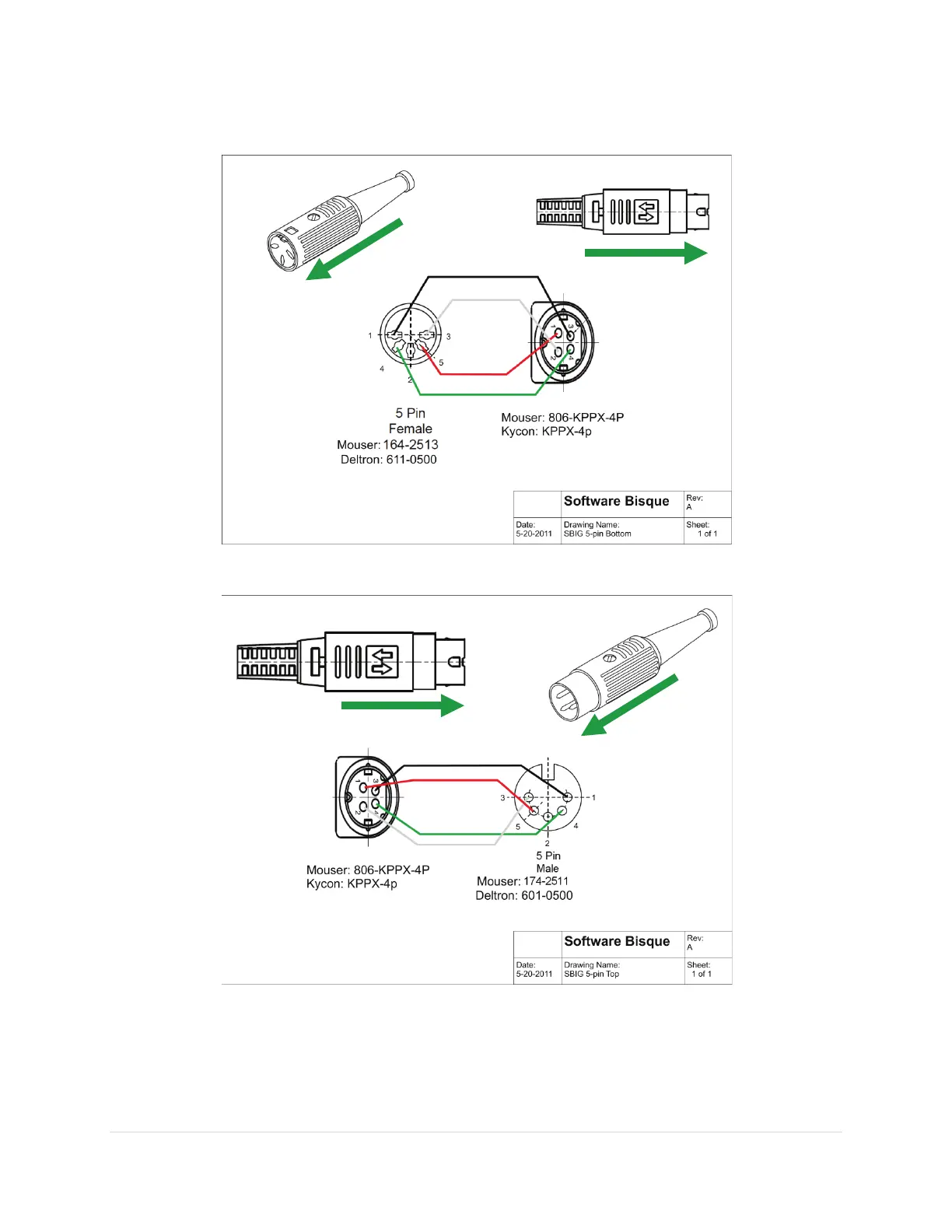

Figure 74: 5-pin SBIG ST-7 type power connectors on the 36-inch (91 cm) bottom cable.
Figure 75: 5-pin SBIG ST-7 type power connectors on the 36-inch (91 cm) top cable.
To External
Power connector
(input)
To camera
power supply
To camera head
To External Power connector (output)
