Paramount MX User Guide
131 | Page

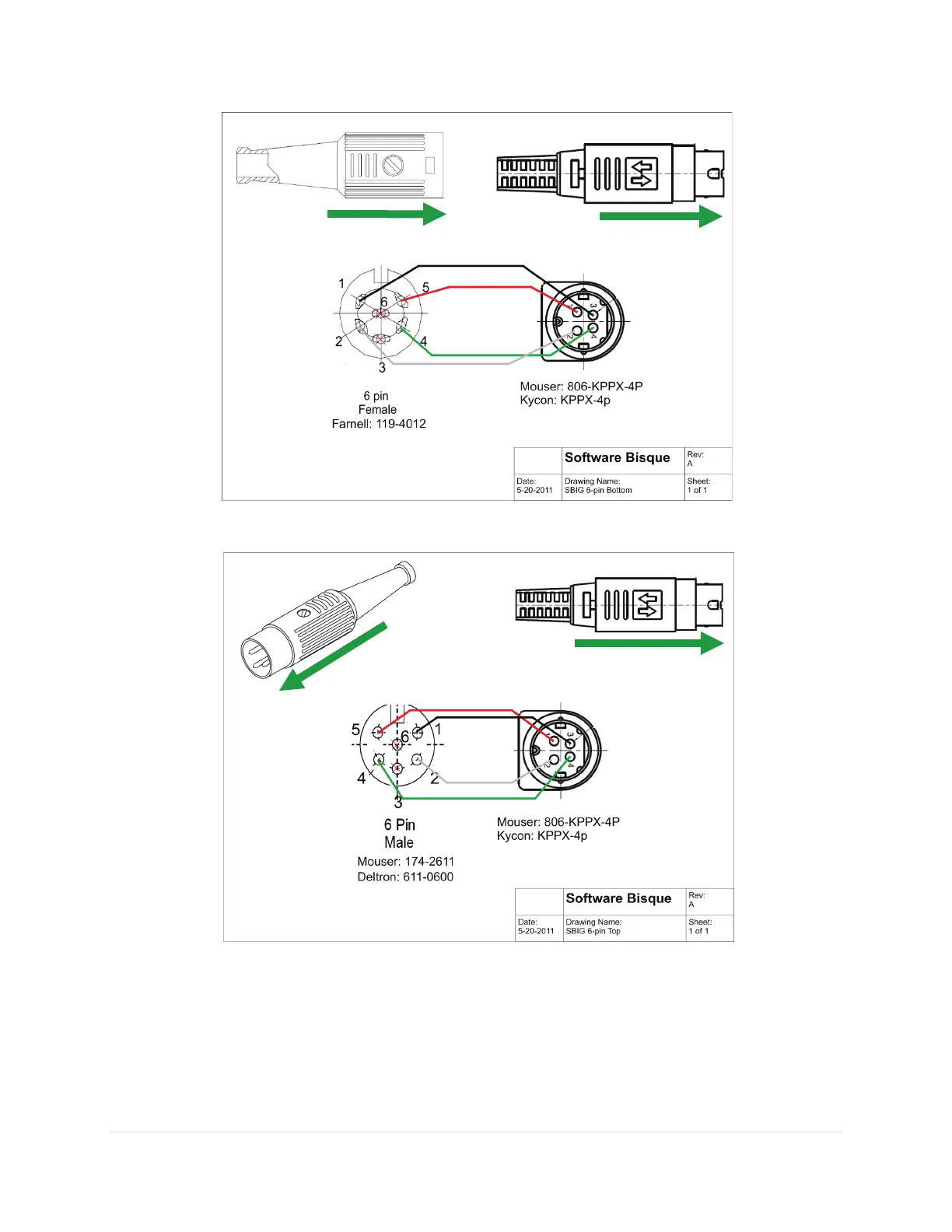

Figure 76: 6-pin SBIG STL type power connectors on the 36-inch (91 cm) bottom cable.
Figure 77: 6-pin SBIG STL type power connectors on the 36-inch (91 cm) top cable.
SBIG STL Series (6-Pin) External Power Cable Specs
Figure 76 shows the wiring specifications for the SBIG STL series 6-pin bottom cable. Figure 77 shows
the specifications for the top cable in this set.
To External Power connector (input)
To camera power
supply
To camera head
To External
Power
connector
(output)
