Paramount MX User Guide
48 | Page
Rotating the switch away from the Lock Position causes the locking shaft to be
removed from locking hole and the axis will rotate freely. Note that the entire
switch itself will rise slightly out of the worm block cover as a result.
RA Assembly
The RA Assembly houses an internal shaft that can be used to snake additional cables through the
mount and allows light to pass through the mount for the polar alignment telescope.
Electronics Box
The Electronics Box includes the mount power switch, USB 2.0 cable inputs, status lights and connectors
that can be used to run power through the mount to the Instrument Panel.

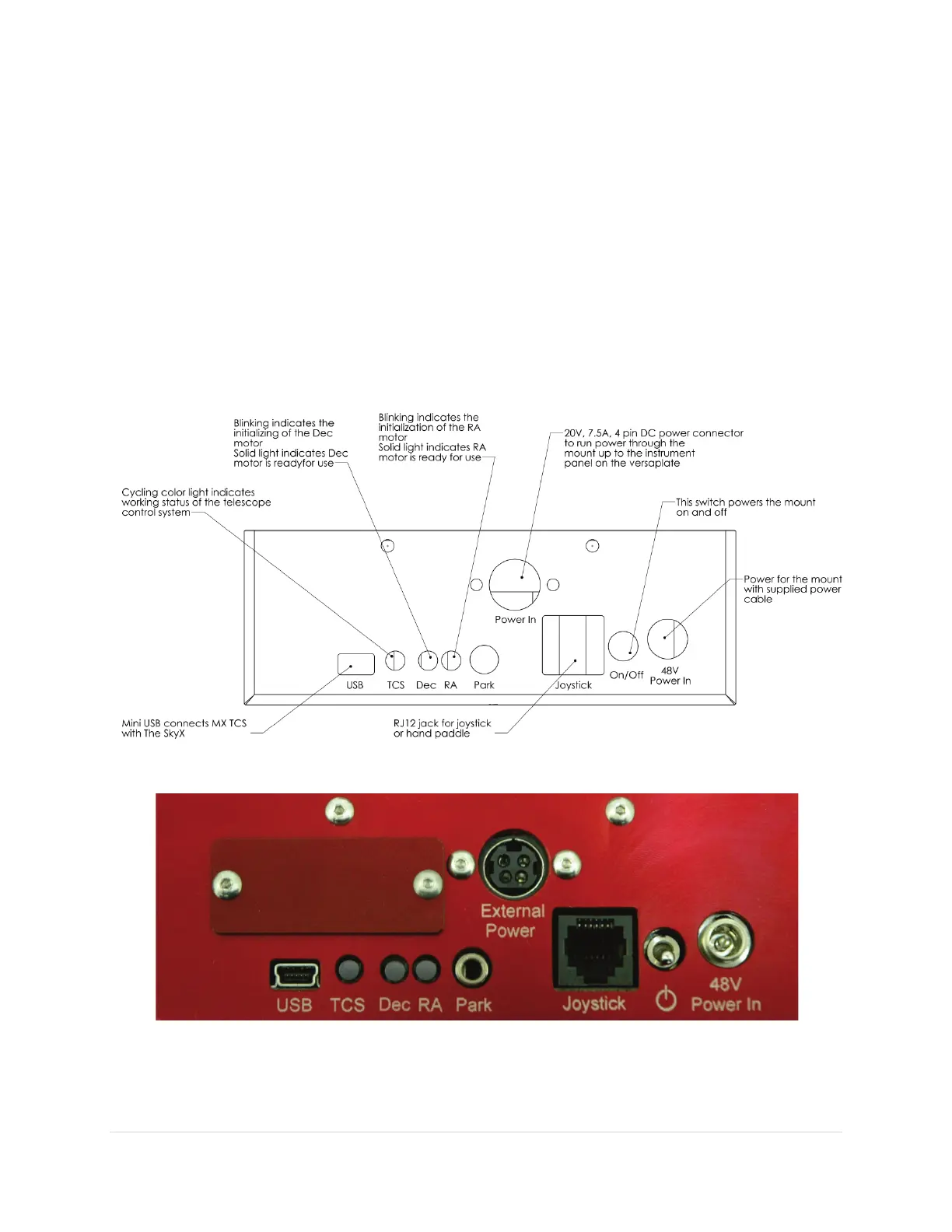

Figure 20: Technical drawing of the Paramount MX Electronics Box labeling each component.
Figure 21: Photograph of the Electronics Box.
