Access Control Module
23
In this case, termination must be provided at the end of each of the connections,
but not at the RS-485 Port connector. Termination value is 121 ohms.
SW32 ACM Address
SW32-1 = OFF ACM is unit 0 (Zero)
SW32-1 = ON ACM is unit 1
NOTE
SW32-2, SW32-3, and SW32-4 are not used and should be in the off position.
Wet/ Dry Jumpers
J10, J11, J20, J23, J24, J26, J32, J36, J55, J56, J58, J85, J89, J90, J91, J92
Output Relay Wet or Dry Jumpers
The sixteen output relays can be Dry or Wet, based on the position of these
jumpers.
When Dry, the integrator must supply the external power that the relay
switches. When set to Dry, use the C, NO, and NC connections.
When Wet, the iSTAR Ultra sources the power from LOCK Power 1 or lock
Power 2. When set to Wet, use the GND, NO, and NC connections.
Jumper Settings
Wet sourced from LOCK Power 1 - Jumper 1 to 2
Wet sourced from LOCK Power 2 - Jumper 3 to 4
Dry use External Power - Park Jumper on 2 to 3

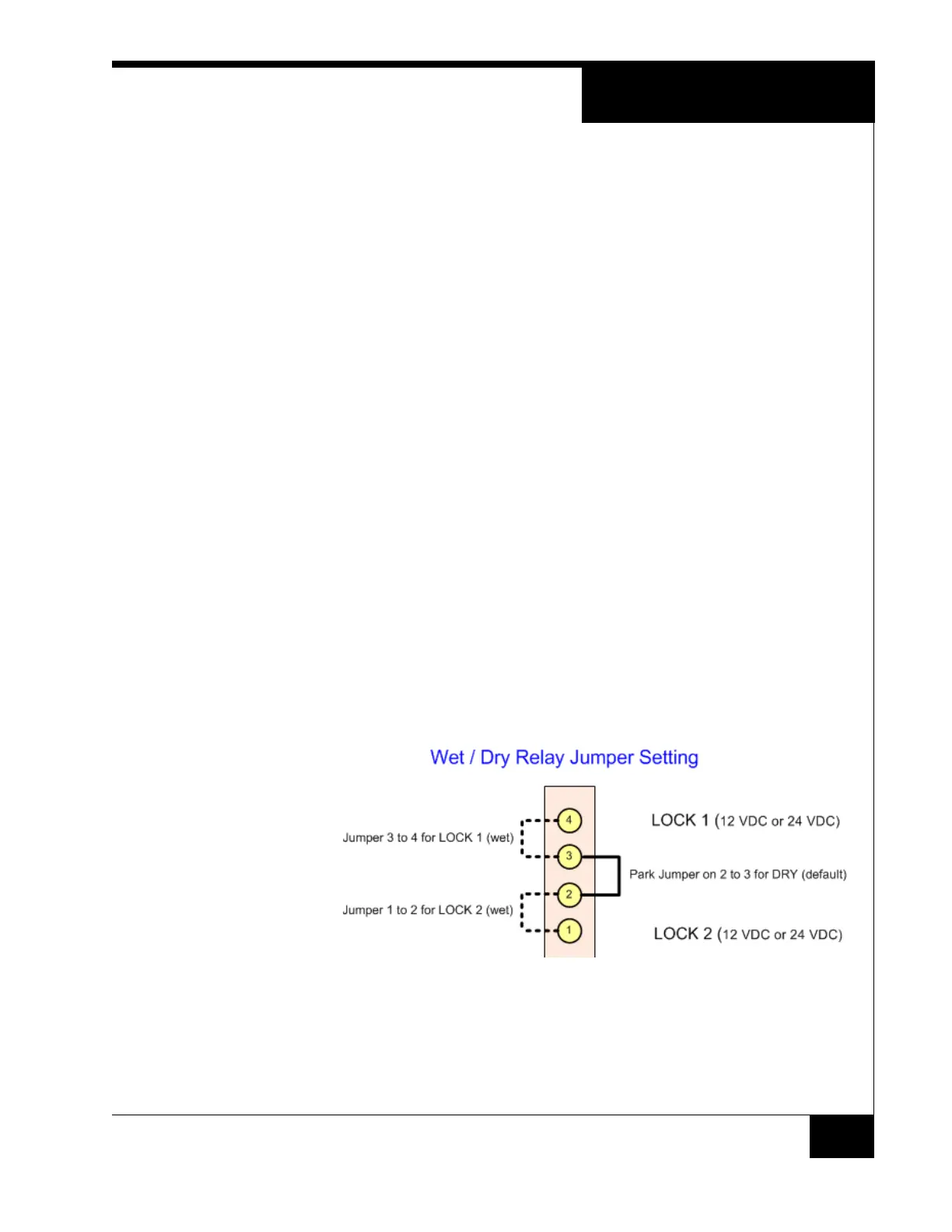

Figure 8. Wet/Dry Relay Jumper
Activate on FAI
SW2, SW4, SW22, SW19, SW18, SW6, SW26, SW23
The Primary relays (large, mounted in sockets) can be configured to Activate
when the FAI signal goes true.
