Access Control Module
25
LOCK 2 Power - J3
This is one of the power inputs to the relay outputs that are jumpered as Wet
LOCK 2.
It can be either 12 Vdc or 24 Vdc. It will also supplement the J4 Reader Power.

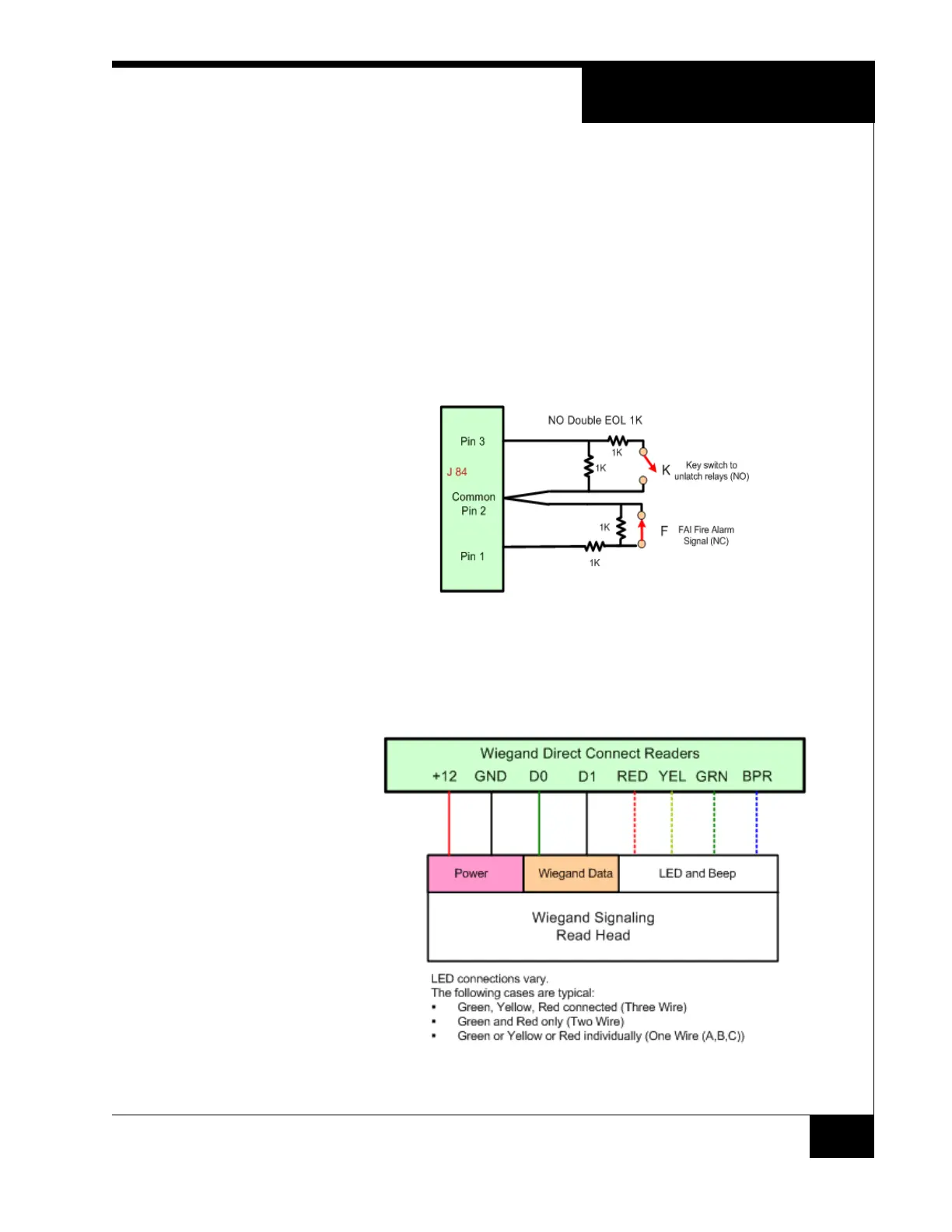

FAI F and Key - J84
The FAI signal is NC and the Key signal is NO. Wire the supervised resistors as
shown in Figure 10.
Figure 10. FAI Signal NC and Key Signal NO
Wiegand Connections
J16, J25, J31, J78, J79, J80, J22, J28
Direct Wiegand signaling read head connections are shown in Figure 11.
Figure 11. Wiegand Readers
