a.
Mark the location of the bracket screw for the DC Safety Unit, and optionally the
two additional bracket holes.

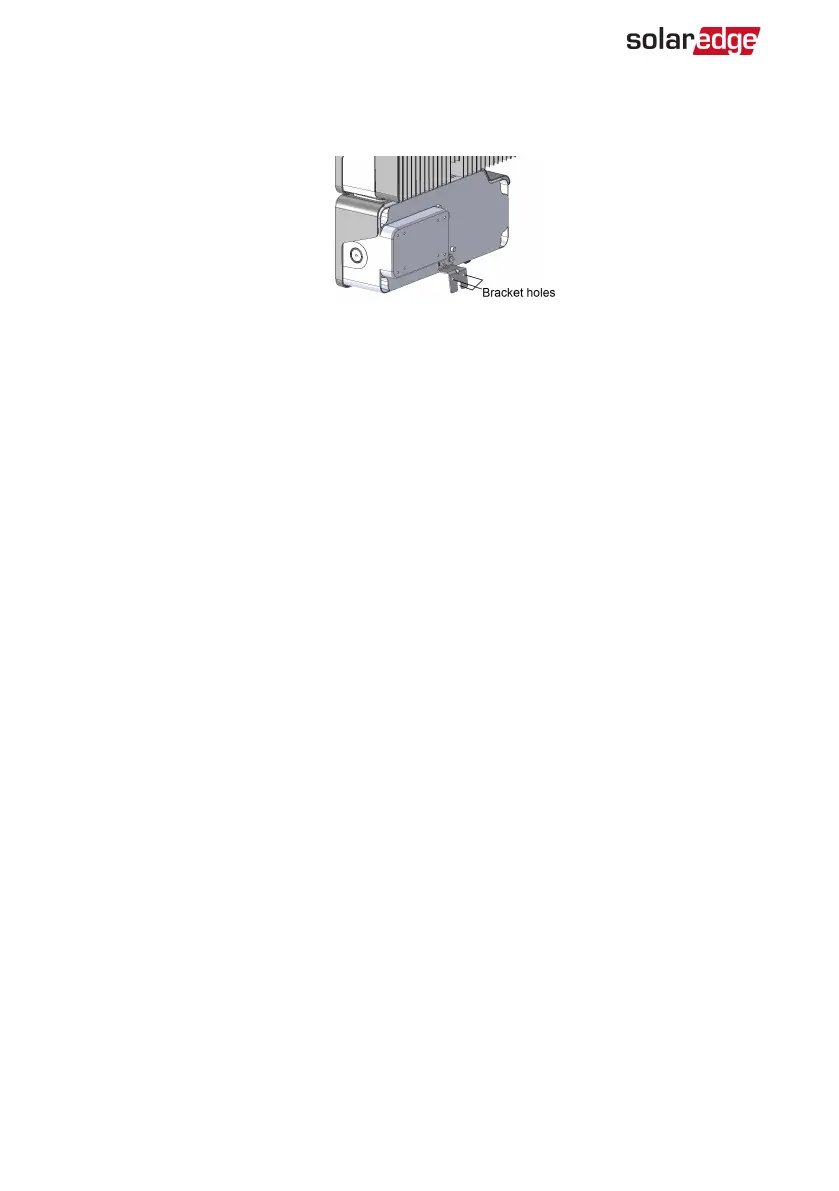

Figure 11: DC Safety Unit bracket
b. Remove the inverter from the wall/ pole.
c. Drill the hole for the DC Safety Unit bracket.
d. Hang the inverter on the mounted brackets.
e. Fasten the DC Safety Unit bracket using a standard bolt.
7. Insert the screws at the top of the inverter brackets and fasten the brackets together.
8. Verify that all the brackets are firmly attached to the mounting surface.
Single Phase Inverter with HD-Wave Technology Installation MAN-01-00540-1.0
26 Mounting the Inverter
