For more information, refer to https://www.solaredge.com/leds.
The main LED indications are:
Blue ON - the inverter is communicating with the monitoring
platform
Green ON- the system is producing
Green blinking - AC is connected but the system is not producing
Red ON - system error

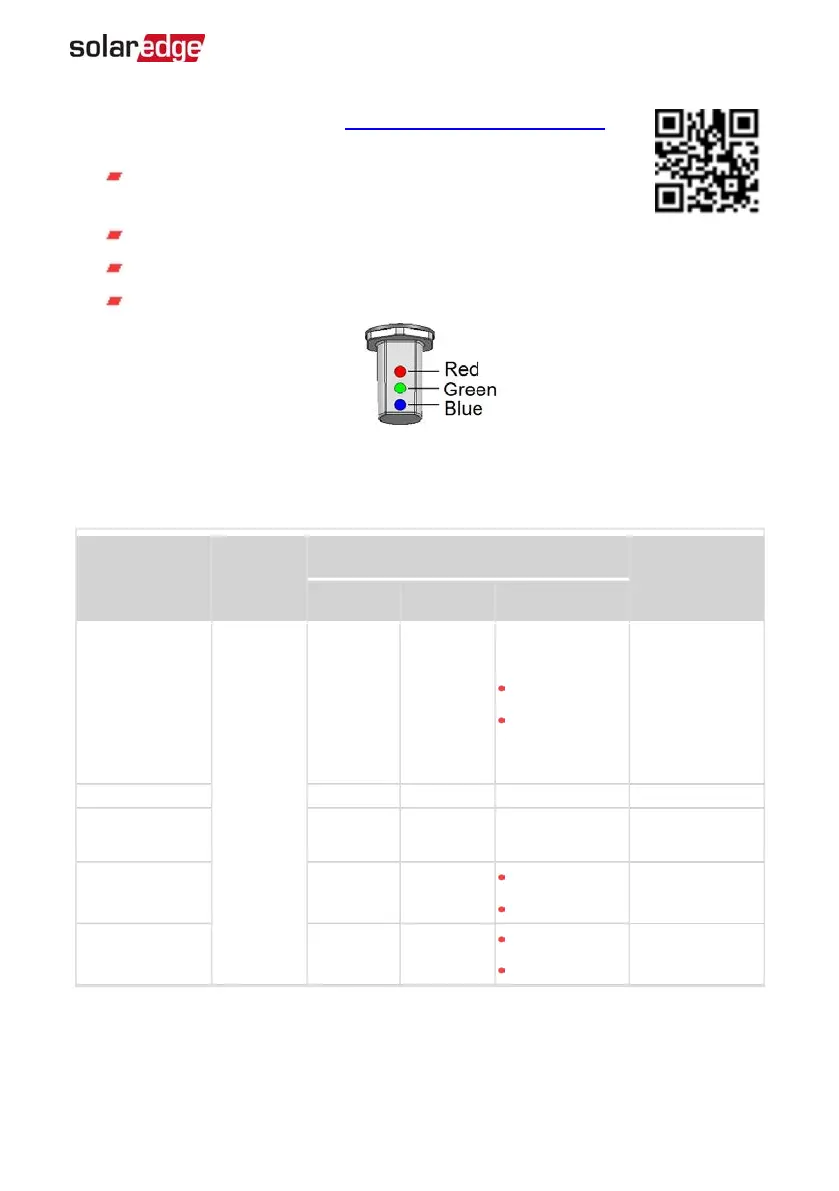

Figure 12: LEDs
The following table describes system performance information by LED color and
ON/OFF/P switch position.
Indication
ON/ OFF/
P
Switch
Position
LEDColor
Comment
Red Green Blue
Power
optimizers not
paired
ON (1)
OFF Blinking
S_OK: ON
No S_OK: OFF
S_OK: ON
communication
with the
monitoring
platform is
established.
Pairing Blinking Blinking Blinking
Wake-up/ Grid
Monitoring
OFF Blinking Blinking
System
Producing
OFF ON
S_OK: ON
No S_OK: OFF
Night mode
(no production)
OFF Flickering
S_OK: ON
No S_OK: OFF
Chapter 3: Installing the Inverter 29
Single Phase Inverter with HD-Wave Technology Installation MAN-01-00541-1.3
