Communication Connectors
A communication gland with multiple openings is used for connection of the various
communication options. The table below describes the functionality of each gland
opening. Unused openings should remain sealed.
Opening for cable size (diameter) Connection type
2.5 - 5 mm RS485
4.5 - 7 mm, with cut Ethernet (CAT5/6)
2 - 4 mm, with cut
Antenna cable for wireless
communication

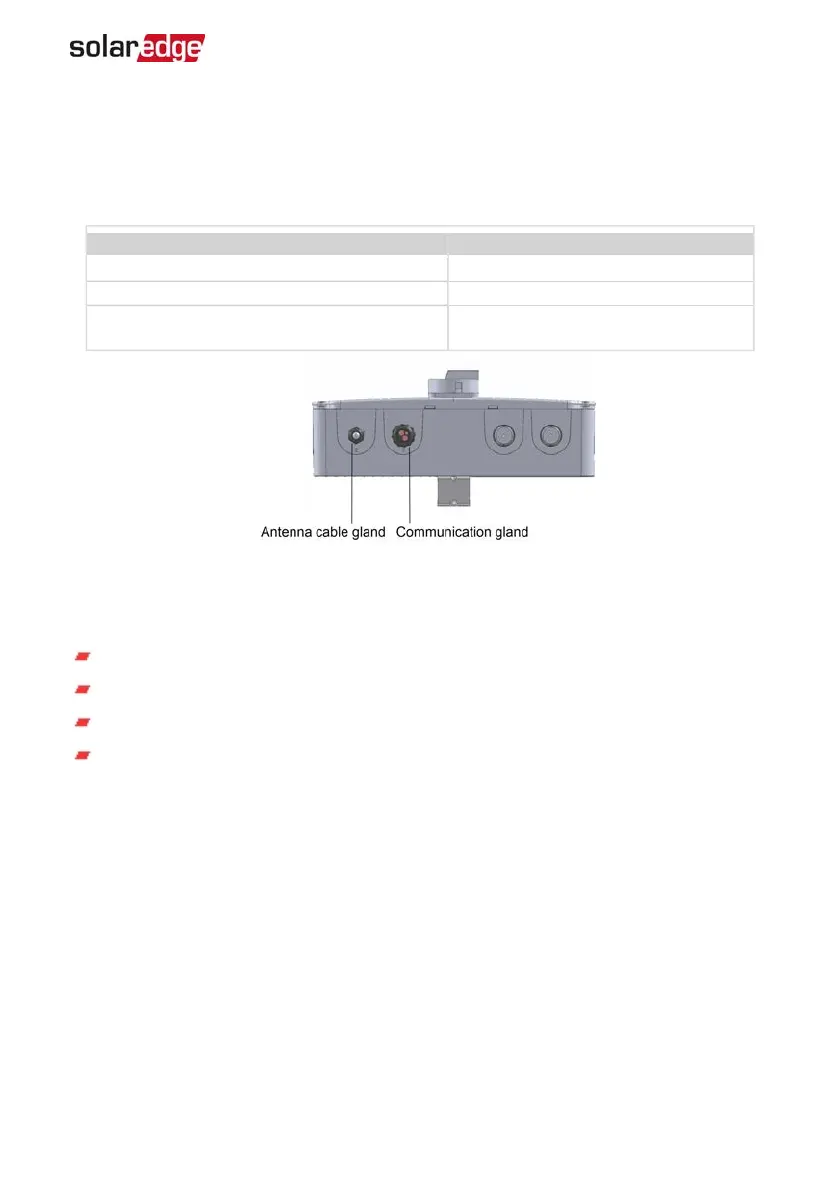

Figure 21: Communication Gland
The communication board has the following connectors:
Standard RJ45 terminal block for Ethernet connection
USB
RS485 connector
8-pin connector for power control devices
The SolarEdge Wi-Fi antenna, ZigBee or Cellular Plug-ins can be connected to the
communication board for optional wireless connection.
Chapter 6: Setting Up Communication to the Monitoring Platform 49
Single Phase Inverter with HD-Wave Technology Installation MAN-01-00541-1.3
