a.
Mark the location of the bracket screw for the Safety Switch, and optionally the
two additional bracket holes.

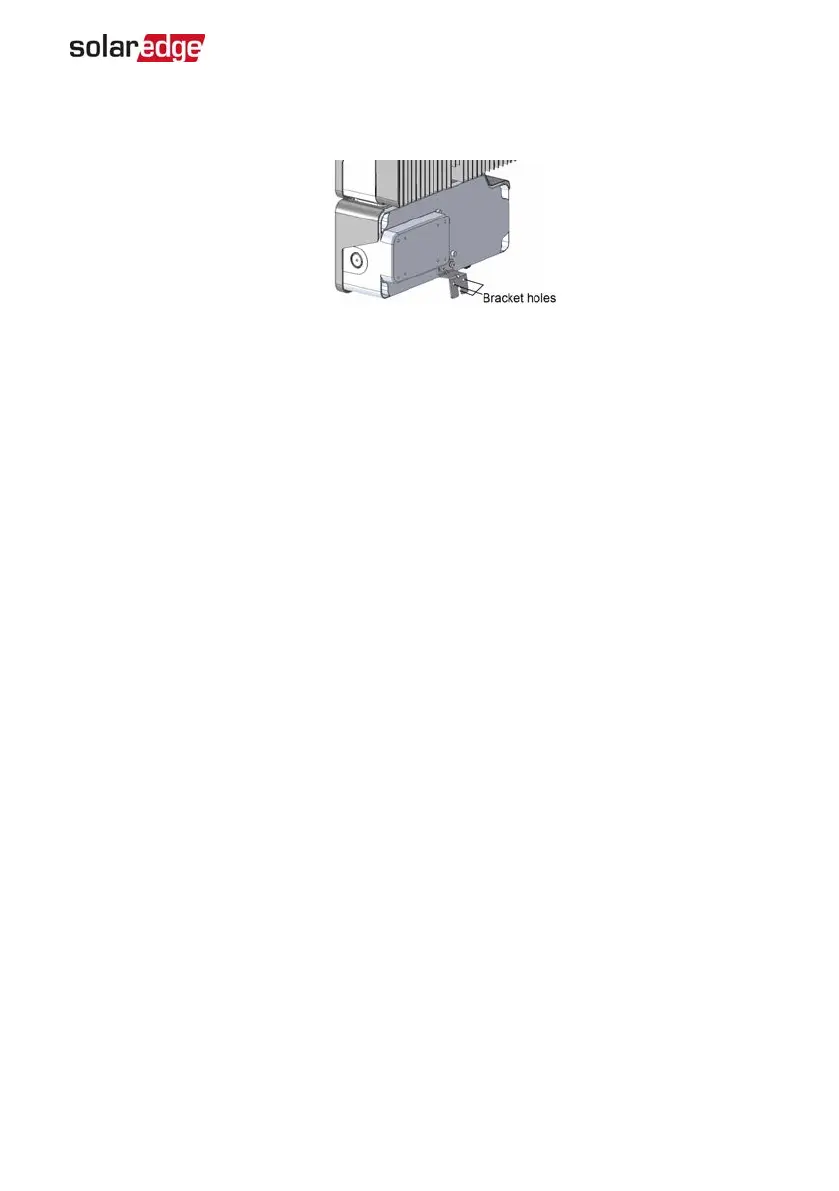

Figure 18: Safety Switch bracket
b. Remove the inverter from the wall/ pole.
c. Drill the hole for the Safety Switch bracket.
d. Hang the inverter on the mounted brackets.
e. Fasten the Safety Switch bracket using a standard bolt.
7. Insert the screws at the top of the inverter brackets and fasten the brackets together.
8. Verify that all the brackets are firmly attached to the mounting surface.
Chapter 3: Installing the Inverter 35
Single Phase Inverter with HD-Wave Technology Installation MAN-01-00541-1.3
