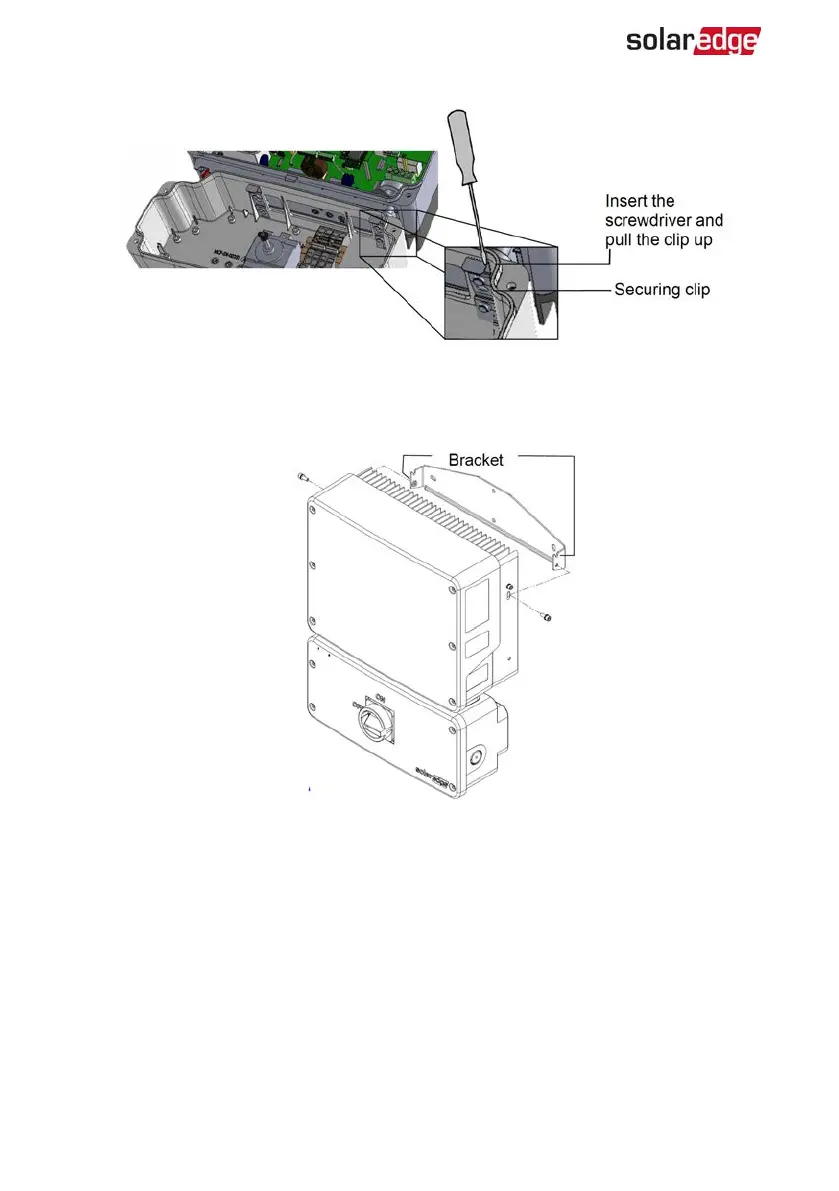

Figure 33: Disconnecting the Safety Switch from the inverter
9.
Remove the screws securing the inverter to the mounting brackets and lift the
inverter from the mounting bracket.
Figure 34: Mounting brackets
Single Phase Inverter with HD-Wave Technology Installation MAN-01-00541-1.3
68 Replacing an Inverter
