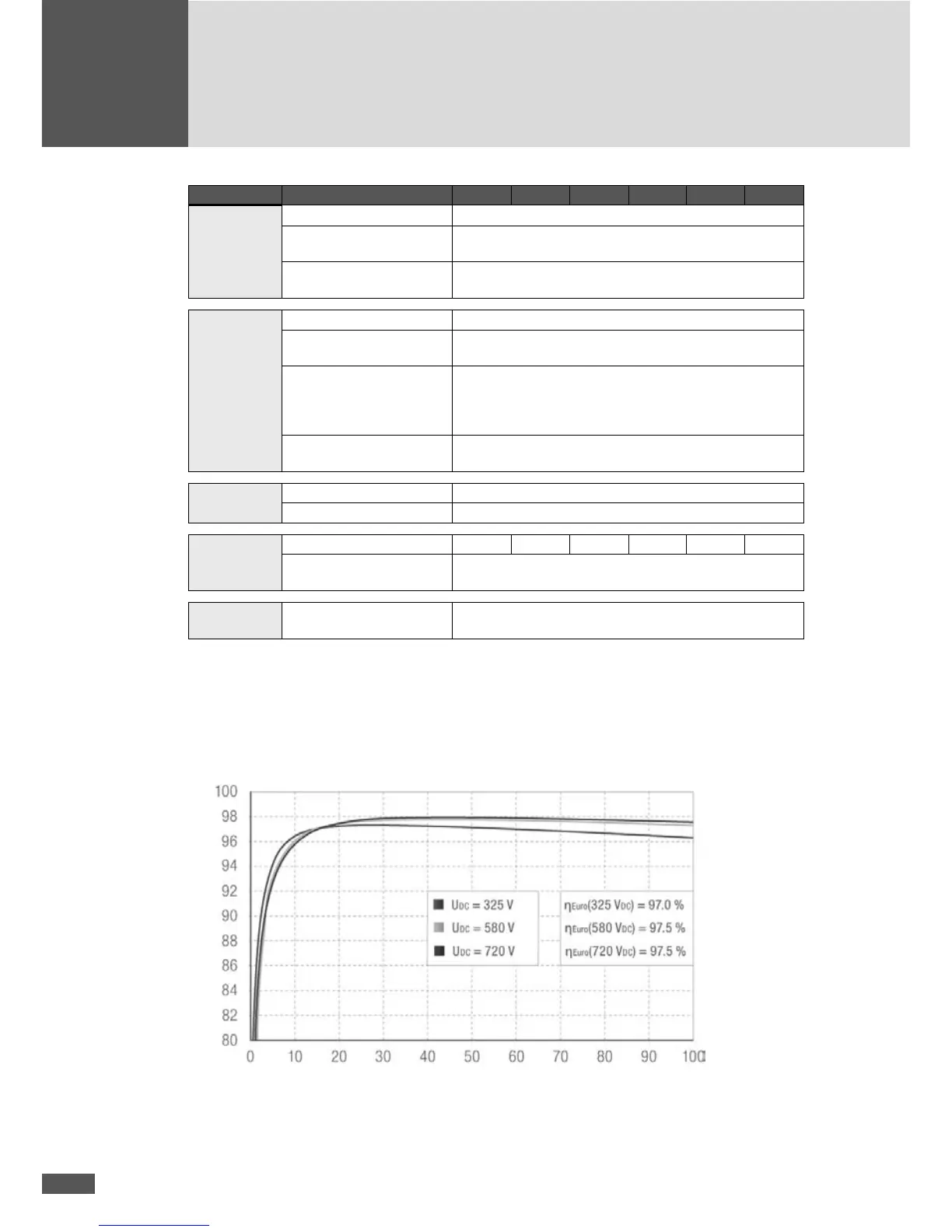

SolarMax 15MT2 - Efficiency and Derating Curves

107
8MT2 10MT2 13MT2 15MT2 13MT3 15MT3
Conguration Casing Aluminium, cover powder-coated
Overvoltage conductor DC Requirement class C (VDE 0675-6) and/or
type 2 (EN 61643-11)
Overvoltage conductor AC Requirement class D (VDE 0675-6) and(or
type 3 (EN 61643-11)
Standards &
guidelines
CE-compliant Yes
EMC EN 61000-3-2 / EN 61000-3-3 / EN 61000-3-11 /
EN 61000-3-12 / EN 61000-6-2 / EN 61000-6-3
Standard /
guideline compliance
VDE-AR-N 4105 / VDE 0126-1-1 / BDEW MS-Richtlinie /
CEI0-21
1)
/ Allegato A70
1)
/ ENEL Guida Connessioni Ed.2.2
/ RD 661 / RD 1699 / G59/2 / G83/2
2)
/ PPC Guide / C10/11 /
EN 50438
3)
/ AS 4777 / CQC Golden Sun
Device safety “GS certied safety” VDE according to EN 50178,
EC 62109-1 / AS 3100
Interfaces Data communication RS485 / Ethernet via two RJ45 sockets
Status signalling contact M12 connector with relay as N/C contact / N/O contact
Weight &
dimensions
Weight 39kg 39kg 39kg 39kg 42kg 42kg
Dimensions in mm
(W x H x D)
550 x 750 x 200
Warranty Standard 5 years / extension to 10, 15, 20, or
25 years possible
1)
available as of July 2012)
2)
only SM8MT2 and SM10MT2 (in preparation)
3)
Portugal
13.2 Efciency curve SolarMax 15MT3
Efciency η [%]
Standardised output Pac/Pac max [%]
