2. Drill the holes. Insert the dowels, position the bracket and insert the
screws to lock it.
3. Line up the slots on the sides of the heatsink with the hooks on the bracket,
adjust until the coupling is completely done, and use the two hexagonal
head bolts to lock the inverter to the bracket

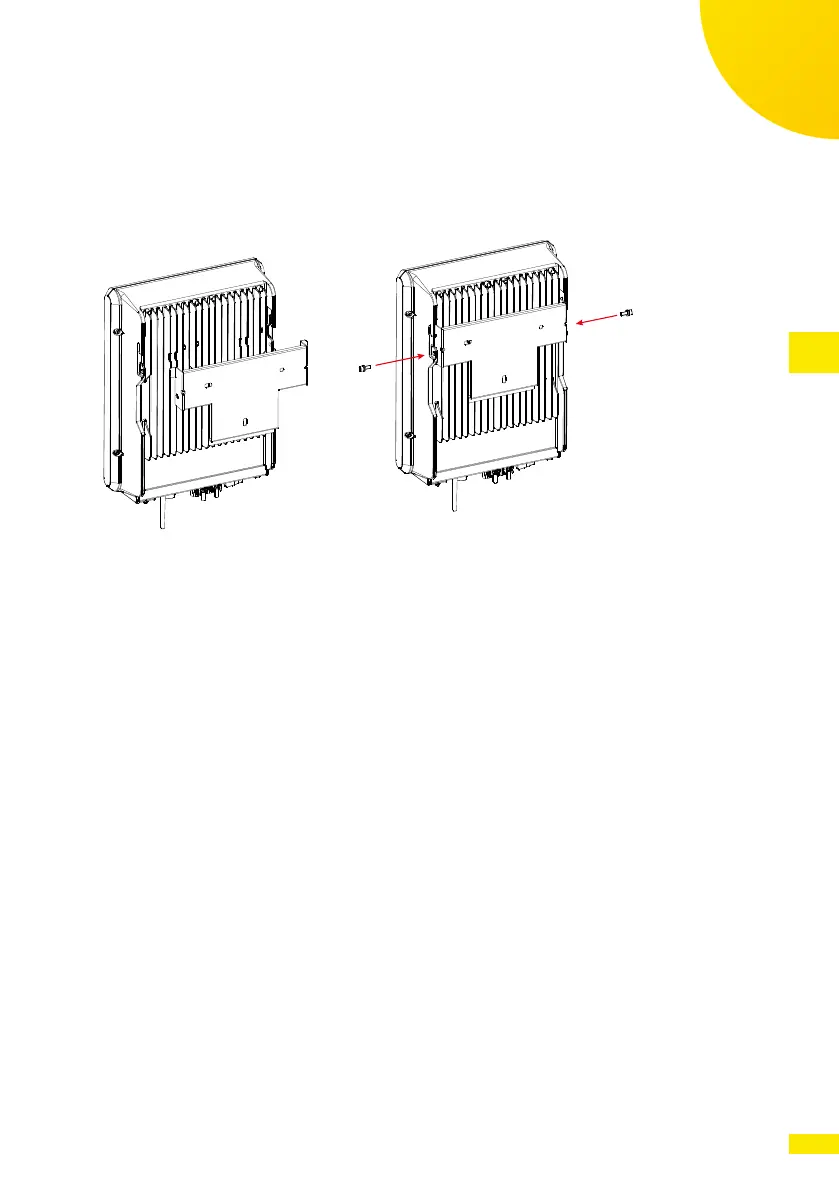

Fig. 8: Mounting the SP inverter to the mounting bracket
4. Make sure the inverter is tightened to the mounting wall.
