3 Description
3�1 Identication
The inverter can be identied on the basis of the information provided on the
nameplate. The nameplate is on the right side of the inverter. The following

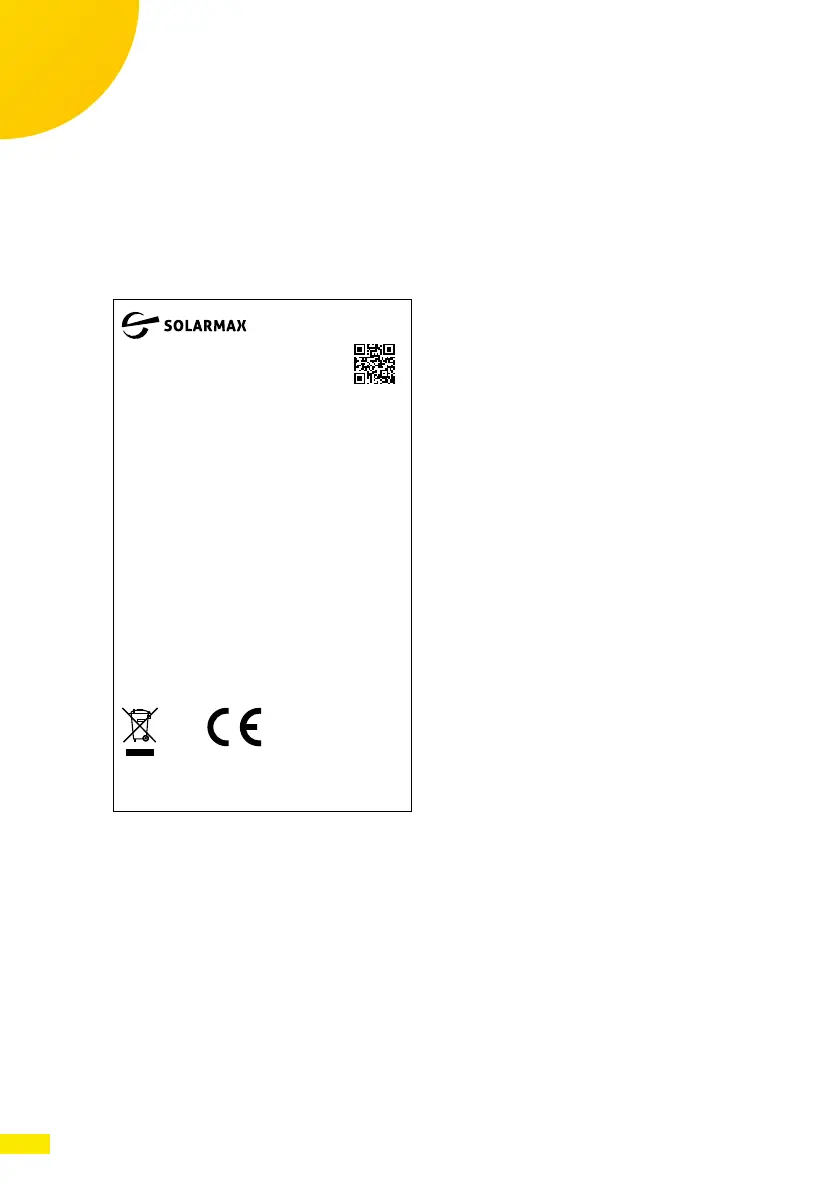

image shows the nameplate of the 4600 SP model:
4600SP
Item No�: 10094601
Serial No�: 1234-123456789
Input DC
Max. Input Voltage 600 V
MPPT Range 220 ... 520 V
Max. Input Curr. 13 A + 13 A
Shorted Imput Curr. 15 A + 15 A
Output AC
Nominal Power 4600 W
Maximum Power 4600 VA
Voltage 230 V
Max. Output Curr. 22 A
Frequency 50 / 60 Hz
Power Factor Range 0.8i … 0.8c
Overvoltage Category DC II / AC III
Protective Class I
IP Rating IP65
Ambient Temperature – 25 ... + 60°C
Compliancy VDE-AR-N 4105
VDE 0126-1-1
CEI 0-21
SOLARMAX GmbH
Zur Schönhalde 10 - 89352 Ellzee - Germany
www.solarmax.com
Fig. 1: Label of SOLARMAX 4600SP
3�2 Function
The SOLARMAX SP Series inverters have the following characteristics that
provide high eciency and high reliability:
● Wide input DC range, allowing maximum exibility in the conguration of
the PV generator.
● Wide Maximum Power Point (MPP) tracking operating interval, ensuring
high energy harvesting even in sub-optimal weather conditions.
● The high MPP accuracy and the high eciency of the power electronic cir-
cuits minimize the operating losses.
● Quad MPP tracker for optimum energy yield
● Protection class IP65, suitable for outdoor use
