SolarMax 4200S - Country-Specific Settings

55
en

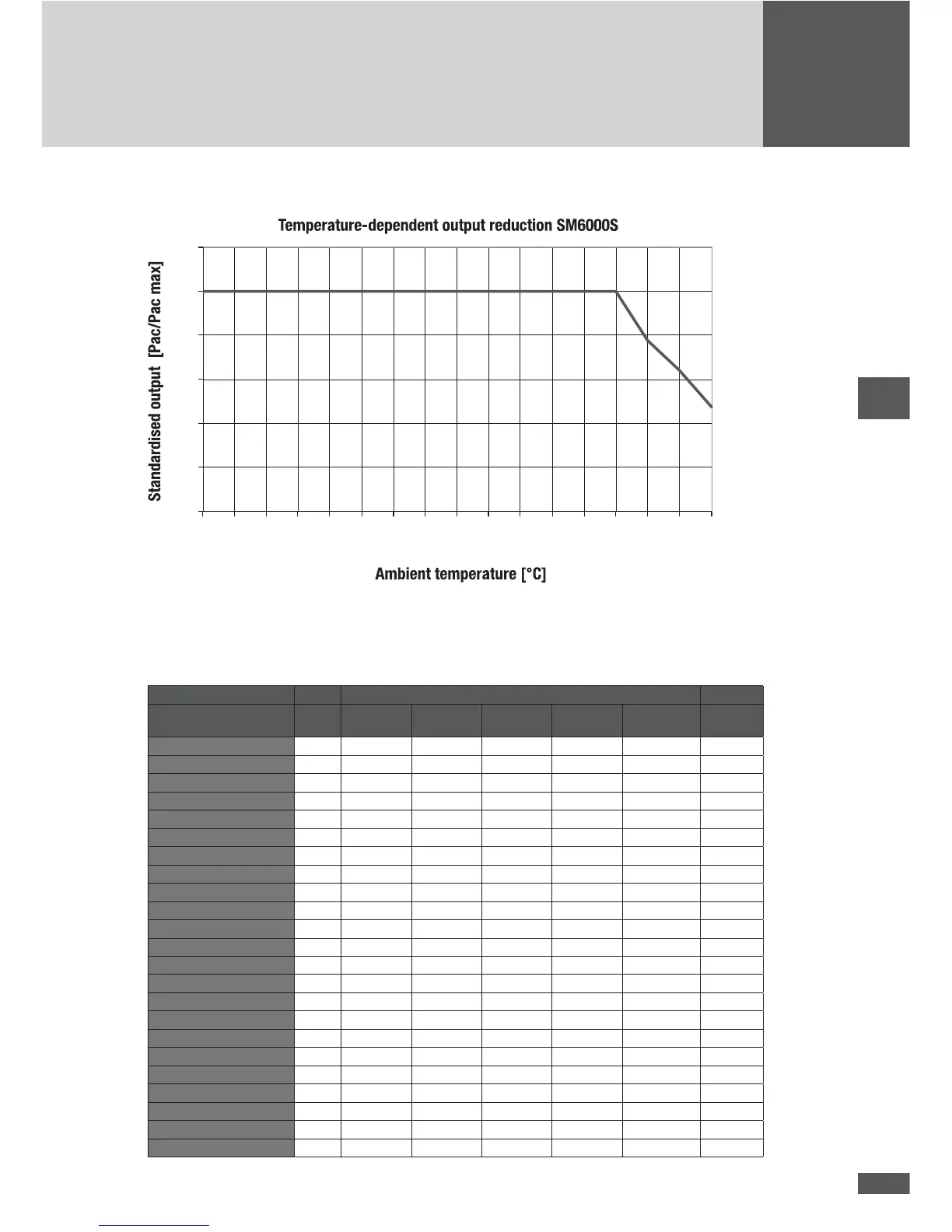

SM6000S
0
0,2
0,4
0,6
0,8
1
1,2
-20°C -15°C -10°C
-5°C
0°C 5°C
10°C 15°C 20°C 25°C 30°C 35°C 40°C 45°C 50°C 55°C 60°C
14.4 Country speci c settings
Parameter (FW.Rel.6.1) Unit Germany Spain
<= 3.68 kVA
> 3.68 –
<= 13.8kVA
> 13.8 –
<= 30kVA
> 30kVA
VDE
0126-1-1
Vac min 1 V 184 184 184 Off 184 196
t Vac min 1 ms 200 200 200 0 200 1500
Vac max 1 V 264 264 264 Off 264 253
t Vac max 1 ms 200 200 200 0 200 1500
Vac min 2 V Off Off Off Off Off Off
t Vac min 2 ms0000 00
Vac max 2 V Off Off Off Off Off 264
t Vac max 2 ms0000 0200
Vac 10min max V 253 253 253 Off 253 Off
f min 1 Hz 47.5 47.5 47.5 Off 47.5 48
t f min 1 ms 200 200 200 0 200 3000
f max 1 Hz 51.5 51.5 51.5 Off 51.5 50.5
t f max 1 ms 200 200 200 0 200 500
f min 2 Hz Off Off Off Off Off Off
t f min 2 ms0000 00
f max 2 Hz Off Off Off Off Off Off
t f max 2 ms0000 00
df/dt max Hz/s Off Off Off Off Off Off
Ierr max mA 300 300 300 300 300 300
Iac mean max mA 1000 1000 1000 1000 1000
0.5% of Iac max
Restart delay s0000 00
Mains check On/Off On On On Off On On
- Vac MC max V 253 253 253 280 253 253
