Electrical Connection
Electrical Connection
64
65
CAN
Meter/CT
COM/LCD
Distribution box
Don
g
le/U
p
g
r
a
de

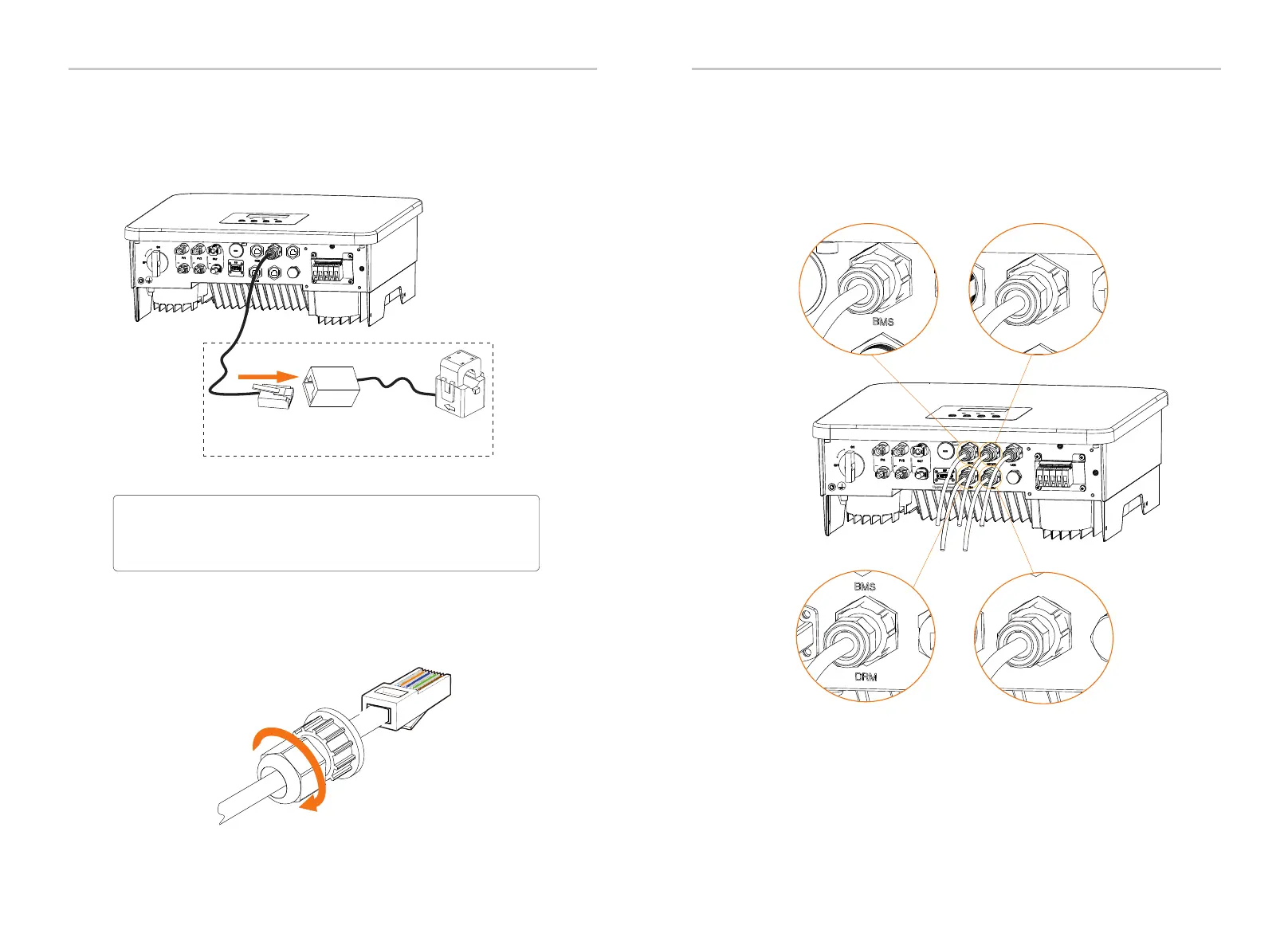

Step 4. Tighten the completed Meter/CT/BMS communication line and
tighten the waterproof plug.
2) One side of the finished cable, Waterproof connector with RJ45 is inserted
into the inverter, and one side of the RJ45 terminal is inserted into the
CT connection.
Notice!
When installing, pay attention to water resistance. All the
connected parts of CT must be put into the distribution cabinet.
Meter/CT
Meter/CT
COM/LCD
Step 5: Finally, find the corresponding COM, METER, CT, DRM, LCD poets
on the inverter and insert the communication cable into the
corresponding ports.
