Solax X1 Series - Final Connections and Grounding; Connecting AC Plug and DC Switch; Essential Earth Connection Procedure

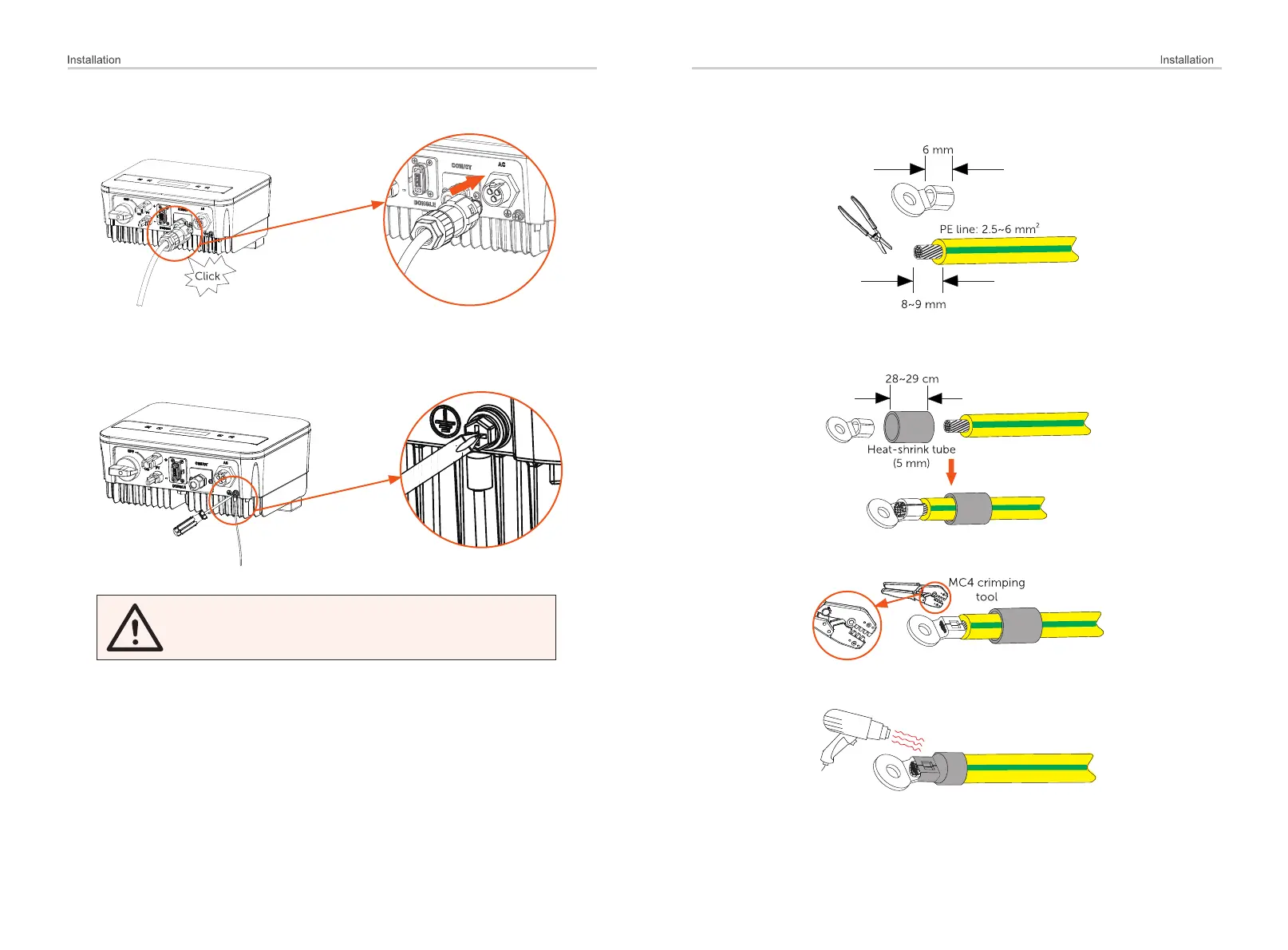

I) Connect the AC plug to the inverter.
Earth Connection
Ø
Screw the ground screw with cross screwdriver shown as follow.
(torque: 1.5± 0.2N ).m
WARNING!
Be sure the ground wire must be connected!
30
31
Connection steps:
1) Use a crimping tool to strip the terminal from the PE cable.
2) Slide the heat-shrink tubing (Ul224 125℃ VW-1 600V) over the PE cable.
4) Use a crimping tool to squish the terminal.
Insert the PE cable into the terminal.
5) Use a hot-air blower to blow the heat-shrink tubing.
