Solax X1 Series - DRM Functionality Setup; DRM Function PIN Definition; DRM Connection and Usage

d. DRM
2
7

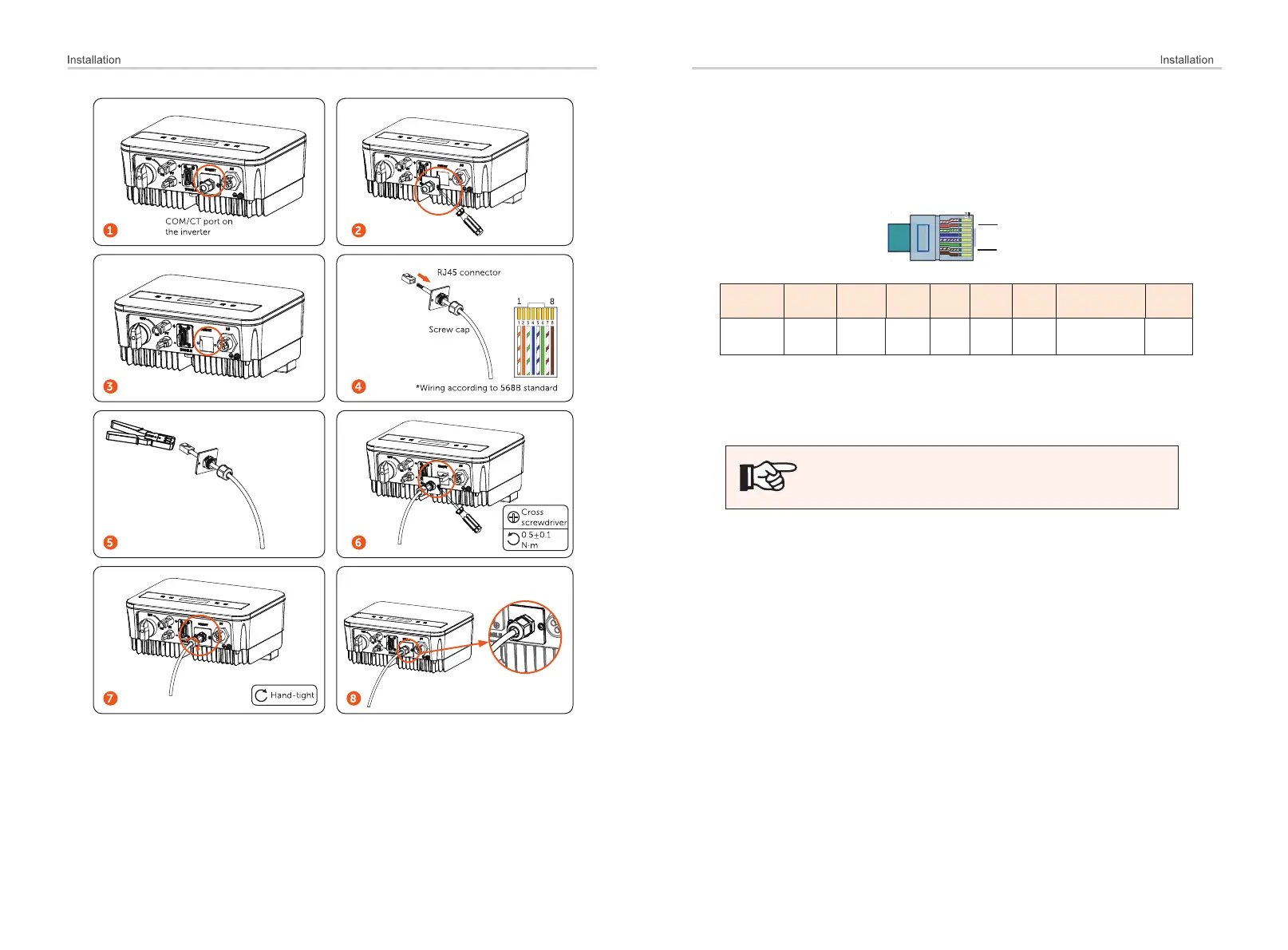

DRM function (for AS4777) is provided to support several demand
response modes by giving control signals as below (For other countries,
DRM function is used for remote shut-off) . The user should follow the
following PIN rules and cooperate with external equipment when using it.
DRM shares the terminal block with RS485/ Meter communications.
For the connection steps of the DRM, user can refer to the above RS485
connections.
42
43
PIN
1
2
3
4
5
6
7
8
Definition
X
DRM0
X
X
X
X
+3.3V
X
Note!
Only DRM0 is available now.
