Unpacking and Mounting Hardware
14
Standard Layout

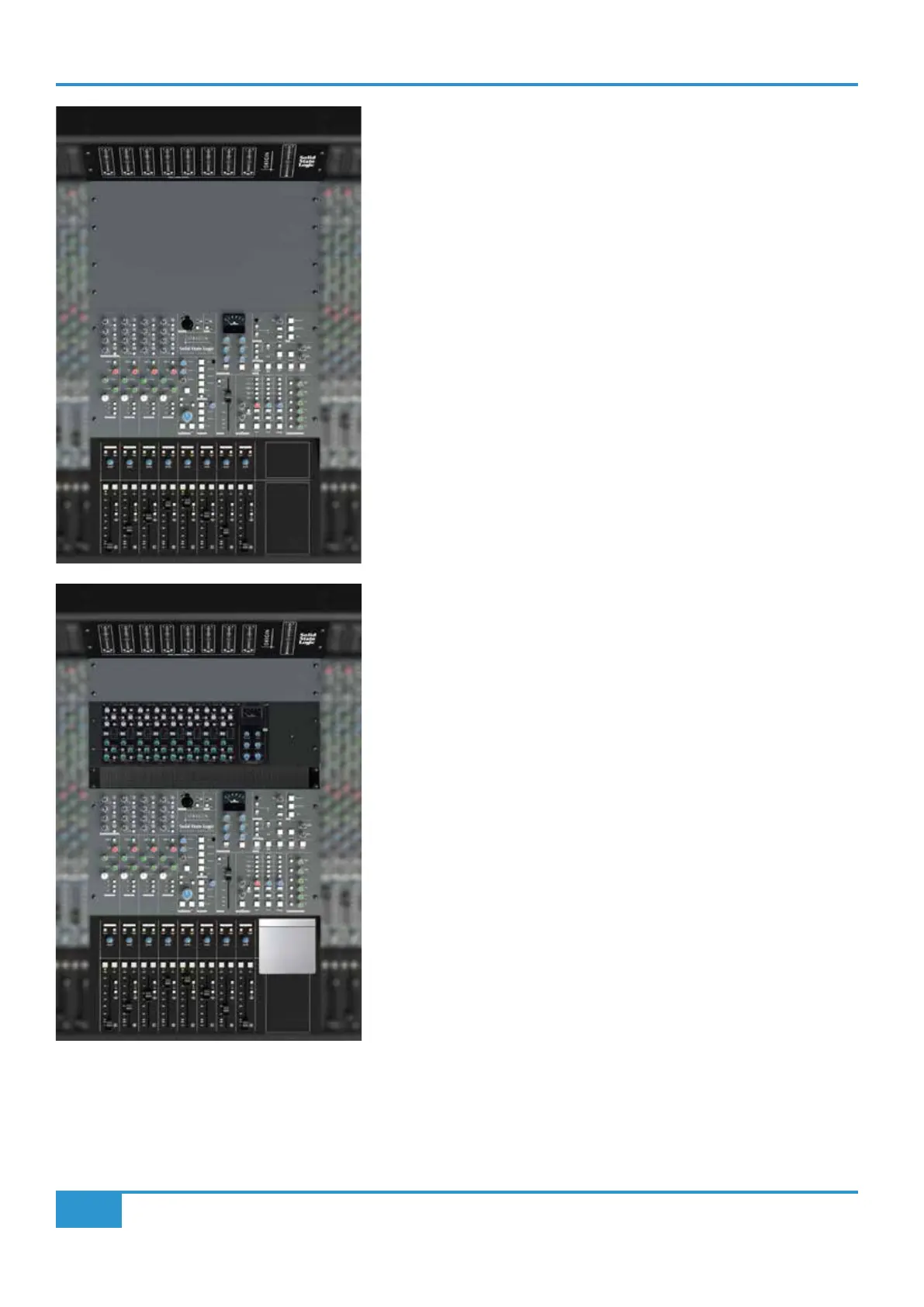

The layout on the left is the default layout from the factory. As can be seen, all
the panels above the Stereo Group faders are 19" format panels. The Master
Section is a 6U panel and above that are two 3U panels. The Meter Panel in
the overbridge is also a 3U panel.
500 Series Racks
In this layout, the two 3U panels have been replaced with a 500 series rack
fitted with 8 mono SSL Dynamics modules and a stereo SSL Bus Compressors.
A 1U grill panel has been fitted above the centre section to aid with ventilation
and the remaining 2U filled with a 2U blank panel.
The lower right blank area next to the Stereo Group faders has an Apple
Magic Trackpad placed on it to show for scale.
IMPORTANT:
Please read the VERY IMPORTANT INFORMATION on the previous page
before fitting any electronic devices into the centre section racking.
