SSL UF8 User Guide
LCD Layout
Top Zone - Provides a label for the function assigned to the soft key directly above.
Selected Track / Track Record-Enabled (REC) - In Logic, the REC text follows the currently selected track. If the track is record-
enabled, the REC text pulses.
UpLCD - Displays the 6-character track name.
LowLCD - Displays a label or value readout for the parameter currently assigned to the V-Pot.
DAW Track Metering - 12-segment track metering + clip
V-Pot Readout Bar - Displays the position of the currently assigned V-Pot (encoder) function.
V-Pot Encoders
Soft Keys

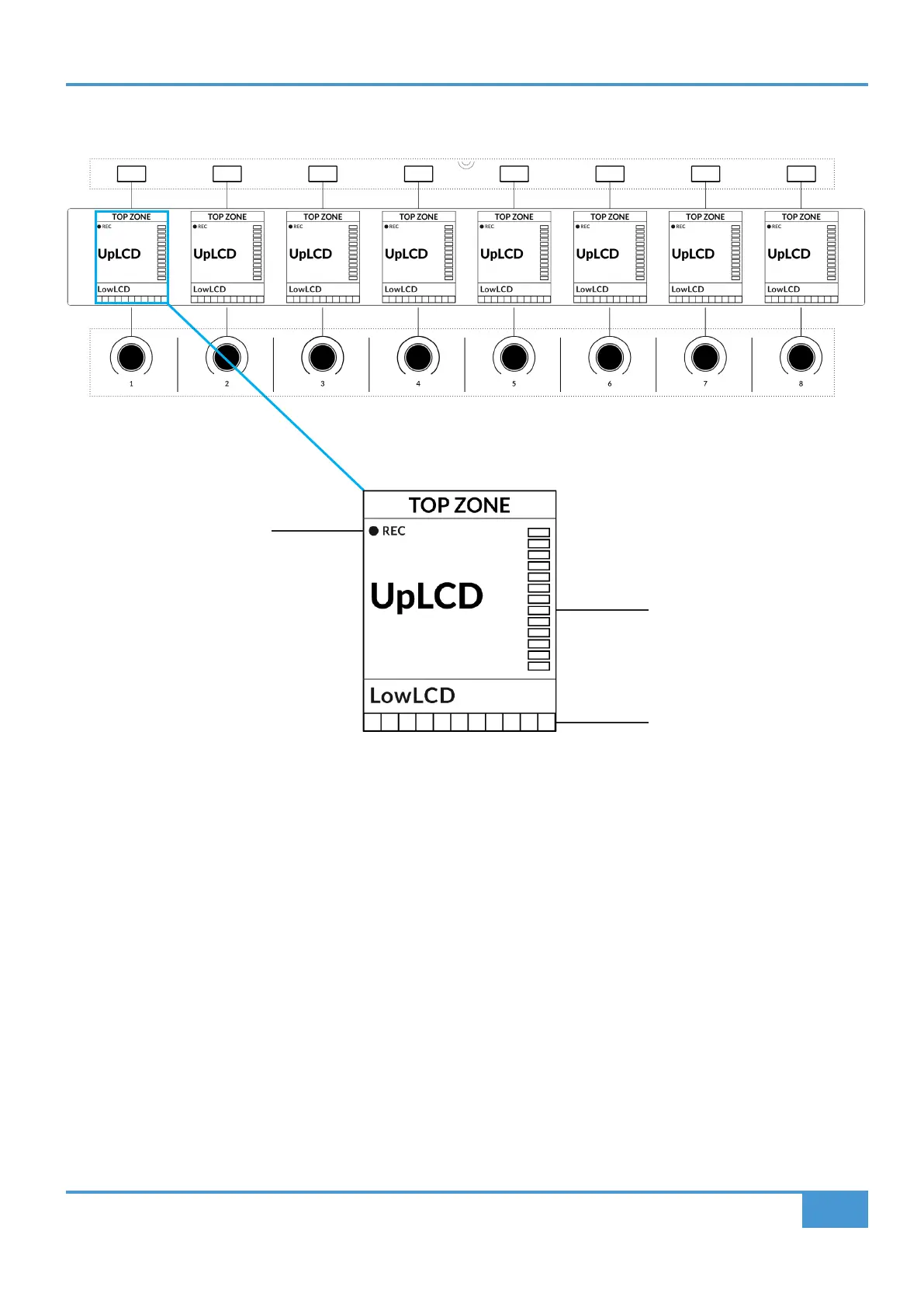

Enlarged view of LCD screen
DAW Track Metering
V-Pot Readout Bar
Selected Track /
Track Record-Enabled
