SSL UF8 User Guide
Rack Mount Kit
A 19" in rack mount kit is available for purchase separately should you wish to rack mount your UF8. When rack-mounted, UF8
occupies 6U of space.

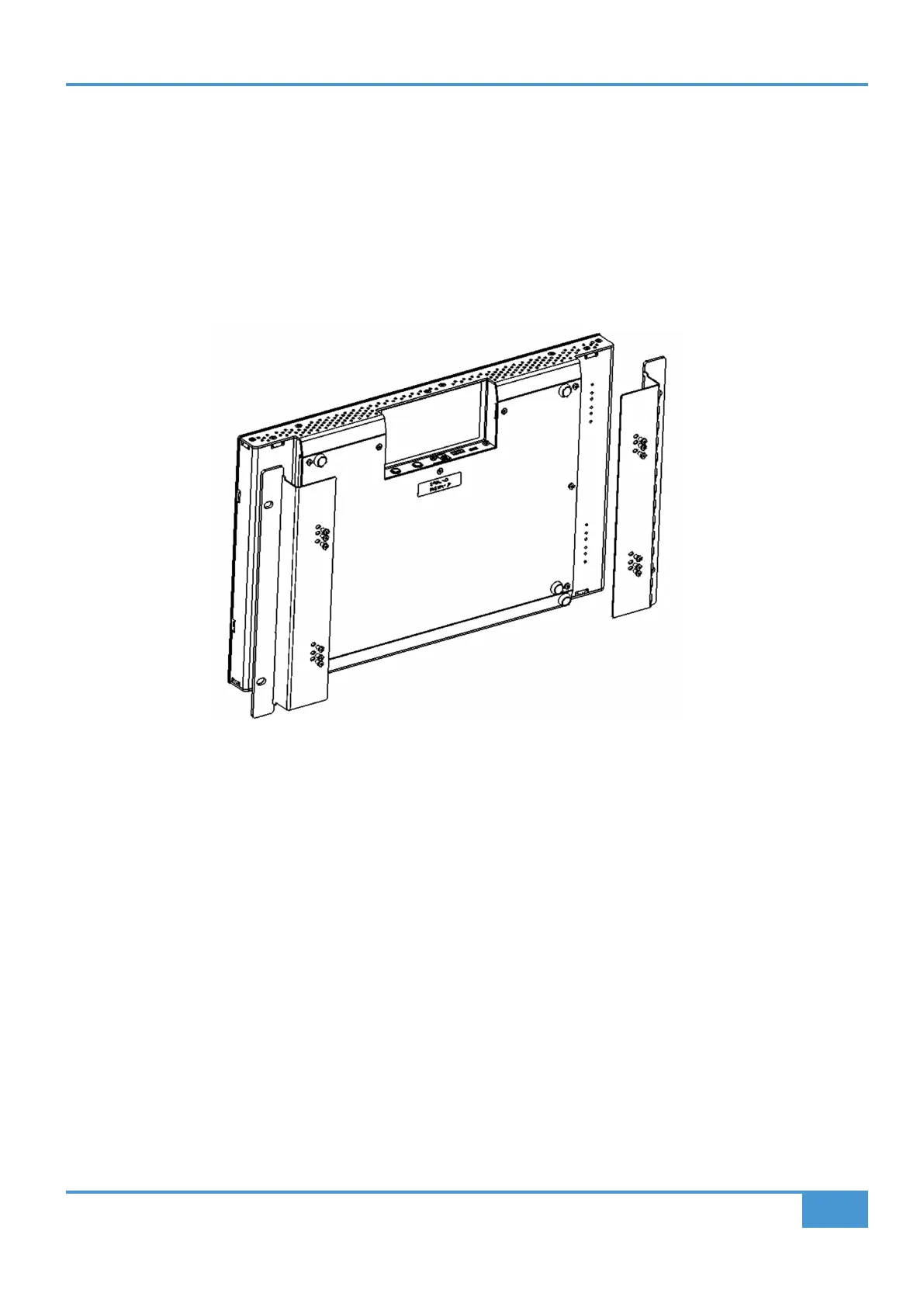

Attaching the rack mount ears
The kit contains a set of metal racking ears and 12 screws, which should be secured to the chassis using the lower 3 screw holes at
the top and bottom of each side (6 in total per side), as pictured below. Please be careful not to over-tighten to avoid stripping
the screw threads.
UF8 Physical Specification
Dimensions
17” x 10.5” x 2.4” / 431 x 266 x 62.7 mm (Width x Depth X Height)
Weight
Unboxed - 2.9 kg / 6.4 lbs
Boxed - 5.0 kg / 11.02 lbs
