Solid State Logic UF8 - Studio One LCD Layout

Studio One Tutorial
66
SSL UF8 User Guide

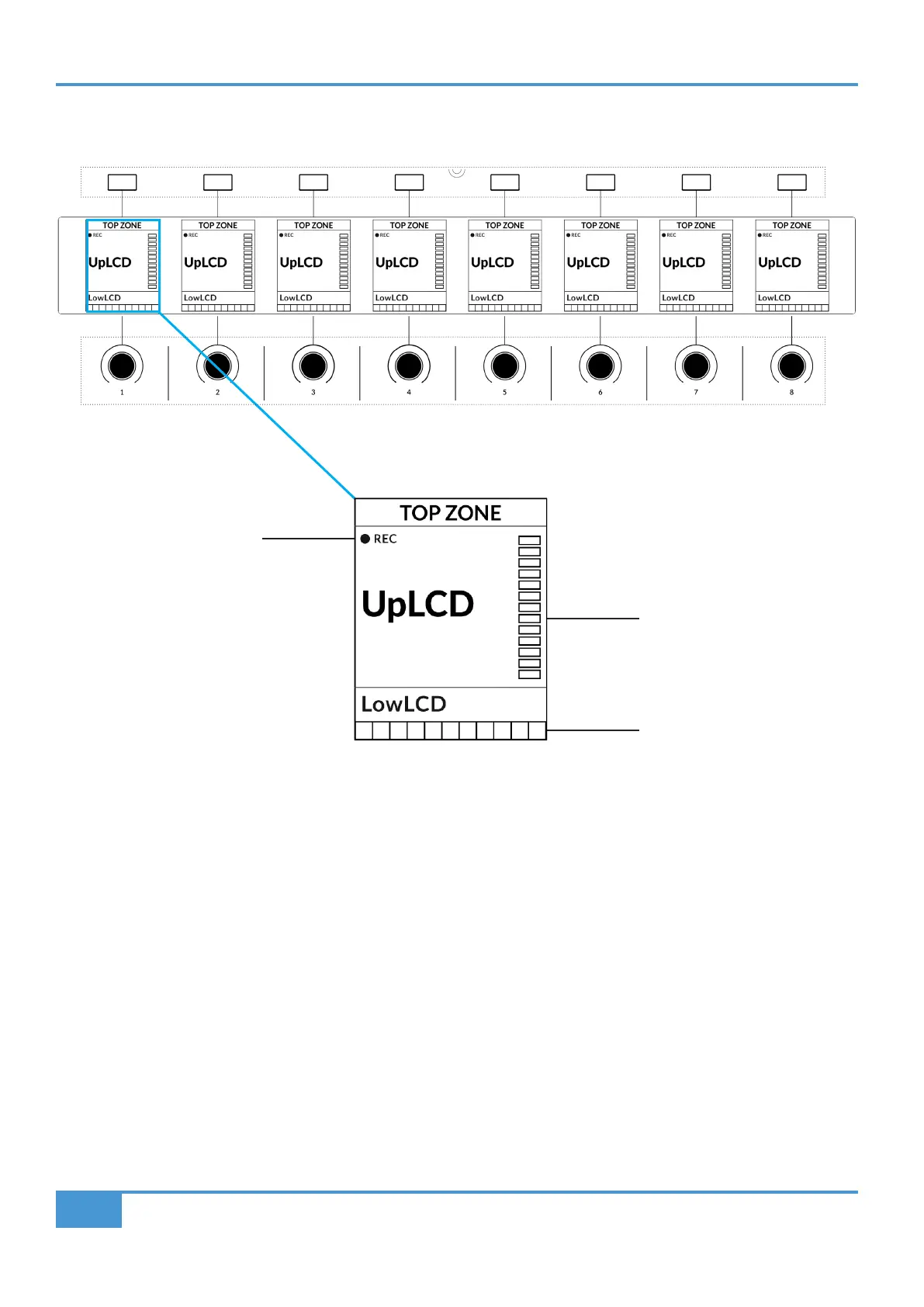

LCD Layout
V-Pot Encoders
Soft Keys
Enlarged view of LCD screen
DAW Track Metering
V-Pot Readout Bar
Track Record-Enabled
Top Zone - Provides a label for the function assigned to the Soft Key button directly above.
Track Record-Enabled (REC) - In Studio One, the REC text appears when a track is record-enabled.
UpLCD - Displays the 6-character track name or parameter being controlled by the V-Pot, depending on the current mode.
LowLCD - Displays a fader value or value readout for the parameter currently assigned to the V-Pot, depending on the current
mode.
DAW Track Metering - 12-segment track metering + clip.
V-POT Readout Bar - Displays the position of the currently assigned V-Pot (encoder) function.
