SSL UF8 User Guide
LCD Layout

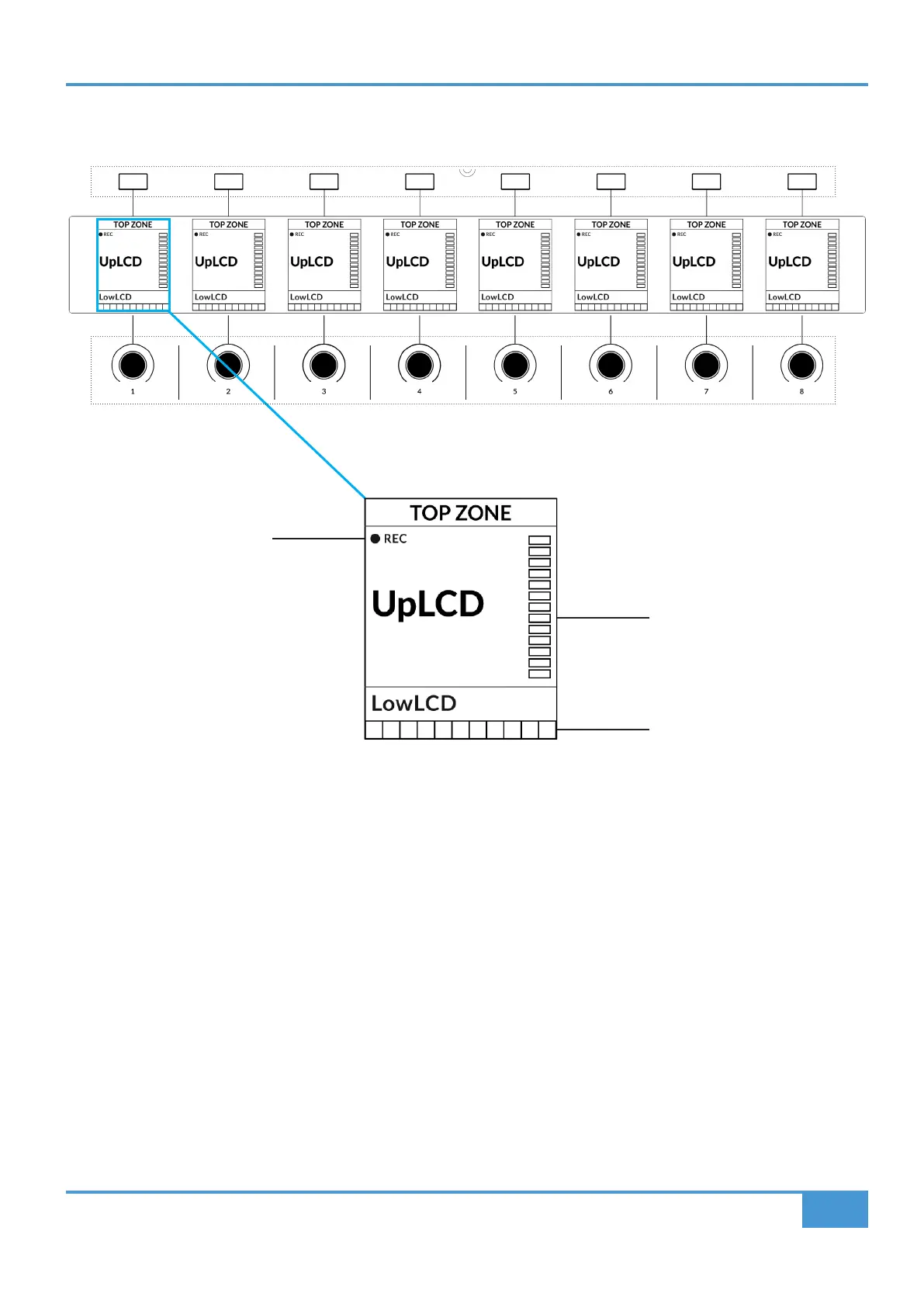

Top Zone - Provides a label for the function assigned to the Soft Key button directly above.
Track Record-Enabled (REC) - In Live, the REC text appears when a track is record-enabled.
UpLCD - Normally displays the 6-character track name or parameter being controlled by the V-Pot, depending on the current
mode. When a fader is moved the word 'Volume' appears here.
LowLCD - Displays a label or value readout for the parameter currently assigned to the V-Pot, unless a fader is moved, in which
case the fader dB value is shown.
DAW Track Metering - 12-segment track metering + clip
V-POT readout bar - Displays the position of the currently assigned V-Pot (encoder) function.
V-Pot Encoders
Soft Keys
Enlarged view of LCD screen
DAW Track Metering
V-Pot Readout Bar
Track Record-Enabled
