Removing the top cover

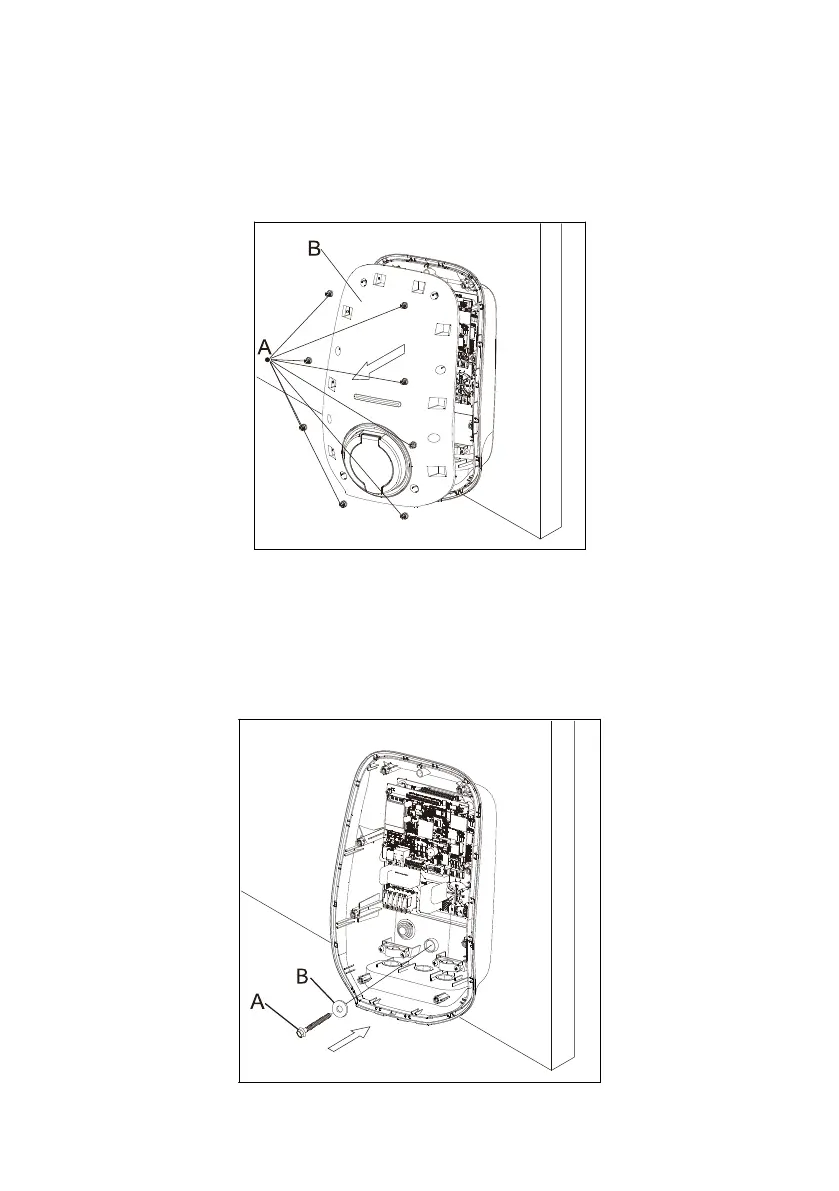

1. Remove the eight screws (A) located on the top cover (B).
2. Remove the top cover (B) (Take care of the cable wires that connect to
the top cover for the socket version).
Figure 17
Installing the inner screw on the bottom cover
1. Thread the screw (A) through the sealing rubber (B). Then install the
mounting screw (A) to secure the enclosure to the surface. The
recommended torque is 4.4Nm.
Figure 18
