CPU Type Configuration
Set the motherboard jumpers JP5, JP6, JP7, JP8, JP9, JP17,
J18, JP21, and JP23 according to the CPU type as shown in
the following figures.
CPU 1.5X Clock Setting (Red Caps)
Pentium – 75/90/100 MHz
AMD K5 – PR75/PR90/PR100/PR120/PR133 MHz
JP21 JP23
1
JP21 JP23
1
JP8
Intel Pentium 75/50
AMD K5 – P75/50
JP8
Intel Pentium 90/60
AMD K5 – PR90/60
AMD K5 – PR120/60
JP8
Intel Pentium 100/66
AMD K5 – PR100/66
AMD K5 – PR133/66
SRAM Slot
CPU
JP5
JP7 JP9
JP21 JP23
1
1
1
JP6
1
JP17
JP18
JP8
JP21 JP23
1

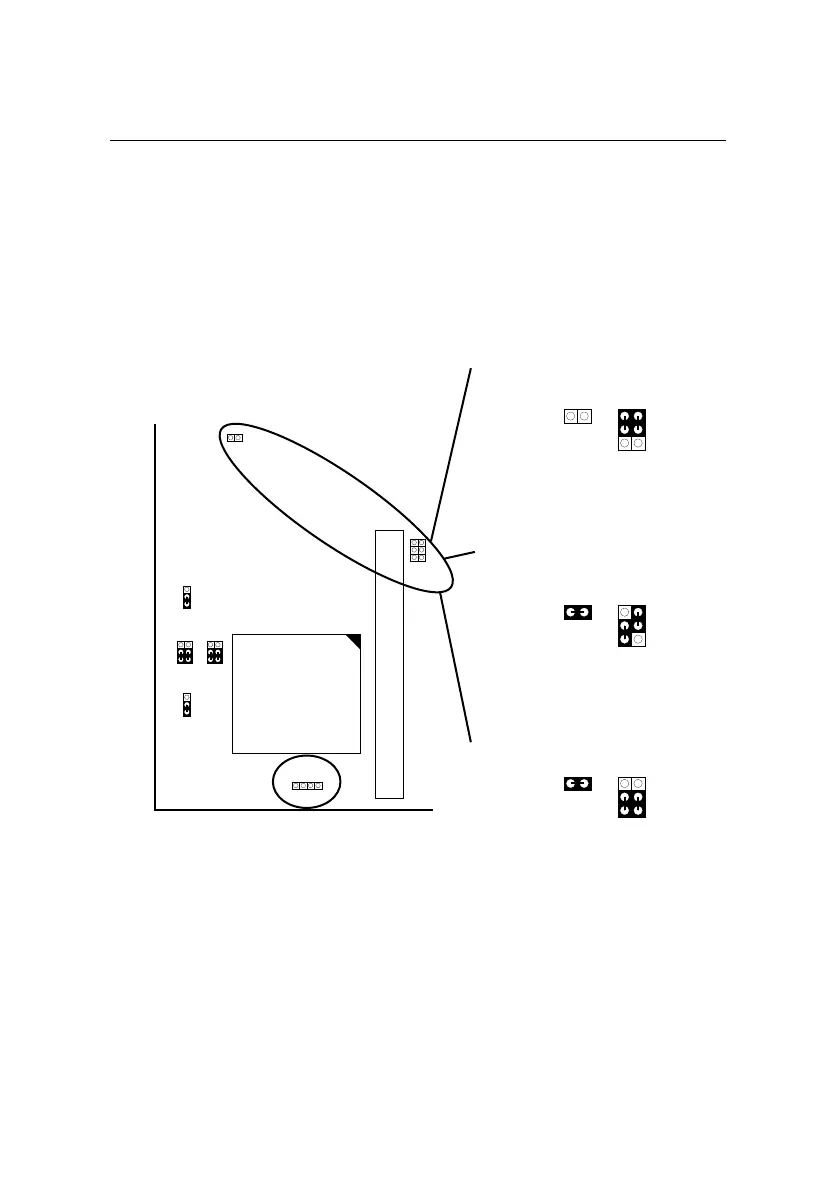

Figure 2Ð1. CPU Type Configuration
