5 Assembly
5.1 Unpacking and transportation
Inspect the butterfly valve for transport damage when unpacking. The protective caps
must only be removed immediately before assembly. The valve must be stored on a
suitable base and protected against dirt until installed.
The valve must be stored in a cool, dry, clean place, not in direct contact with the floor.
The valve must always be protected against dirt during storage and assembly, see also
Technical Information sheet, Ti-935 that is available at www.somas.se.
Warning!
When transporting and handling the valve, observe the weight of the valve or of the whole unit.
Do not walk under suspended loads.
Transportation must be carried out with suitable hoisting equipment as shown in (➔ Fig.5-
1/a) and (
➔ Fig.5-1/b). The picture shows a standard situation. Please note that all possible
situations that can occur cannot be covered in this lift instruction.

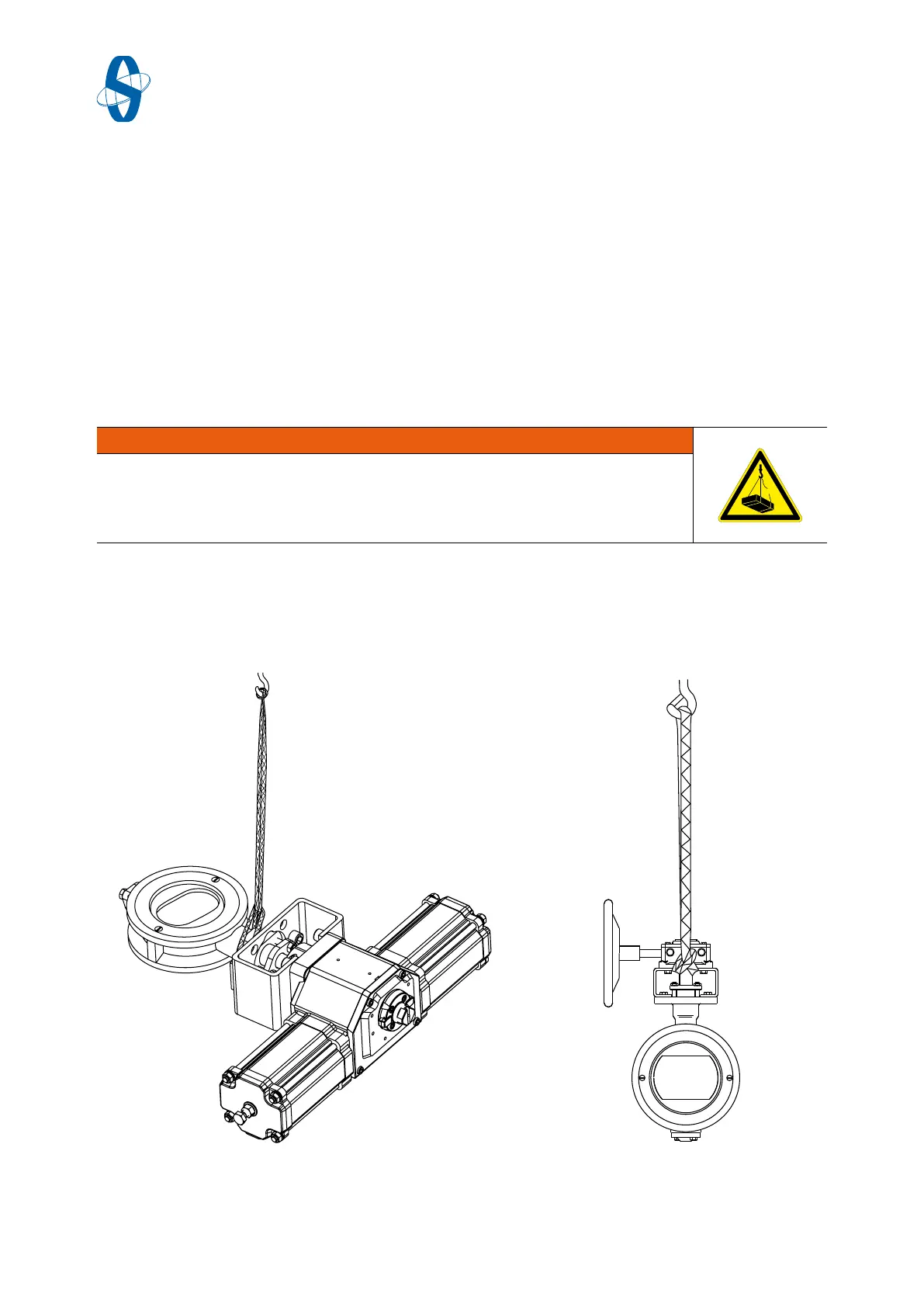

Fig.5-1/a Lifting Fig.5-1/b Lifting
