SOMAS MTV - 6.10 Components; MTV DN 80-150, with Metal Seat

52
18
14
15
20
19
1
2
10
7
8
3
6
4
9
Edition: 2021-04 Original document - Mi-205 EN
6.10 Components
6.10.1 MTV DN 80-150, with metal seat

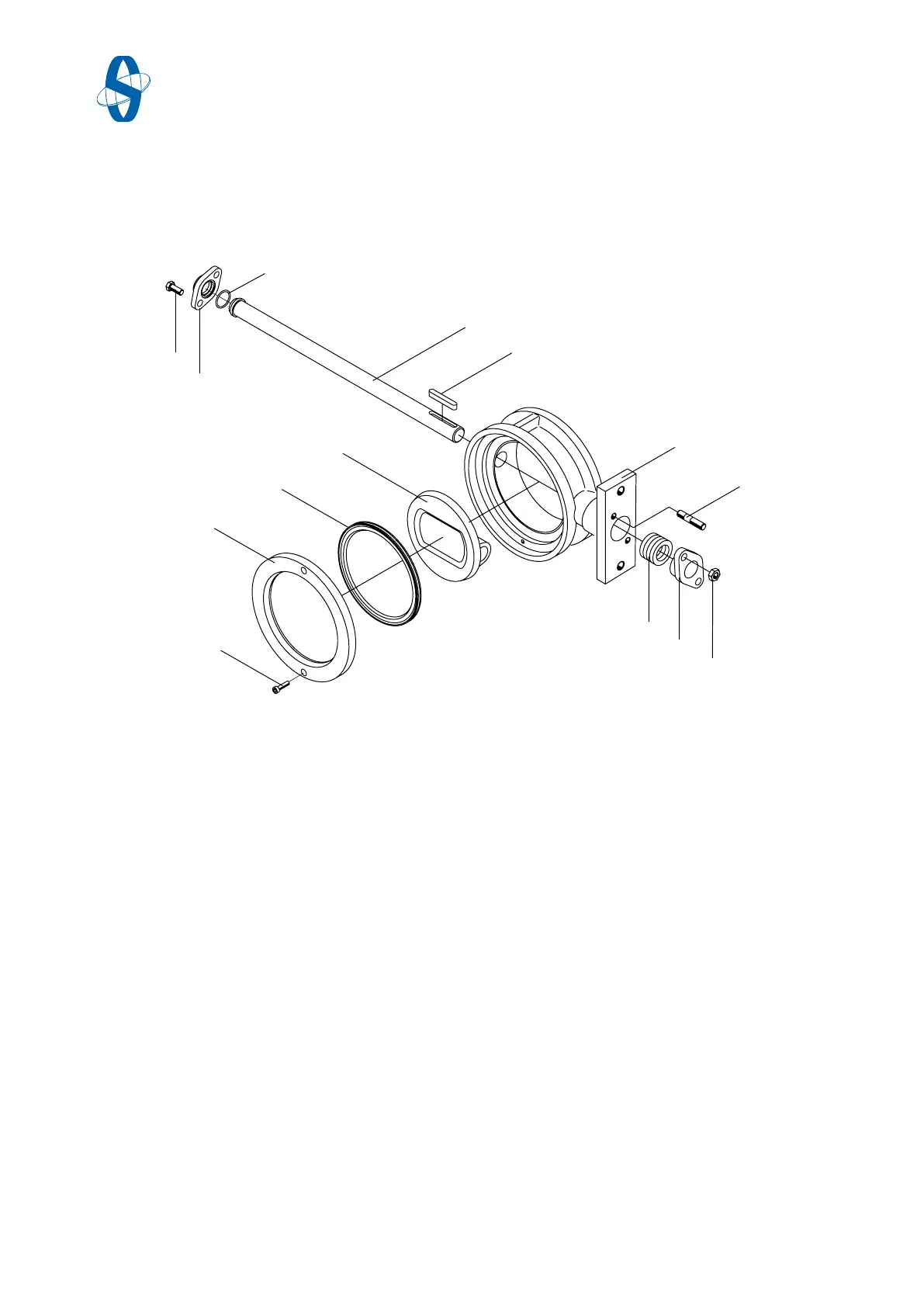

Fig.6-11 DN 80-150, with metal seat
1 Key 6 Stuffing box gland 10 Cover plate 19 Plug
2 Shaft 7 Valve body 14 Seat 20 Screw
3 Stud 8 Stuffing box kit 15 Disc
4 Nut 9 Screw 18 Gasket
Following parts are included in the sealing kit for valves with metal seat:
DN 80-150: Pos. No. 1, 8, 14 and 18.
