SOMAS MTV - FSV DN 100-150, with Fire Safe Seat

58
9
10
32
33
14
15
8
6
1
2
7
21
3
18
19
20
4
34
Edition: 2021-04 Original document - Mi-205 EN
6.10.7 FSV DN 100-150, with Fire safe seat

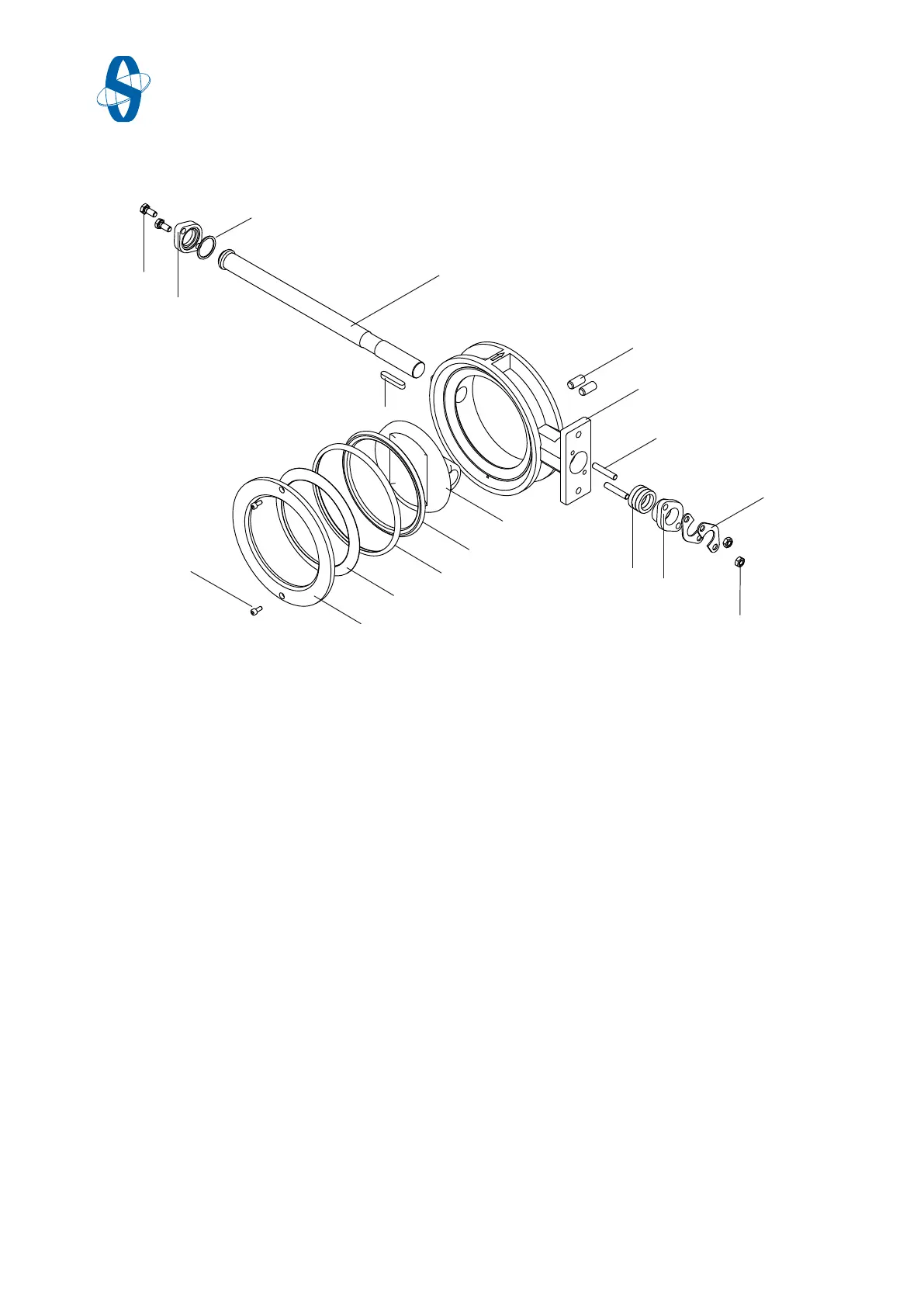

Fig.6-17 DN 100-150, with Fire safe seat
1 Key 6 Box gland 10 Cover plate 19 Plug 32 Fire safe seat
2 Shaft 7 Valve body 14 Seat complete 20 Screw 33 Guide ring
3 Stud 8 Stuffing box kit 15 Disc 21 Cyl. pin 34 Safety plate
4 Nut 9 Screw 18 Gasket
The following parts are included in sealing kits for valves with Fire safe seats:
DN 100-150: Pos. no. 1, 8, 14, 18, 32 and 33.
