SOMAS MTV - MTV DN 200-300, with PTFE Seat

56
18
20
19
14
15
10
7
8
3
6
4
2
1
17
9
Edition: 2021-04 Original document - Mi-205 EN
6.10.5 MTV DN 200-300, with PTFE seat

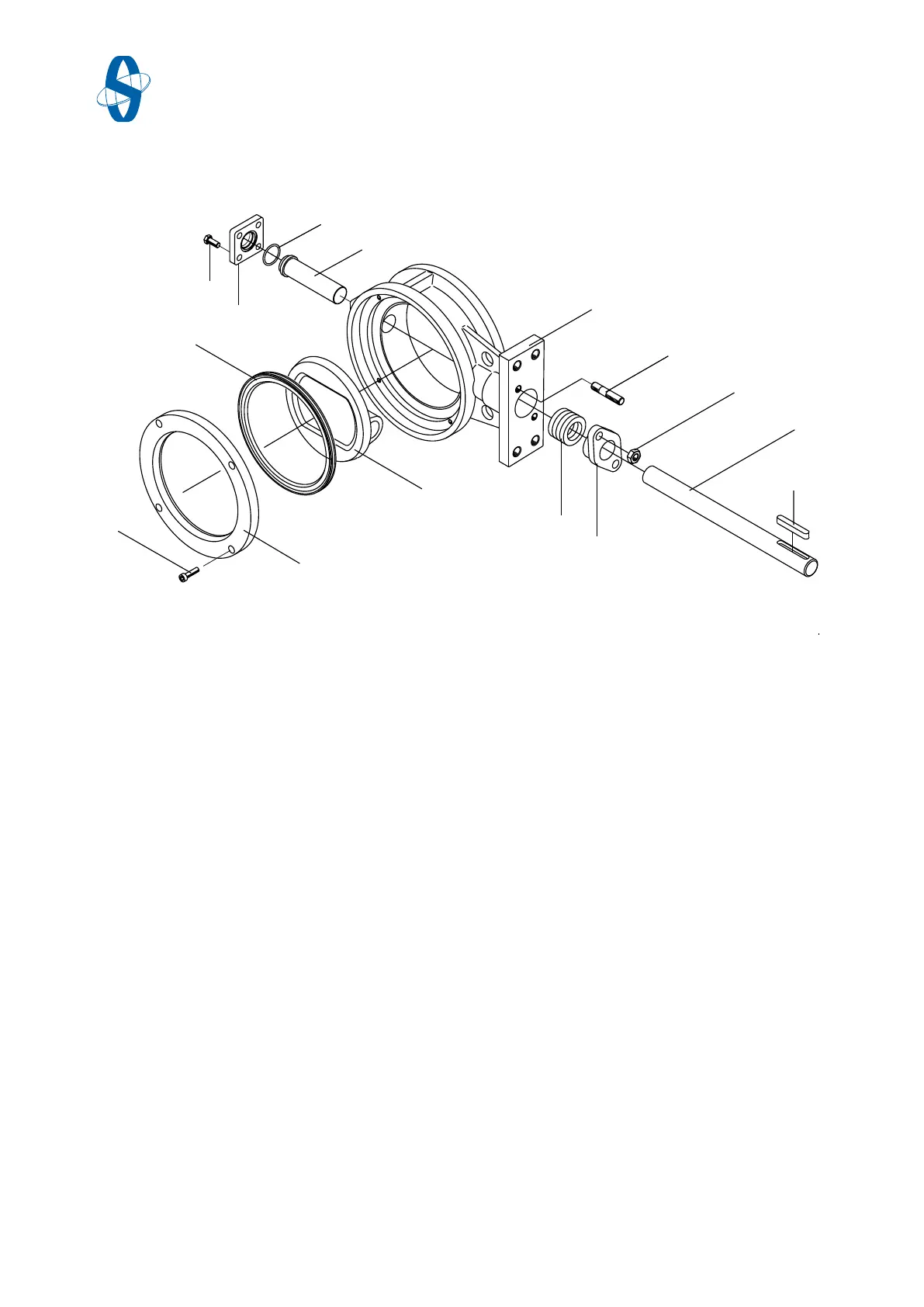

Fig.6-15 DN 200-300, with PTFE seat
1 Key 6 Stuffing box gland 10 Cover plate 19 Plug
2 Shaft, upper 7 Valve body 14 Seat complete 20 Screw
3 Stud 8 Stuffing box kit 15 Disc
4 Nut 9 Screw 18 Gasket
Following parts are included in the sealing kit for valves with PTFE seat:
DN 200-300: Pos. No. 1, 8, 14 and 18.
