SOMAS MTV - MTV DN 200-300, with Metal Seat

53
9
18
20
19
7
8
3
6
4
2
1
17
14
15
10
Original document - Mi-205 EN Edition: 2021-04
6.10.2 MTV DN 200-300, with metal seat

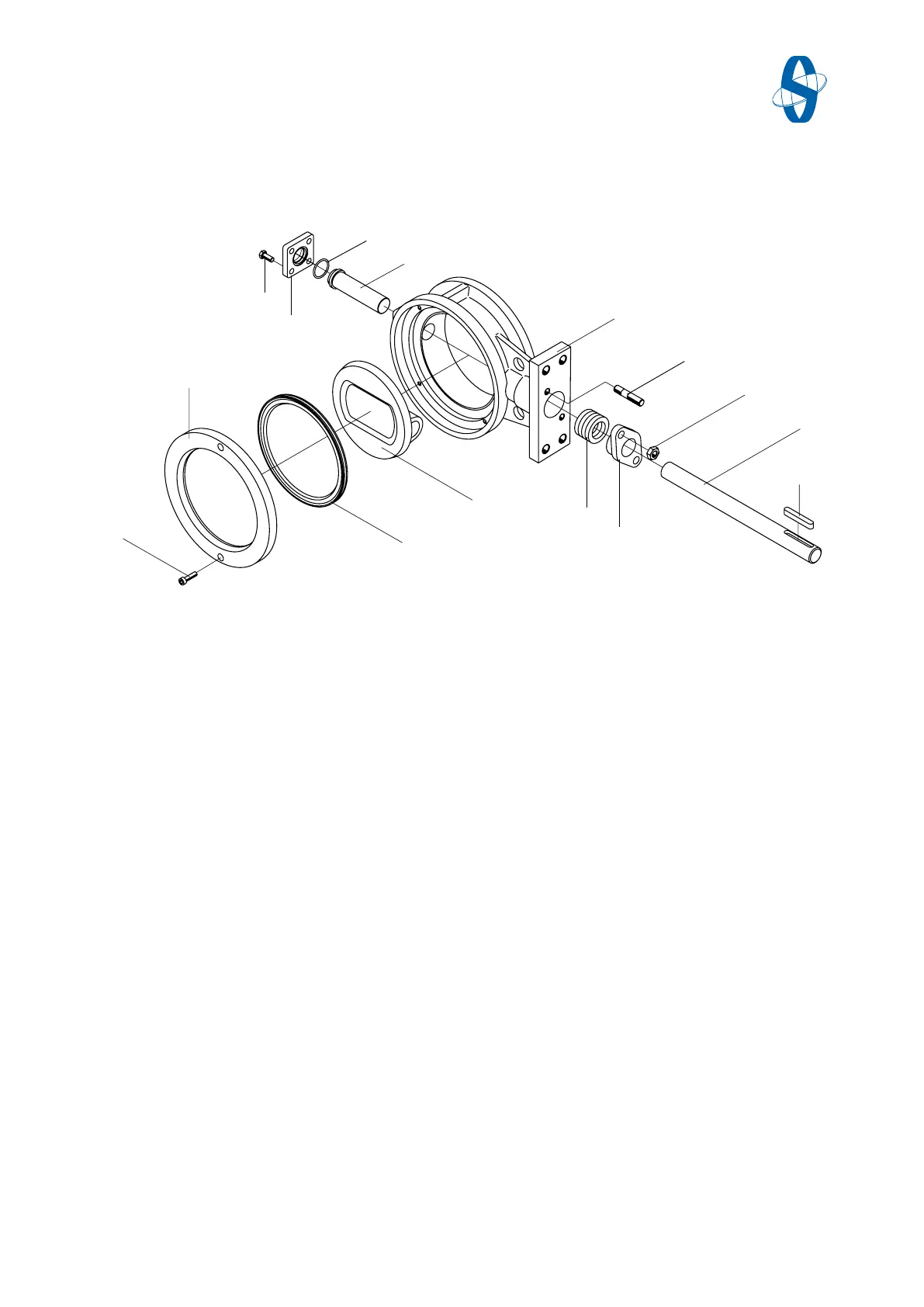

Fig.6-12 DN 200-300, with metal seat
1 Key 6 Stuffing box gland 10 Cover plate 18 Gasket
2 Shaft, upper (DN 200-500) 7 Valve body 14 Seat 19 Plug
3 Stud 8 Stuffing box kit 15 Disc 20 Screw
4 Nut 9 Screw 17 Shaft, lower (DN 200-500)
Following parts are included in the sealing kit for valves with metal seat:
DN 200-300: Pos. No. 1, 8, 14 and 18.
