SOMAS MTV - MTV DN 80-150, with PTFE Seat

55
18
14
15
20
19
1
2
10
9
7
8
3
6
4
Original document - Mi-205 EN Edition: 2021-04
6.10.4 MTV DN 80-150, with PTFE seat

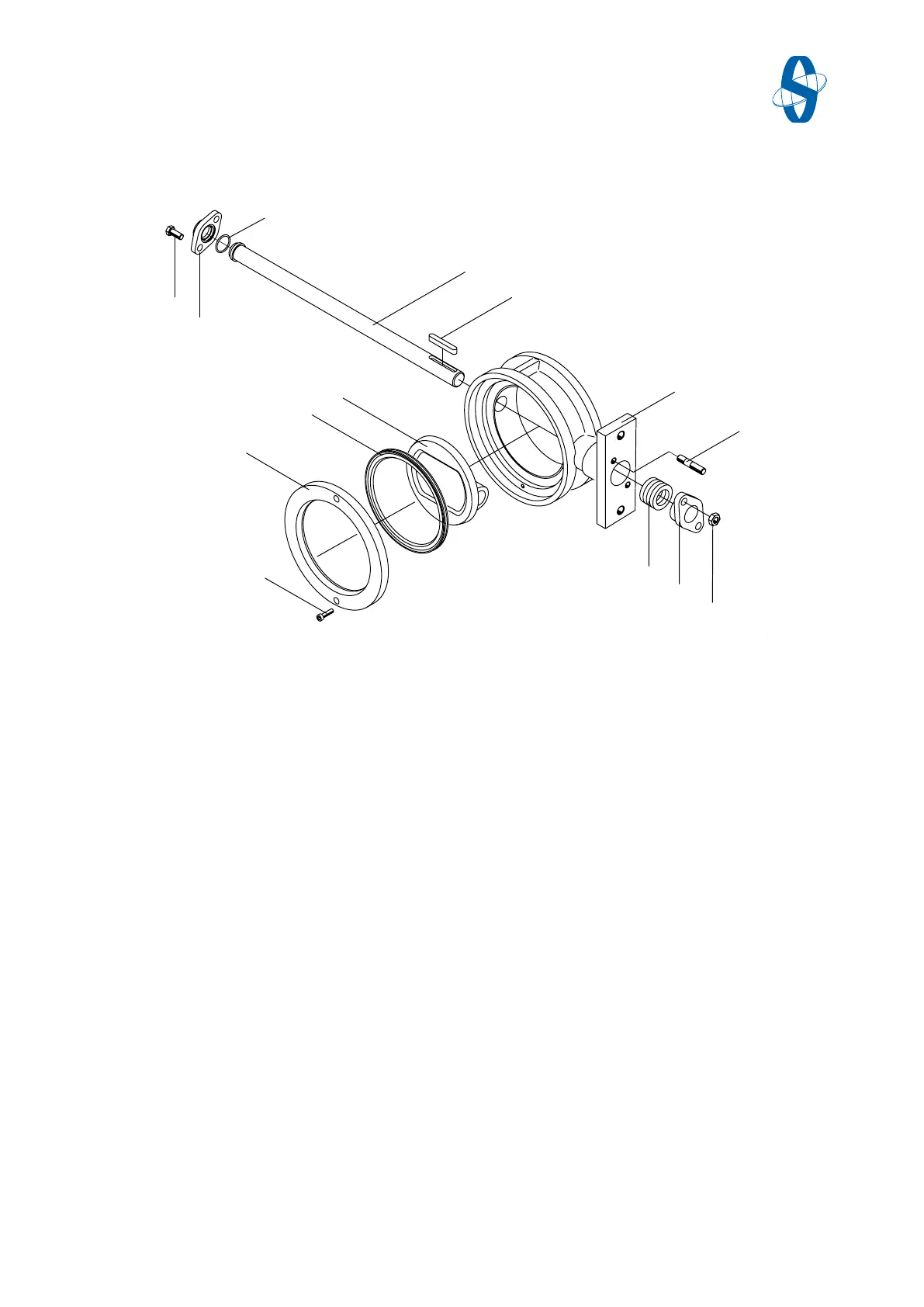

Fig.6-14 DN 80-150, with PTFE seat
1 Key 6 Stuffing box gland 10 Cover plate 19 Plug
2 Shaft, upper (DN 200-500) 7 Valve body 14 Seat complete 20 Screw
3 Stud 8 Stuffing box kit 15 Disc
4 Nut 9 Screw 18 Gasket
Following parts are included in the sealing kit for valves with PTFE seat:
DN 80-150: Pos. No. 1, 8, 14 and 18.
