Somatex Maco Multi Matic - Tool Description and Spare Part List

18

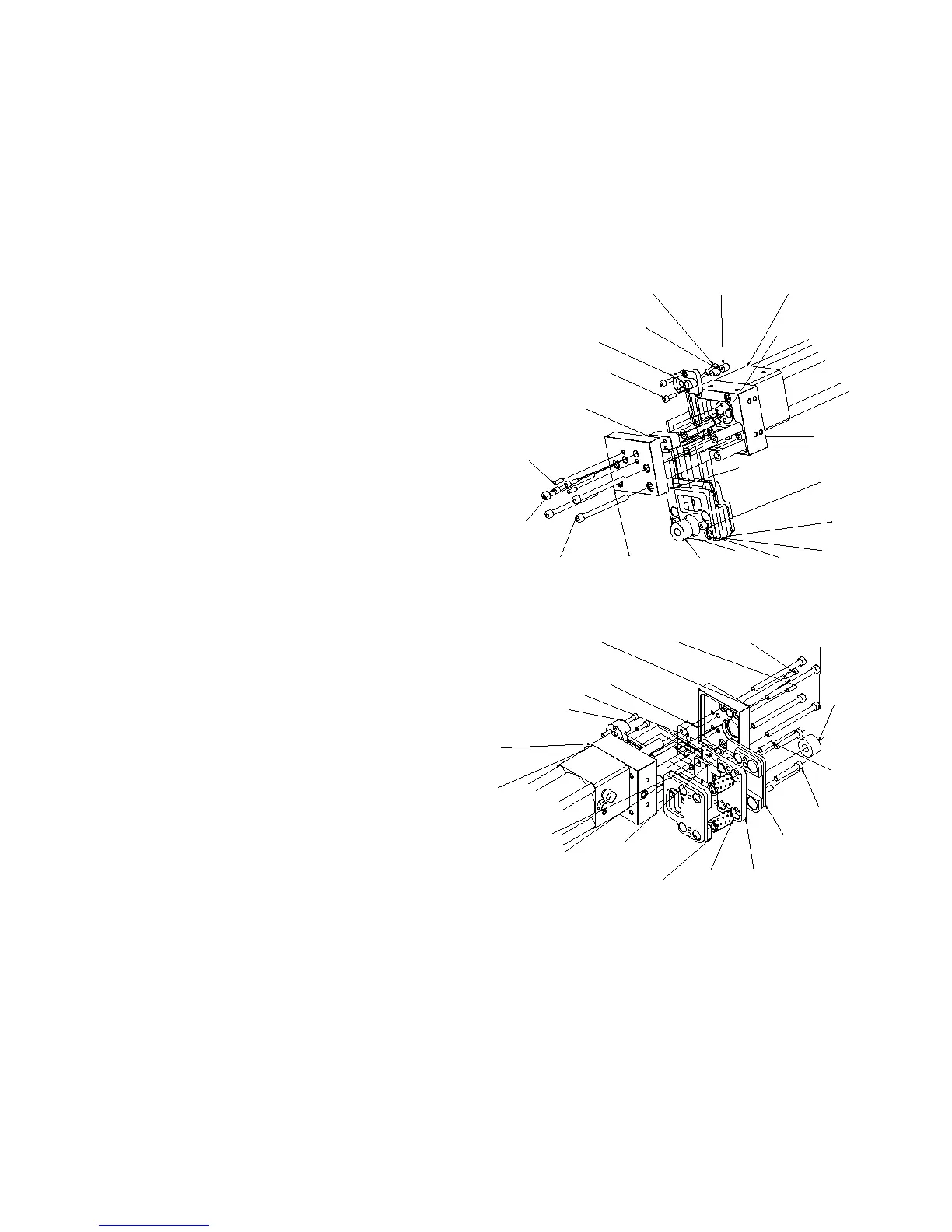

9.4 Tool description/ spare part list
Attention: When ordering spare parts, please specify the assembly type of the cropper
(Assembly right or left) !
14
2
8
3
6
11
13
14
15
7
9
16
10 18
1
4
5
21
12
17
5
22
6
13
14
15
11
7
21
3
19
4
8
2
9
1
10
20
12
OBJECT QTY.
PART NUMBER
1
1
05 05 00 1000 Pressure intensifier
2
1
05 05 01 0001 Maco Die
3
1
05 05 01 0002 Die bearing at rear
4
1
05 05 01 0003 Die bearing in front
5
2
DIN 912 M8x50.
6
1
FIBROFLEX-Round spring
D32-13,5 23long 80ShoreA
7
1
05 05 01 0006 Maco Cutting punch
8
2
Guide bush D16-22 40 long
with grease
9
1
05 05 01 0007 Maco Cutting punch
10
1
05 05 01 0008 Maco piercing punch
11
1
05 05 01 0004 Counter bearing
12
4
05 05 01 0005 Guide bolts
13
4
DIN 912 M8x110.
14
4
DIN 912 M6x20.
15
3
DIN 6325-A 6x20-St.
16
1
05 05 00 0013 Pressing bolt
17
1
05 05 00 0014 Disk
18
1
FIBROFLEX-Round spring
D12 12long 90ShoreA
19
1
05 05 01 0009 Maco Fiber device
20
1
05 05 01 0010 Threaded disk M5
21
1
DIN 7991 M5x10.
22
2
DIN 6325-A 8x40-St.
