Scribble Pad
A scribble pad is provided at the bottom for user labelling of the
channel function . This is useful to remind a producer or presenter
which channels contain which segments of audio. It is advisable to use
a non-permanent pen or pencil in case of changes.
Fader
The 100mm VCA fader provides a method of dynamic in-show level
control and operates between fully attenuated in its lowest position
and unity gain when fully open. The channel input signal is routed
to the PGM output whenever the fader is open, and the ON button is
selected. If using the auxiliary bus post fade, the fader position also
aects the level of the channel on the auxiliary buses. The faders can
be forced up for remote control applications using one of the General
Purpose Inputs.

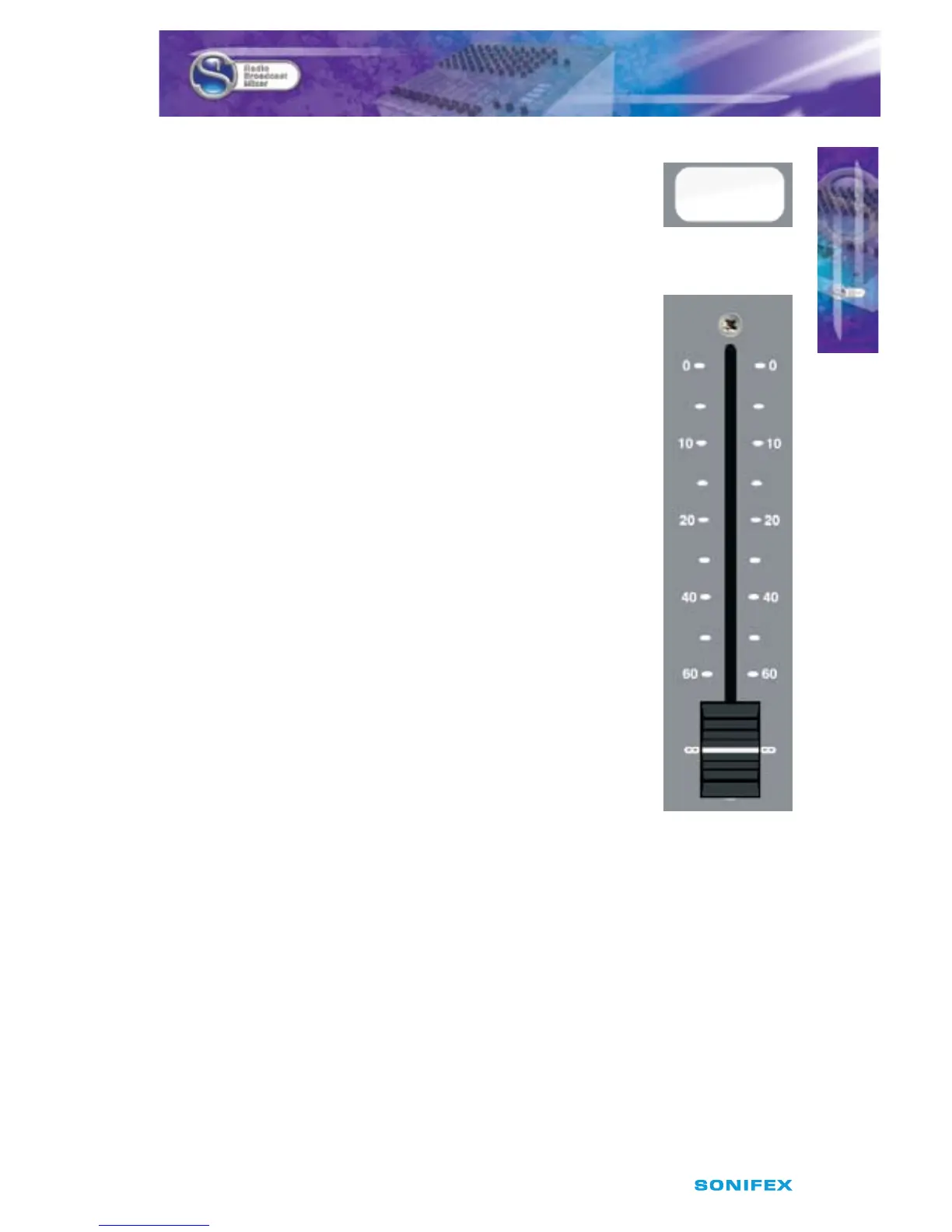

Fig 2-22: Scribble Pad
Fig 2-23: Fader
