CONNECTORS AND CABLING
CONNECTORS AND CABLING

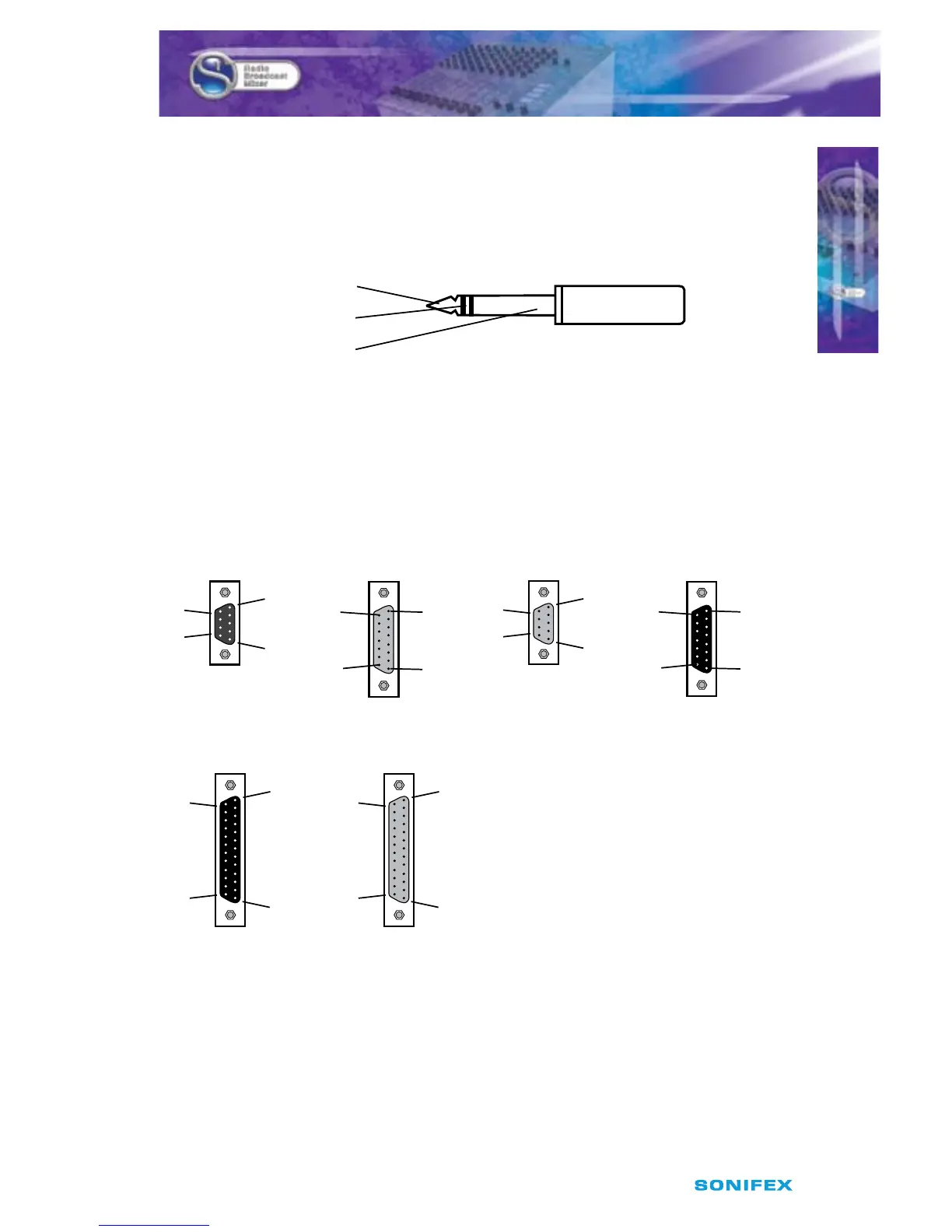

6.35mm ‘A’ Gauge Stereo Jack Plugs
‘A’ Gauge Stereo Jack Plugs can be connected as follows:
Tip - Left Signal
Ring - Right Signal
Sleeve - Ground (Screen) Signal
Tip - T/B Signal
Ring - Control Signal (T/B In)
Sleeve - Common
¼“ ‘A’ Gauge Stereo Jack Plug used for T/B in and T/B Out
¼“ ‘A’ Gauge Stereo Jack Plug
used for Headphones and Monitors
Fig 5-4: 6.35mm ‘A’ Gauge Stereo Jack Plugs
D Type Connectors
Several dierent D type connectors are used on the S1. A 25 pin plug is used for the
remotes. A 9 pin socket is use for the external inputs, Auxiliary outputs, RS232, & Talkback
Interface. A 15 pin socket is used for the meter bridge interface.
9 Pin D-Type Plug used
for Remotes and Ext Inputs
Pin 6
Pin 15
Pin 8
Pin 1
Pin 1
Pin 9
Pin 9
Pin 5
15 Pin D-Type Socket used for Analogue
Outpus and Mute Relays
9 Pin D-Type Socket used
for Remotes and Ext Inputs
Pin 9
Pin 9
Pin 1
Pin 8
Pin 5
Pin 6
Pin 15
Pin 1
15 Pin D-Type Plug used for Analogue
Outpus and Mute Relays
Pin 14
Pin 14
Pin 1
Pin 1
Pin 13
Pin 13
Pin 25
Pin 25
25 Pin D-Type Plug
used for Audio Inputs
25 Pin D-Type Socket
used for Remotes
List of ports:
9 way d type socket
Fig 5-5: D Type Connectors
