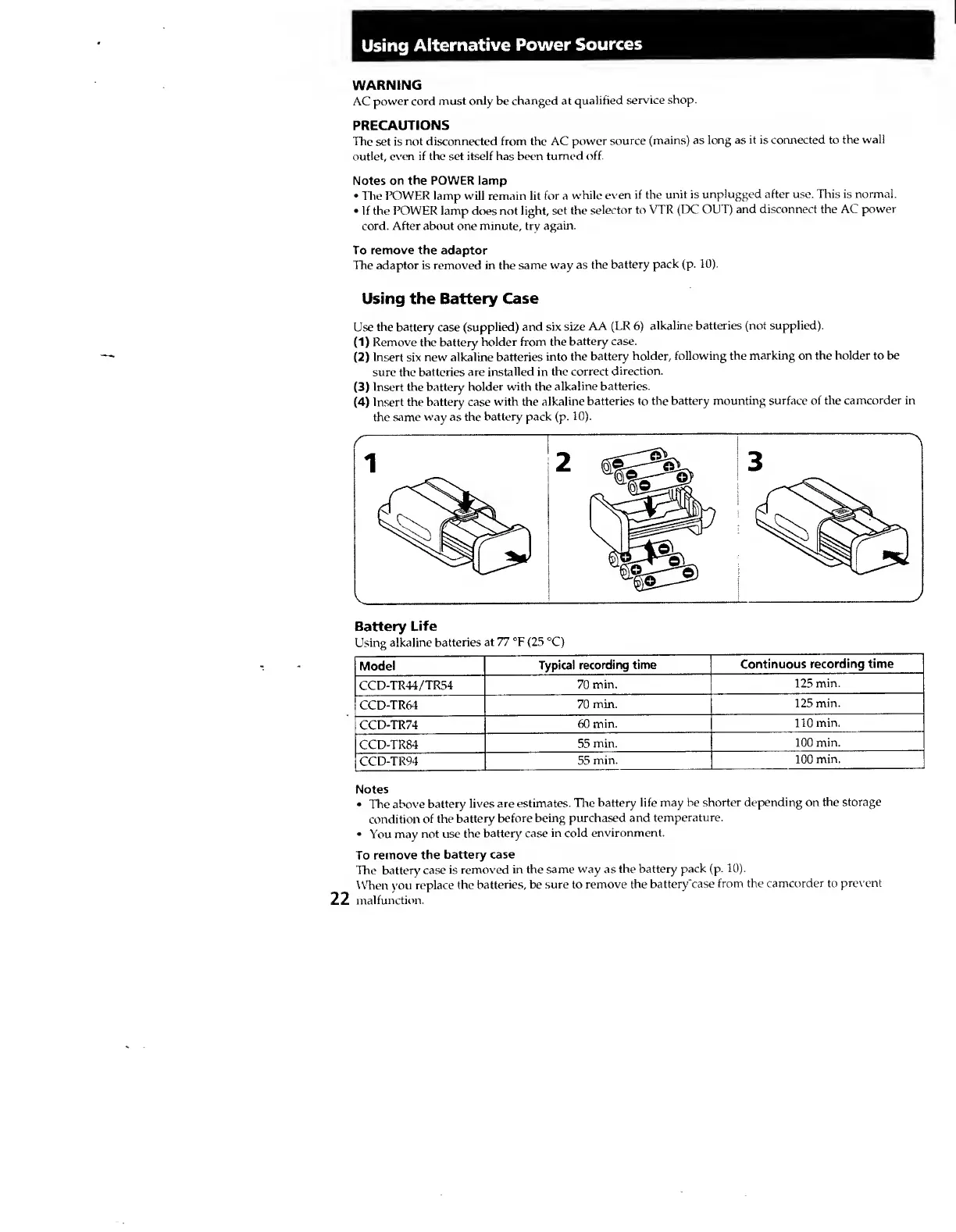

Sony CCD-TR44 - Page 22

Using Alternative Power Sources
WARNING
AC power cord must only be changed at qualified service shop.
PRECAUTIONS
The set is not disconnected from the AC power source (mains) as long as it is connected to the wall
outlet, even if the set itself has been turned off.
Notes on the POWER lamp
• Ihe POWER lamp will remain lit for a while even if the unit is unplugged after use. Tlris is normal.
• If the POWER lamp does not light, set the selector to VTR (DC OUT) and disconnect the AC power
cord. After about one minute, trv again.
To remove the adaptor
The adaptor is removed in the same way as the battery pack (p. 10).
Using the Battery Case
Use the battery case (supplied) and six size AA (LR 6) alkaline batteries (not supplied).
( 1 ) Remove the battery holder from the battery case.
( 2 ) Insert six new alkaline batteries into the battery holder, following the marking on the holder to be
sure the batteries are installed in the correct direction.
(3) Insert the battery holder with the alkaline batteries.
(4) Insert the battery case with the alkaline batteries to the battery mounting surface of the camcorder in
the same way as the battery pack (p. 10).
Battery Life
Using alkaline batteries at 77 °F (25 °C)
Model
Typical recording time
Continuous recording time
CCD-TR44/TR54
70 min.
125 min.
CCD-TR64
70 min.
125 min.
CCD-TR74
60 min.
110 min.
CCD-TR84
55 min.
100 min.
CCD-TR94
55 min.
100 min.
Notes
• The above battery lives are estimates. Tire battery life may be shorter depending on the storage
condition of the battery before being purchased and temperature.
• You may not use the batter)' case in cold environment.
To remove the battery case
The battery case is removed in the same way as the battery pack (p. 10).
When ^'OU replace the batteries, be sure to remove the battery'case from the camcorder to prevent
22 malfunction.
