5-2
CCD-TRV128/TRV228/TRV228E/TRV328/TRV428/TRV428E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

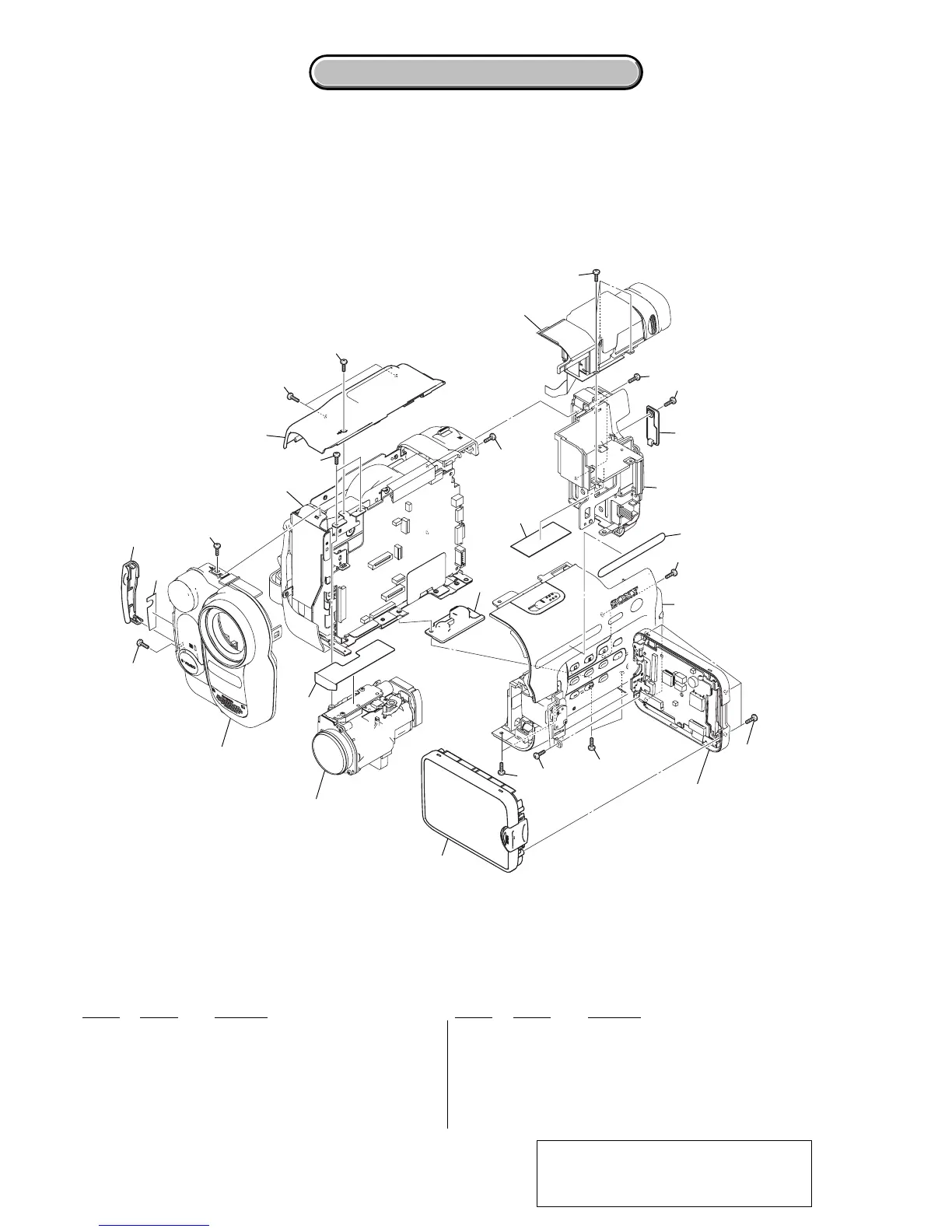

5-1-1. OVERALL ASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
1 X-3953-964-1 CABINET (C) (515) ASSY, P
2 3-080-203-31 SREW (M2), LOCK ACE, P2
3 3-087-813-01 COVER (51), JACK
4 3-087-812-01 SHEET (51), JACK
5 3-087-811-01 CABINET (UPPER) (51)
6 3-078-889-11 SCREW (M1.7)
7 3-087-810-01 LID (51), CPC
8 CAUTION RETAINER (51), EVF FLEXIBLE
9 3-079-012-01 SCREW (30), TRIPOD
10 3-087-831-01 LABEL (51) (TRV128/TRV228/TRV228E)
10 3-087-831-11 LABEL (51) (TRV328/TRV428/TRV428E)
11 3-080-204-21 SCREW TAPPING, P2
5-1. EXPLODED VIEWS
ns
1
2
2
3
4
Front panel block
(See page 5-3.)
Battery panel bloc
k
(See page 5-8.)
Cabinet R bloc
k
(See page 5-6.)
MD frame block
(See page 5-9.)
Lens block
(See page 5-4.)
LCD block
(See page 5-5.)
2
5
6
7
8
9
10
2
2
2
2
2
2
2
11
11
11
EVF block
(See page 5-7.)
CAUTION :
For the part of 8 : RETAINER (51), EVF FLEXIBLE
(3-088-616-01), cut WOVEN (T0.25), FABRIC NON
(3-076-631-01) into the desired length and use it.
