Sony CCD-TRV128 - Lens Block

5-4
CCD-TRV128/TRV228/TRV228E/TRV328/TRV428/TRV428E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
(Note) Be sure to read “Precuations for Replacement of CCD
Imager” on page 4-8 when changing the CCD imager.
Ref. No. Part No. Description Ref. No. Part No. Description
101 8-848-765-01 DEVICE, LENS LSV-820A
102 1-758-865-11 FILTER BLOCK OPTICS
103 3-053-973-01 RUBBER (W), SEAL
104 A-7111-944-A CD-465 BOARD, COMPLETE
(TRV228E/TRV428E)
104 A-7111-945-A CD-465 BOARD, COMPLETE
(TRV128/TRV228/TRV328/TRV428)

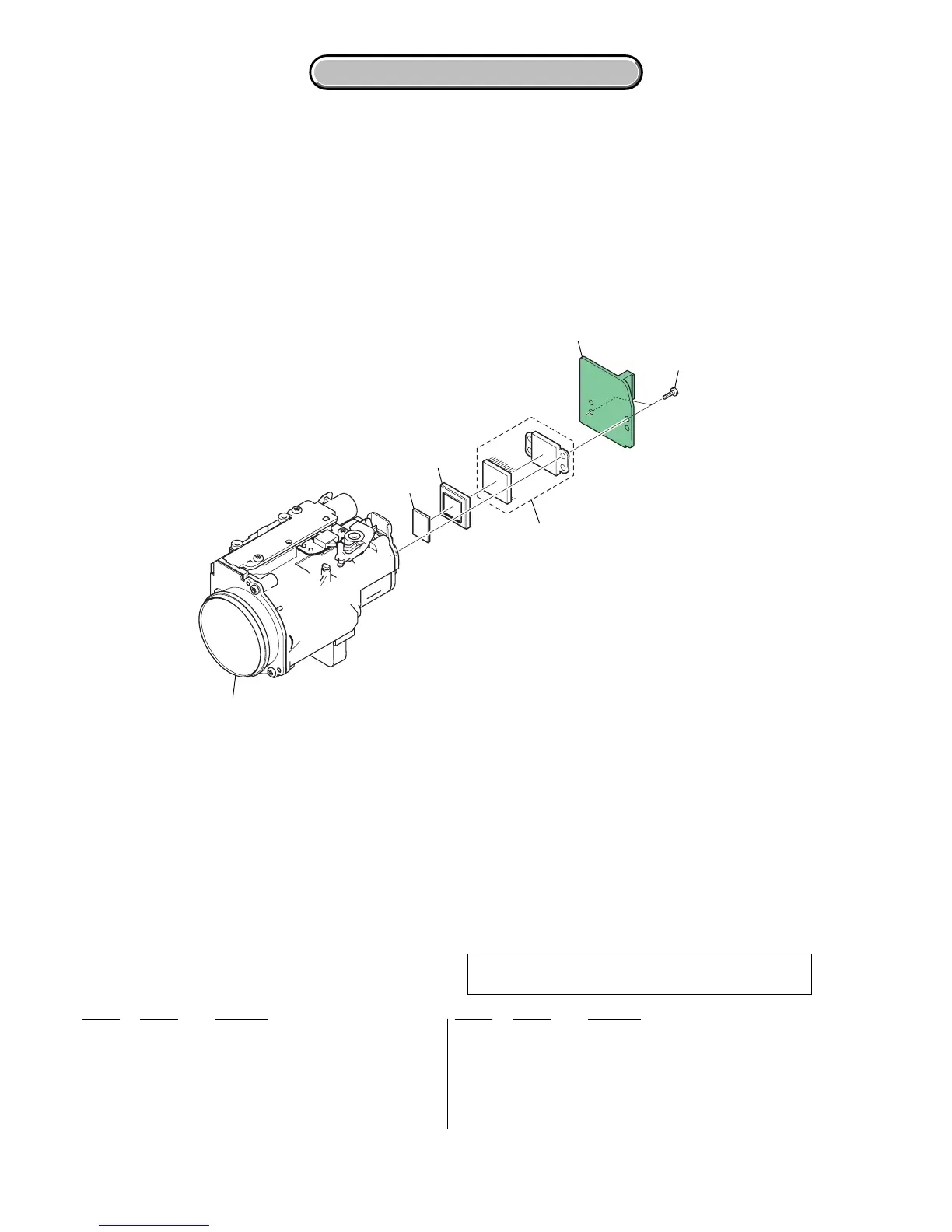

5-1-3. LENS BLOCK
105 3-080-204-21 SCREW, TAPPING, P2
IC951 A-7013-219-A CCD BLOCK ASSY (CCD IMAGER)
(TRV128/TRV228/TRV328/TRV428) (Note)
IC951 A-7013-276-A CCD BLOCK ASSY (CCD IMAGER)
(TRV228E/TRV428E) (Note)
CD-465
101
102
103
104
105
IC951
(Note)
