Sony CDX-M3DI - Front Panel Assy; Sub Panel (CD) Assy

10
CDX-M3DI/M1000TF

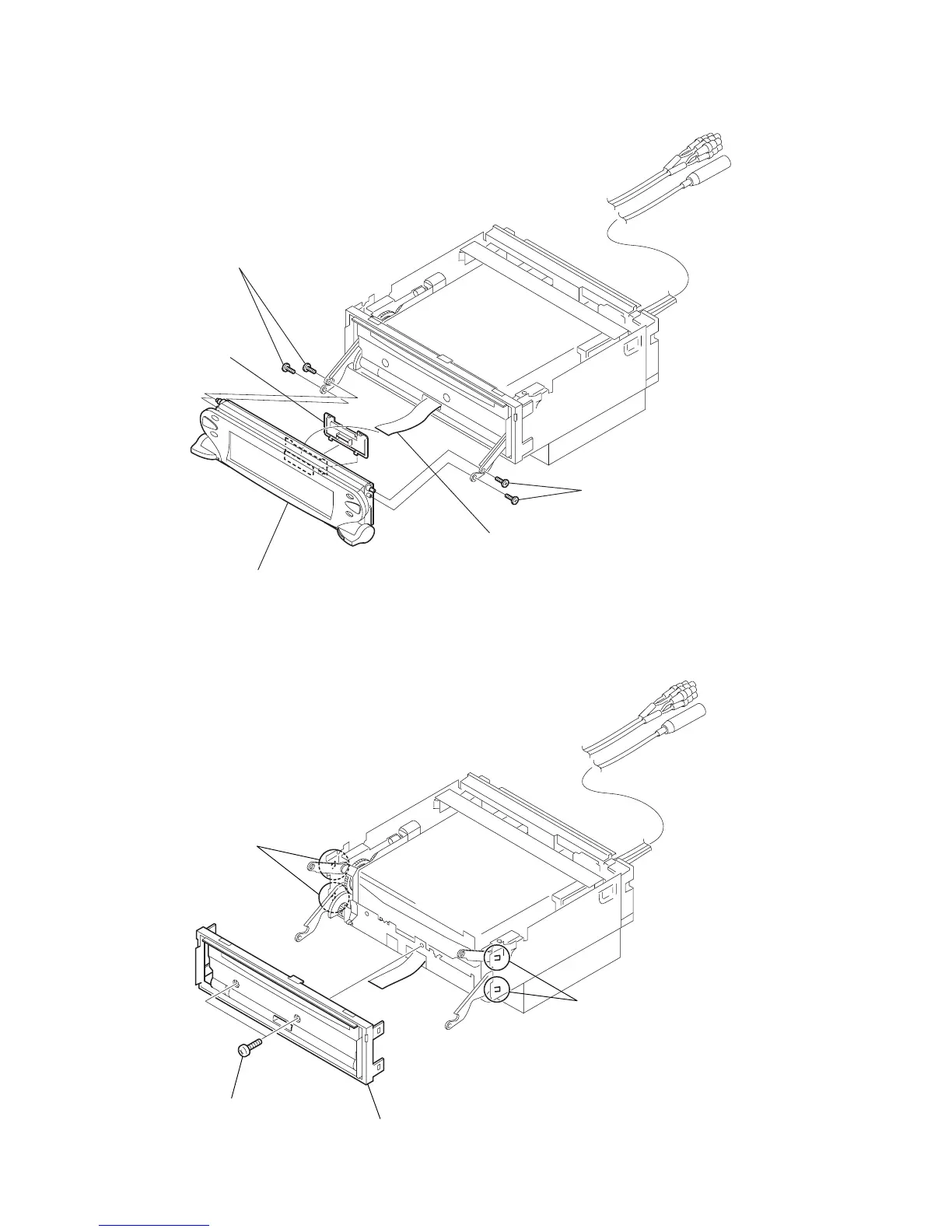

Note : Follow the disassembly procedure in the numerical order given.
2-1. FRONT PANEL ASSY
2-2. SUB PANEL (CD) ASSY
1 screws (thin head M1.4)
2 screws (thin head M1.4)
4 CN201
5 front panel assy
3 cover (FPC)
(Take care not to pull the
flexible board excessively)
1 PTT 2.6x6
4 sub panel (CD) assy
2 claws
3 claws
