Sony CDX-M3DI - 5 Exploded Views; Chassis Section

42
CDX-M3DI/M1000TF
SECTION 5
EXPLODED VIEWS
Ref. No. Part No. Description Remark

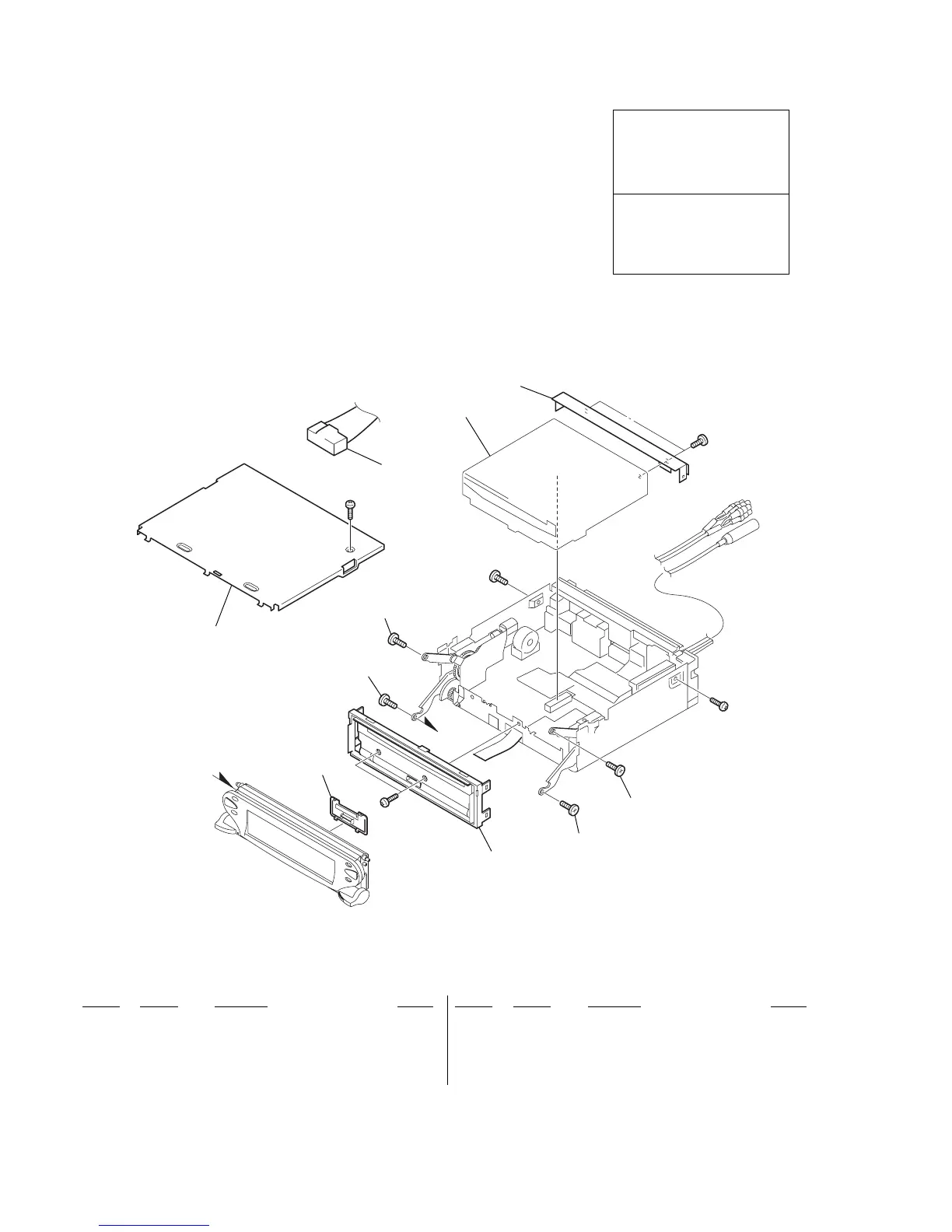

5-1. CHASSIS SECTION
Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
RR
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
1
2
3
A
A
#2
not supplied
MG-393MC-121
#1
#1
#1
#2
4
4
4
4
5
1 3-241-832-01 COVER (FPC)
2 1-776-207-72 CORD (WITH CONNECTOR) (POWER) (M3DI)
2 1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)
(M1000TF)
3 3-248-858-11 BRACKET (CD)
4 3-242-039-01 SCREW (THIN HEAD M1.4)
5 X-3383-092-1 PANEL (CD) ASSY, SUB (M3DI)
5 X-3383-097-1 PANEL (CD) ASSY, SUB (M1000TF)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-790-09 SCREW +PTT 2.6X4 (S)
