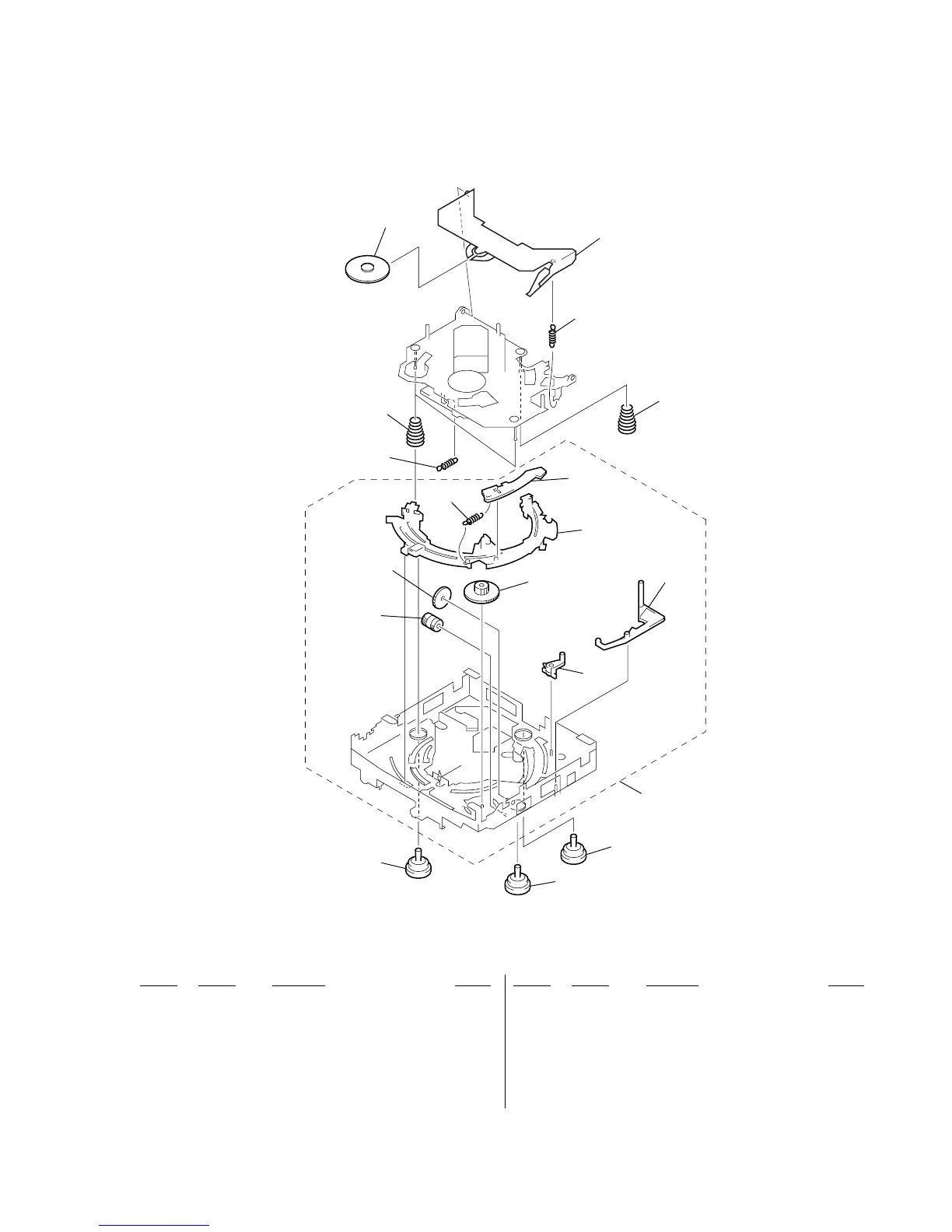

5-6. CD MECHANISM SECTION (2)
(MG-393MC-121)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 3-040-025-02 ARM, CHUCKING
252 3-040-031-01 DAMPER (T)
253 3-040-056-01 LEVER (D)
254 3-040-024-01 RETAINER (DISC)
255 3-040-054-01 WHEEL (LW), WORM
256 3-040-026-01 SPRING (CH), TENSION
257 3-040-032-01 SPRING (FL), COMPRESSION
258 3-040-033-01 SPRING (KF1), TENSION
259 A-3307-422-A CHASSIS (M) COMPLETE ASSY
260 3-040-059-01 SPRING (TR), TENSION
261 3-040-057-01 LEVER (LOCK)
262 3-040-058-01 GEAR (MDL)
263 3-040-052-01 WHEEL (U), WORM
264 3-040-051-02 LEVER (TR)
254
251
256
257
258
260
262
261
259
252
252
252
253
263
257
264
255
not supplied
