17
CDX-M3DI/M1000TF
SECTION 3
PHASE ALIGNMENT

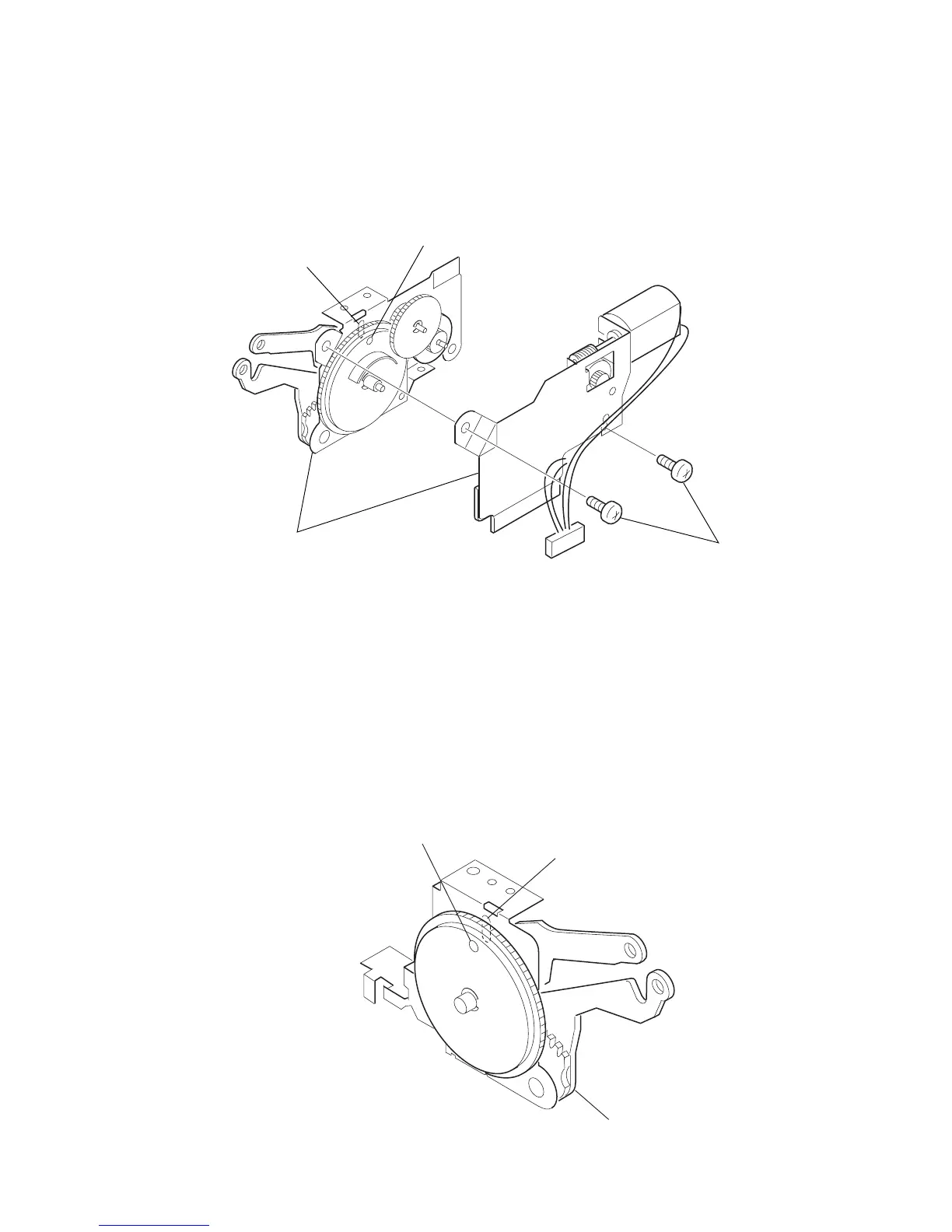

3-1. GEAR (CAM L)
3-2. GEAR (CAM R)
1 motor block assy
center mark
gear (cam L) position setting hole
2 PTT 2.6x
6
g
ear (cam R) position setting hole
center mark
cam block ass
y
• Align the gear (cam L) position setting hole with the center mark on
the bracket before screwing the motor block assy to the mechanism
chassis.
1 Align the gear (cam R) position setting hole with the center mark
on the bracket before screwing the cam block assy to the
mechanism chassis.
2 Touch the gear (cam R) with fingers in the direction of rotation
and make sure that there is no phase difference with the R-side
position setting hole.
