Sony CDX-M3DI - Main Board Section

44
CDX-M3DI/M1000TF

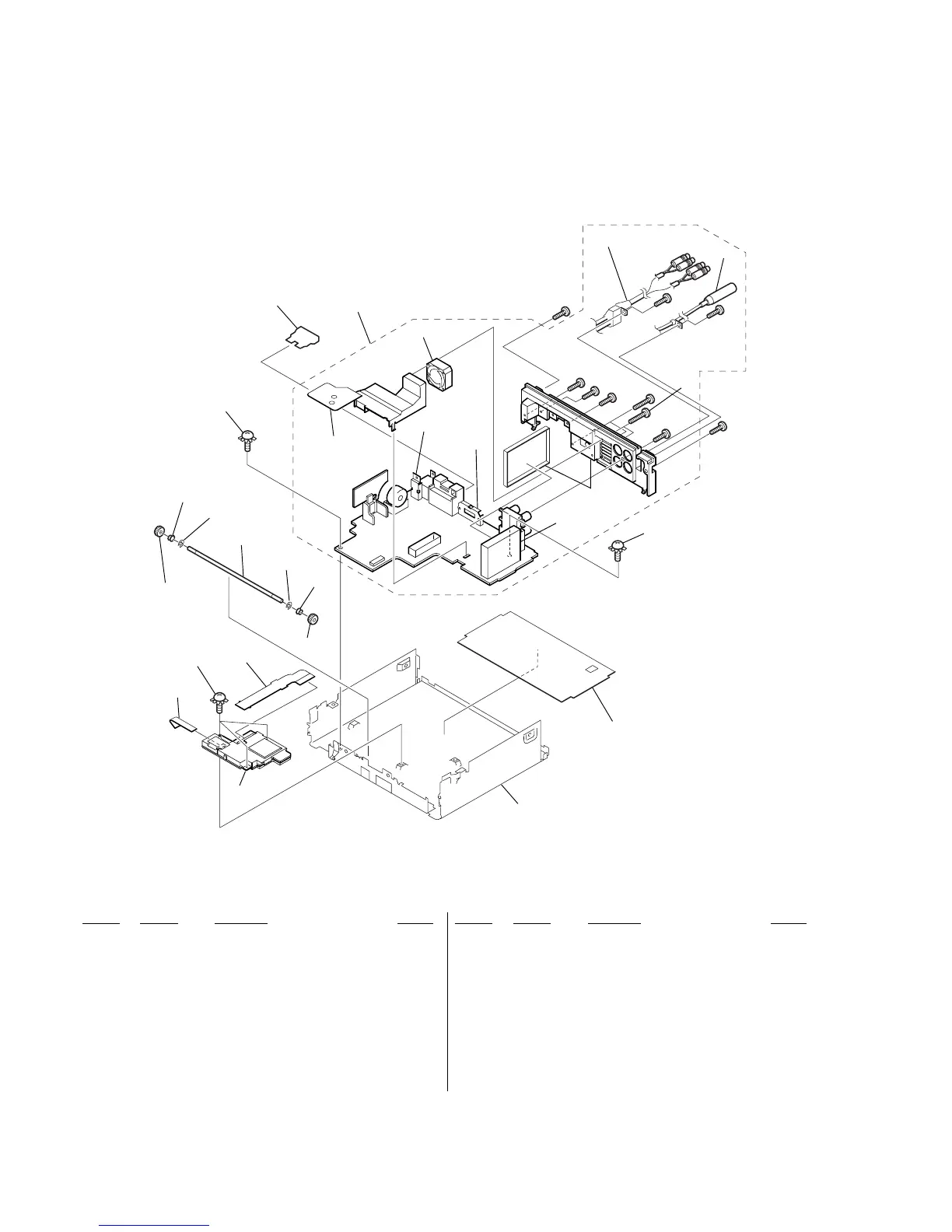

5-3. MAIN BOARD SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
101
F901
FAN691
#5
#5
#5
#5
#6
#5
#5
#5
#5
not supplied
not supplied
not supplied
not
supplied
TUX501
105
105
113
113
106
106
107
102
103
104
104
114
104
108
109
110
111
112
101 1-688-395-11 FLEXIBLE BOARD
102 A-3337-599-A DIGITAL BOARD, COMPLETE
103 1-827-154-11 CABLE, FLEXIBLE FLAT (25 CORE)
104 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
105 3-230-493-01 GEAR (DRIVE SHAFT)
106 3-230-444-01 GUIDE (DRIVE SHAFT)
107 3-243-674-01 SHAFT, DRIVE
108 A-3274-820-A MAIN BOARD, COMPLETE (M1000TF)
108 A-3337-600-A MAIN BOARD, COMPLETE (M3DI)
109 3-041-261-11 BRACKET (TR)
* 110 3-019-565-01 BRACKET (IC)
111 1-827-121-11 CORD, CONNECTION (AUDIO OUT FRONT/REAR)
112 X-3383-743-1 CORD (ANT) ASSY (ANTENNA)
113 3-040-692-01 RING, CE TYPE RETAINING
114 3-564-708-01 SCREW (+P 2X18) (TYPE2)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
FAN691 1-763-815-11 FAN, DC (25X25)
TUX501 A-3220-887-A TUNER UNIT (TUX-030)
#5 7-685-793-09 SCREW +PTT 2.6X8 (S)
#6 7-685-795-09 SCREW +PTT 2.6X12 (S)
