Sony CDX-M3DI - Front Panel Section

45
CDX-M3DI/M1000TF

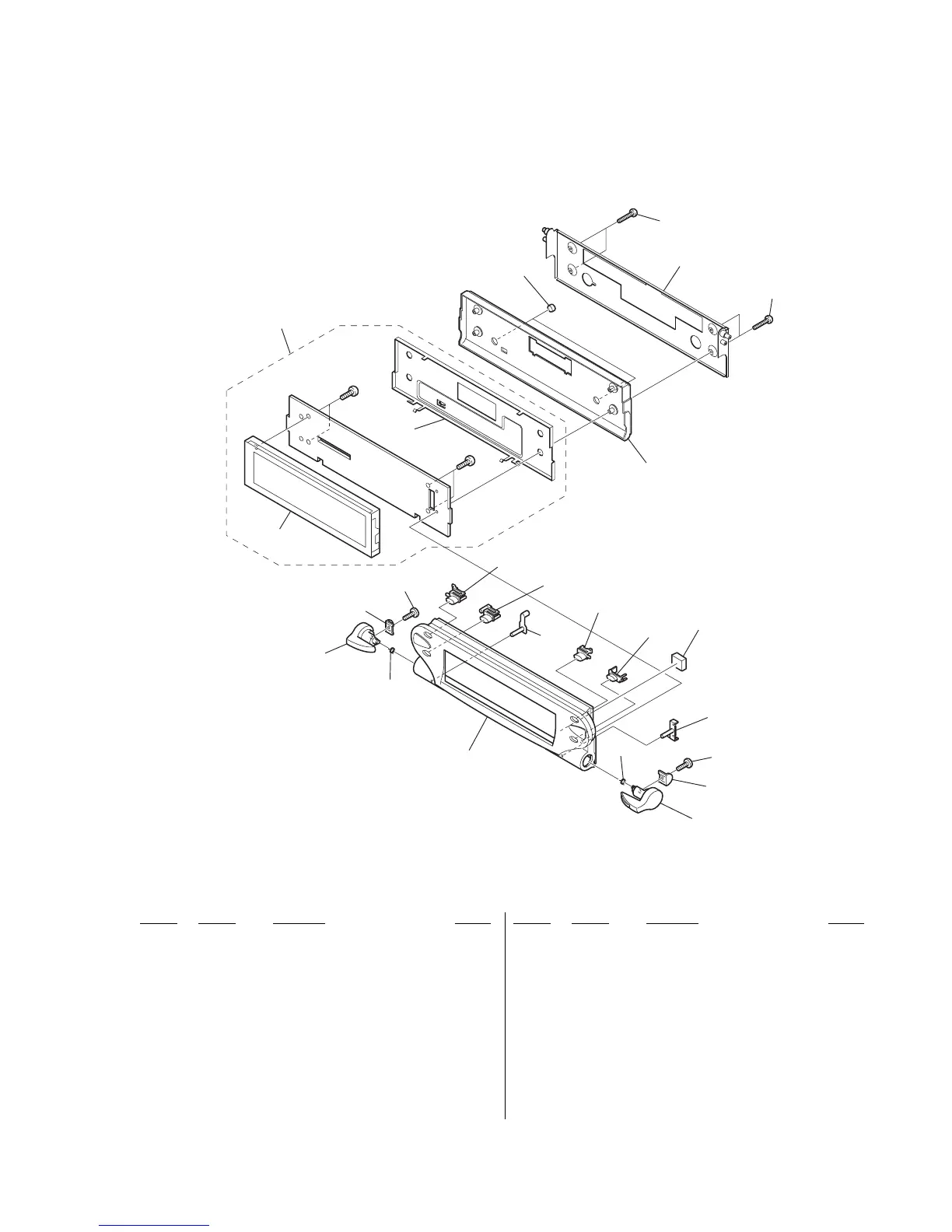

5-4. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
LCD201
#7
#7
151
152
153
154
157
156
158
159
160
161
162
154
153
163
165
164
164
166
167
168
169
155
155
151 A-3337-605-A PANEL (FRONT) ASSY (M3DI)
151 A-3337-616-A PANEL (FRONT) ASSY (M1000TF)
152 X-3383-785-1 LEVER (AMS.SVX) ASSY
153 3-241-842-01 CONTACT (TACT)
154 3-241-850-11 SPRING (LEVER)
155 3-244-319-01 SCREW (B2), TAPPING
156 3-241-840-01 RELAY (SHIFT)
157 3-231-433-01 CUSHION (ELECTROSTATIC)
158 3-241-847-01 FILTER (IR)
159 3-241-835-11 BUTTON (OPEN)
160 3-241-846-01 BUTTON (RESET)
161 3-241-845-11 BUTTON (MODE)
162 3-241-844-11 BUTTON (OFF)
163 3-241-843-01 LEVER (VOL)
164 3-564-708-91 SCREW (+P 2X14) (TYPE2)
165 A-3337-604-A DISPLAY BOARD, COMPLETE
166 3-241-870-02 PLATE (PANEL), SHIELD
167 3-241-834-01 PANEL (FRONT BACK)
168 3-241-849-11 CUSHION (FB)
169 X-3383-093-1 PANEL (BASE) ASSY
LCD201 1-477-252-11 INDICATOR UNIT (TFT)
#7 7-685-132-19 SCREW +P 2.6X5 TYPE2 NON-SLIT
