Sony CDX-M3DI - CD Mechanism Section (1)

46
CDX-M3DI/M1000TF

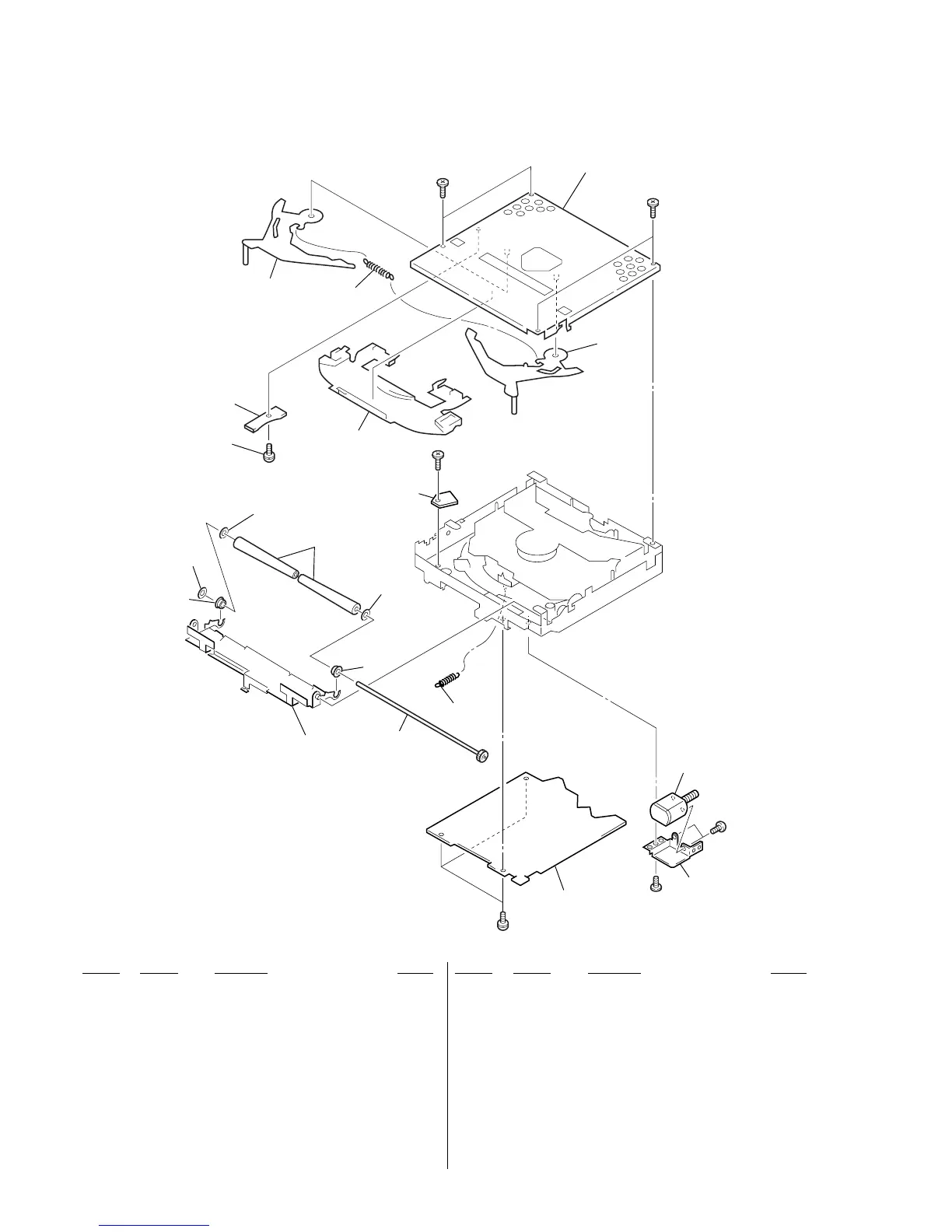

5-5. CD MECHANISM SECTION (1)
(MG-393MC-121)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
202
204
203
209
201
207
205
205
208
214
214
215
216
206
213
211
210
212
217
#8
#9
#8
#8
#8
#10
M903
201 A-3274-253-A DISC IN SW BOARD, COMPLETE
202 3-040-039-03 CHASSIS (T)
203 3-040-038-01 SPRING (LR), TENSION
204 3-040-050-01 LEVER (L)
205 3-040-022-01 RETAINER (ROLLER), SHAFT
206 3-040-044-01 ROLLER (S)
207 3-040-067-01 LEVER (R)
208 A-3301-980-A SHAFT ROLLER ASSY
209 3-040-037-01 GUIDE (DISC)
210 3-040-040-03 ARM (ROLLER)
211 A-3274-698-A SERVO BOARD, COMPLETE
212 3-221-779-02 BRACKET (MOTOR)
213 3-040-034-01 SPRING (RA), TENSION
214 3-040-042-01 WASHER
215 3-043-880-01 RING (RA), RETAINING
216 3-044-206-11 SCREW, SPECIAL
217 1-685-337-11 LOAD SW BOARD
M903 A-3315-039-A MOTOR SUB ASSY, LO (LOADING)
#8 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
#9 7-628-253-00 SCREW, SPECIAL
#10 7-627-553-17 SCREW, PRECISION +P 2X2 TYPE3
