Sony CDX-M3DI - Floating Block Assy; Optical Pick-Up Block

16
CDX-M3DI/M1000TF

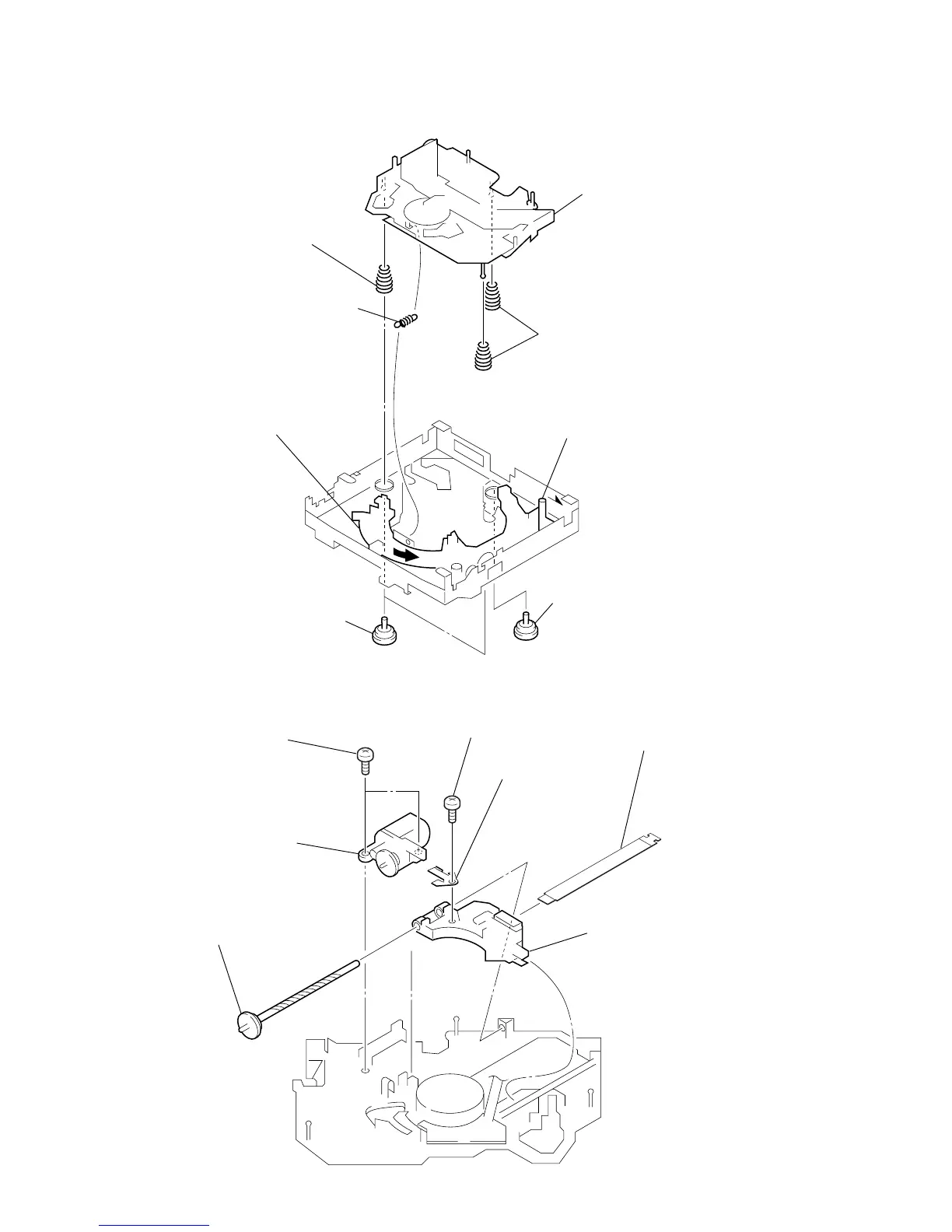

2-12. FLOATING BLOCK ASSY
2-13. OPTICAL PICK-UP BLOCK
3 P 2x3
1 P 2x3
2 sled motor assy (M902)
5 optical pick-up (KSS-721A)
7 PICK-UP FLEXIBLE board
4 plate spring (feed)
6 shaft (feed) assy
1 tension spring (KF1)
7 compression spring (FL)
8 compression spring (FL)
6 floating block assy
5 Turn loading ring in the
direction of the arrow.
4 Fit lever (D) in the direction of the arrow.
2 damper (T)
3 damper (T)
