Additional Information
49
GB
Main unit
Cassette compartment qg (29)
Disc compartment 7 (11)
DISPLAY qs (32)
Display window 6
DSGX 0 (30)
FUNCTION wf (10, 11, 13, 14,
23, 26, 29, 30, 31, 36)
MIC jack 4 (30)
MIC LEVEL 2 (30)
PHONES jack 5
POWER (on/off) 1 (9)
PROGRESSIVE qa (23)
Remote sensor 9
STANDBY indicator 3
TUNER/BAND wd (28)
TUNING +/– qf (28, 29)
VOLUME +/– qd (12, 15, 29)
Disc operation buttons
Z OPEN 8 (11)
m/M (rewind/fast forward)
qf (12)
l/L (go back/forward) qf
(12)
x (stop) wa (10, 12, 21, 30, 31,
36)
NX (play/pause) ws (11, 12, 36)
Tape operation button
xZ (stop/eject) qh (29, 30, 31)
X (pause) qj (29)
m/M (rewind/fast forward)
qk (29)
N (play) ql (29)
z (record)* w; (30, 31)
* You cannot press z alone.
When you press this button, N
is also pressed.

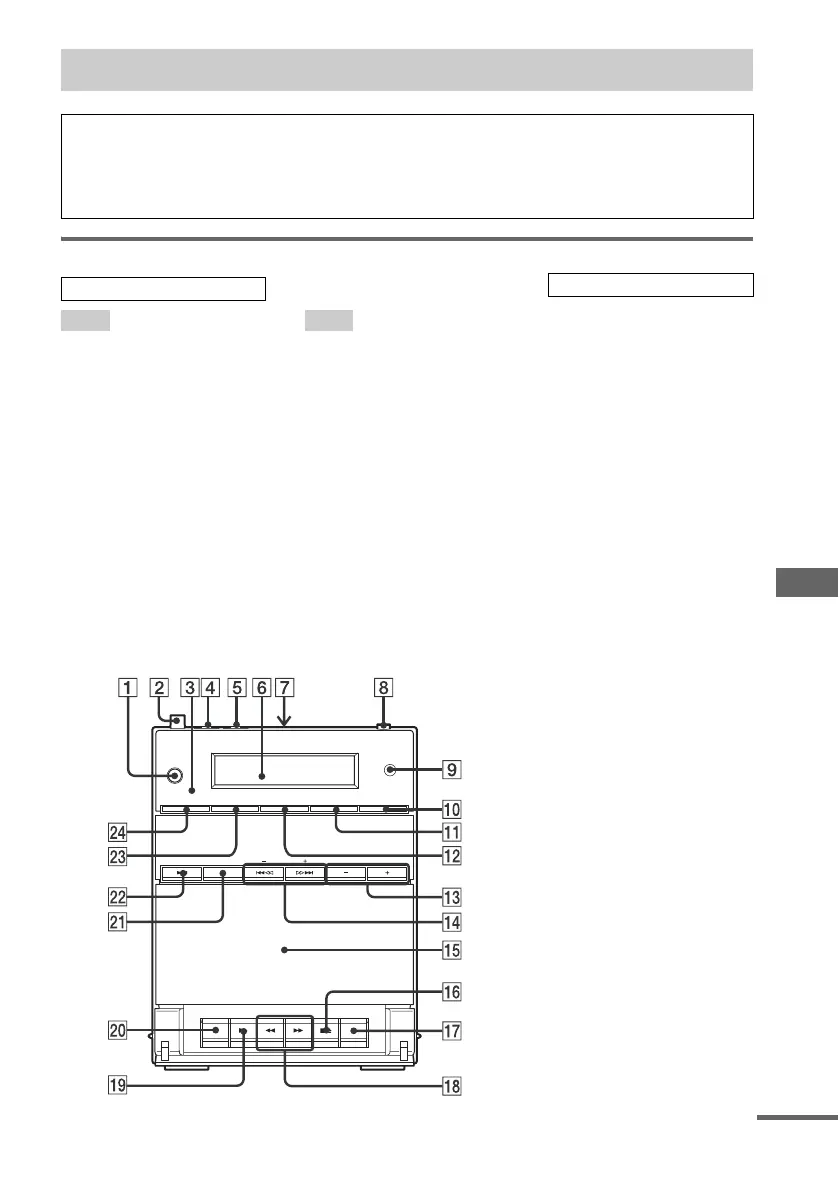

List of button locations and reference pages
How to use this page
Use this page to find the location of buttons and other
parts of the system that are mentioned in the text.
Illustration number
r
TUNER/BAND wd (28)
RR
Name of button/part Reference page
ALPHABETICAL ORDER
A – O P – Z
BUTTON DESCRIPTIONS
continued
