Sony CPD-E530 - A1 Board (C Block) Removal; A1 Board Removal

— 10 —
CPD-E530

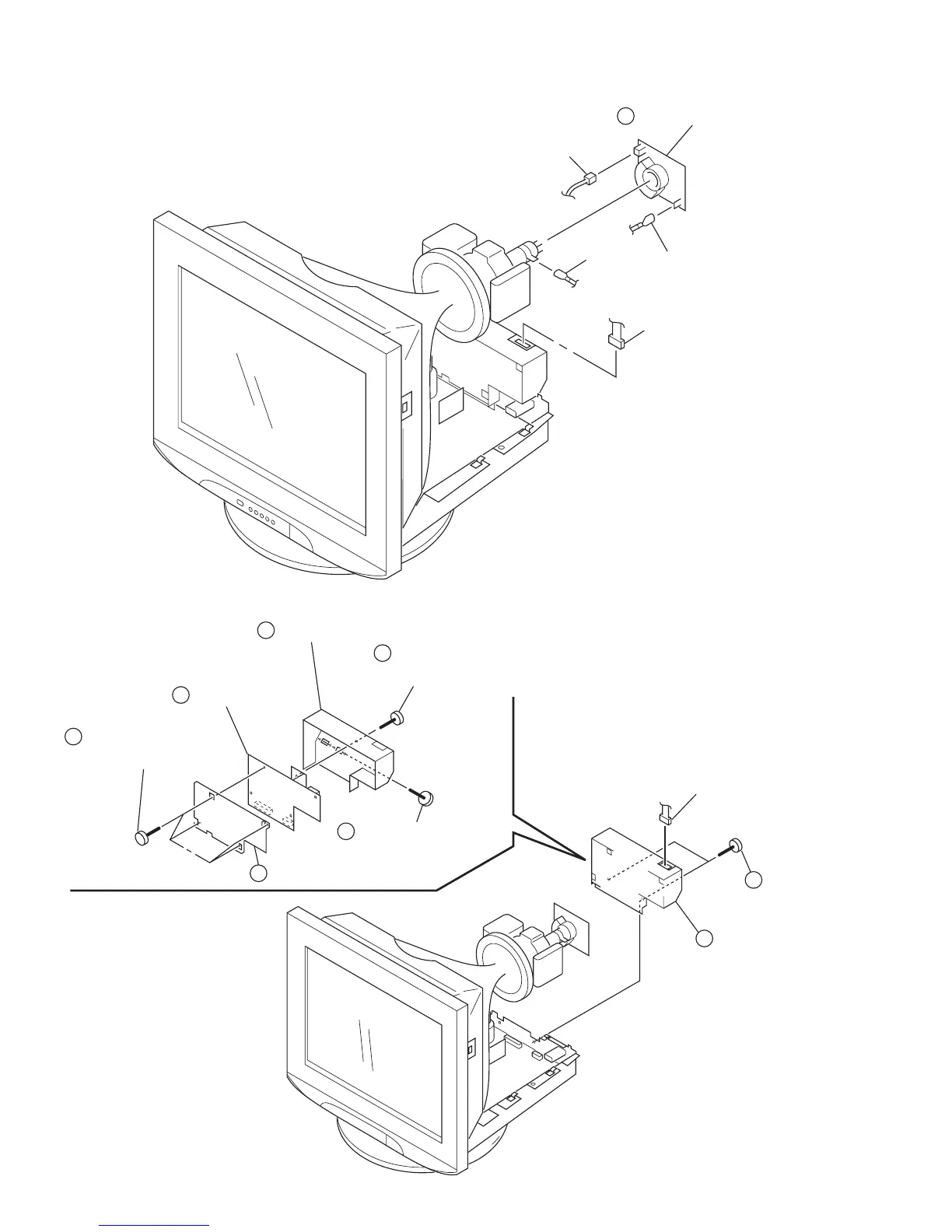

1-3. A1 BOARD (C BLOCK) REMOVAL
1
A1 board (C BLOCK)
CN315
CN318
GND
GND
1-4. A1 BOARD REMOVAL
1
Two screws
(+BVTP 3 x 8)
2
Video block assembly
3
Four screws
(+BVTP 3 x 8)
4
Video shield
5
Four screws (HEX)
6
Screw
(+BVTP 3 X 8)
7
Video case
8
A1 board
CN315
